29

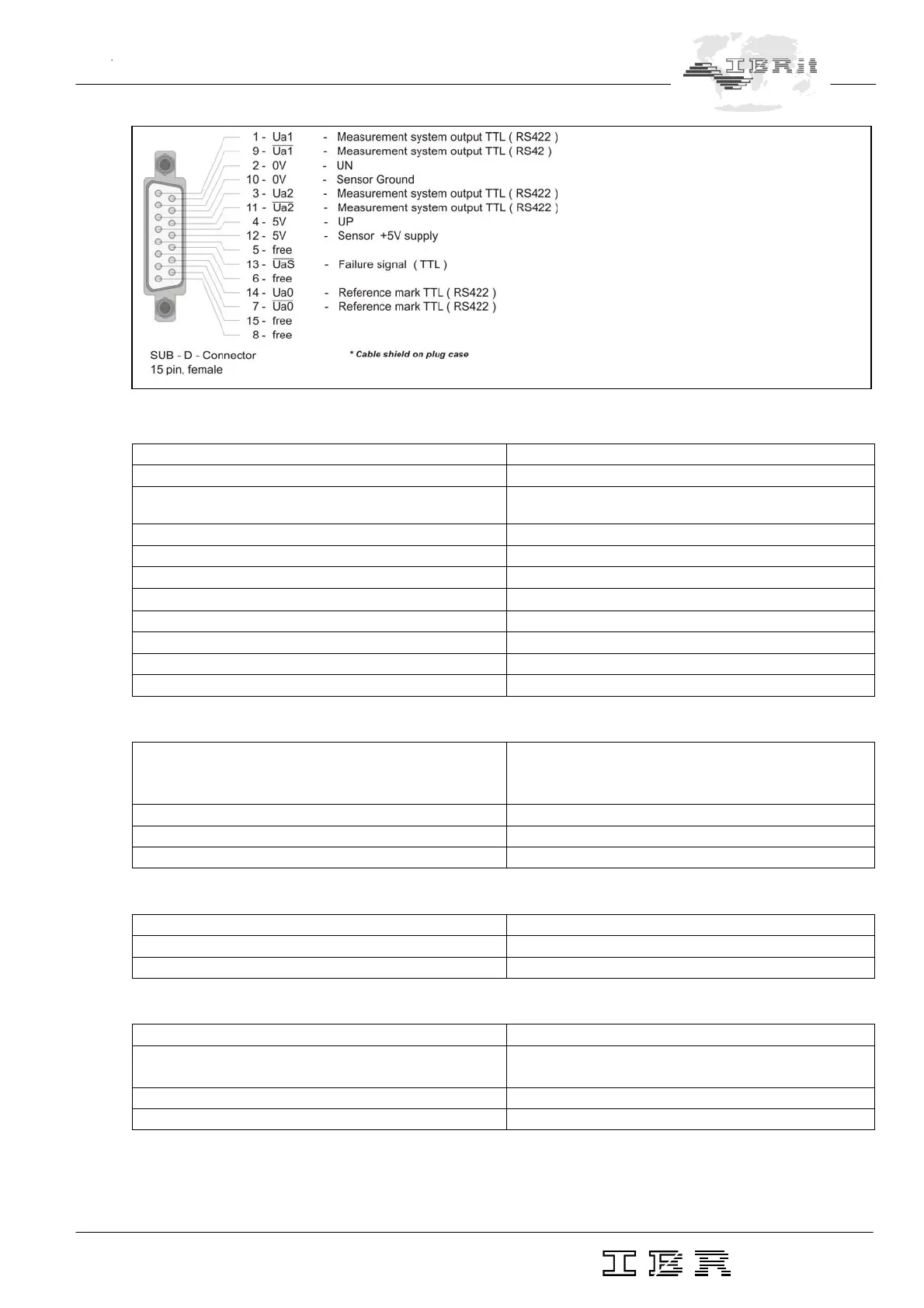

Instruction Manual IMBus
IMB-ae1 : ( Measuring modules for connection of pneumatic gauge heads )
Air pressure supply connection Quick connector for PU hose 8/6mm
Air pressure supply of the AE - FC1 4 - 8 bar / 60 - 120 psi
Air pressure supply of the IMB-ae1
( filtered air < 5µm, free from water and oil )
2,6…2,8 bar / 40 psi
Outlet of measuring air Coupling DN2,7
Connection of gauge head Nipple DN2,7 for PU hose 6/4 mm
Measuring principle Differential pressure measuring with Piezo sensors
Pneumatic measuring range
... ±80µm / ... ±0,003inch (depends on the gauge head)
Measuring rate 1800 Measuring values / sec / channel
Operation temperature range 0 ... 45 °C
Storage temperature range -20 ... 80 °C
Type of protection IP65 (CEI / IEC 529)
IMB-ai1/2/4/8 : ( Measuring modules for connection of analogue voltages and currents )
Resolution / measuring range 16 Bit
+/- 10,0 V on 0,5 mV ( Standard type )
+/- 2,0 V on 0,1 mV
Measuring rate 1800 Measuring values / sec / channel
Operation temperature range 0 ... 45 °C
Storage temperature range -20 ... 80 °C
IMB-mi2/4/8 : ( Interface modules for gauges with Mitutoyo Digimatic output )
Connection Gauges with Mitutoyo Digimatic output
Operation temperature range 0 ... 45 °C
Storage temperature range -20 ... 80 °C
IMB-sm1/2/4 : ( Universal serial interface module )
Connection Gauges with RS232 output
Universal configurable By loading gauge drivers from IBR library
( Standard : Opto-RS232 )
Operation temperature range 0 ... 45 °C
Storage temperature range -20 ... 80 °C
