6.3 IMB-co8
1. Short description :
- The IMBus input and output modules are all galvanically ( 2kV ) separated.
- The outputs are ESD proofed, short circuit proofed and contain a high driver power.
- Each in-/output contains a state LED.
- The connections are done by plugable terminal strips.
2. Technical data :
Electrical characteristics “Output”
Operating voltage 12 V ... 32 V DC
Max. output current 1 A per channel
On – state resistance RON 200 mΩ
Current limitation 4 A

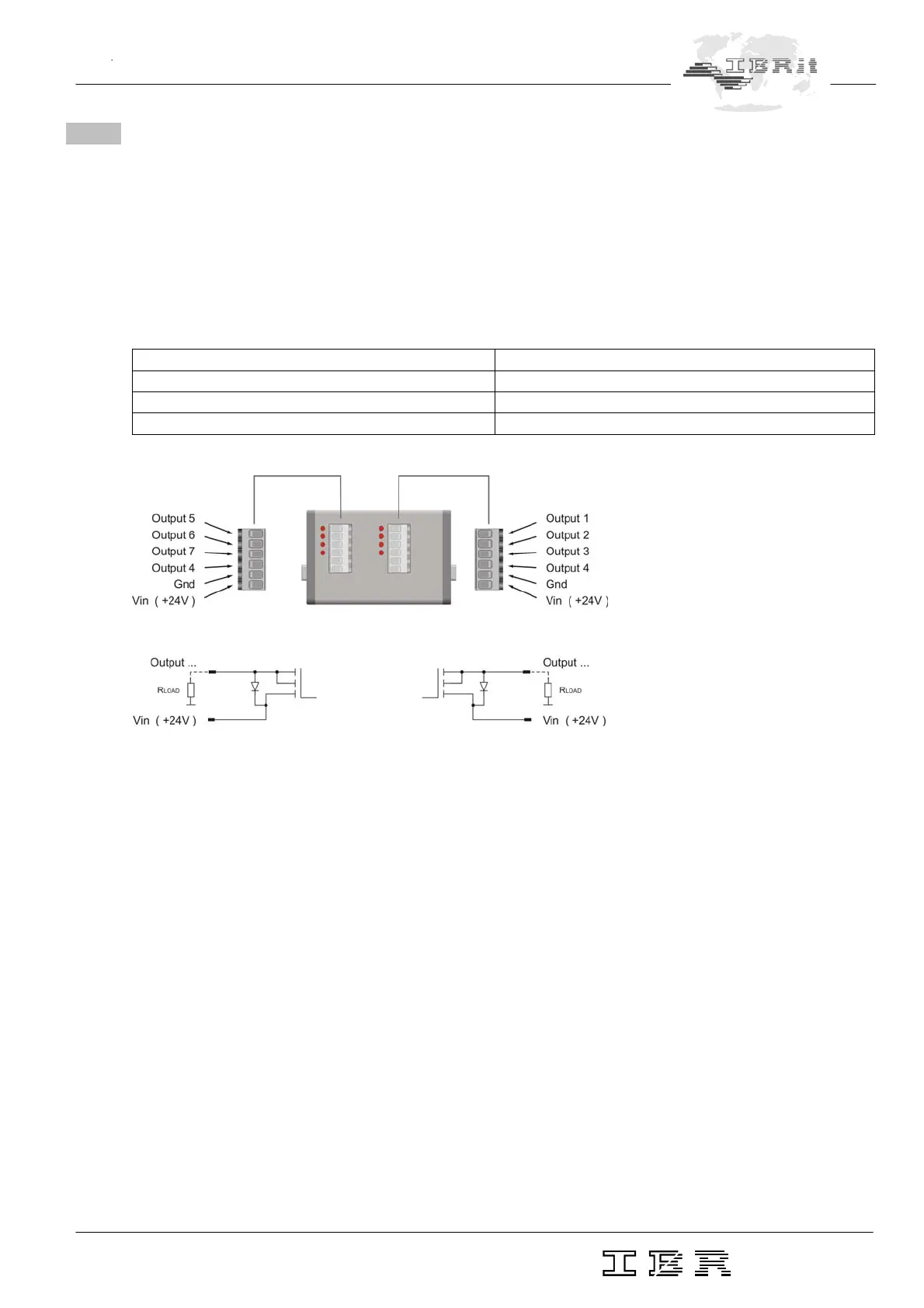

3. Wiring :
