3. General information for connection of IMB-lan modules to a network
a) On default the IMB-lan module waits for the IP address setting by a DHCP Server. If no DHCP
Server is available, then the IMB-lan module automatically takes after 20 sec an IP-Address out
of the address range 169.254.x.x. (
Subnet mask : 255.255.0.0 )
b) The IMB-lan modules require sometimes up to 30 sec after power-on, till they are available in the
company network.
c) The IMB-lan modules use for the communication 3 different TCP-Ports :
( These TCP-Ports must be unlocked in the Firewall )
TCP-Port Function
0x2711 ( 10001 ) Communication with IMBus-Modules ( Measuring data, … )
0x77FE ( 30718 ) Detection of connected IMB-lan Modules in network
0x77F0 ( 30704 ) IMBus Control
4. Configuration of IMB-lan modules by TelNet

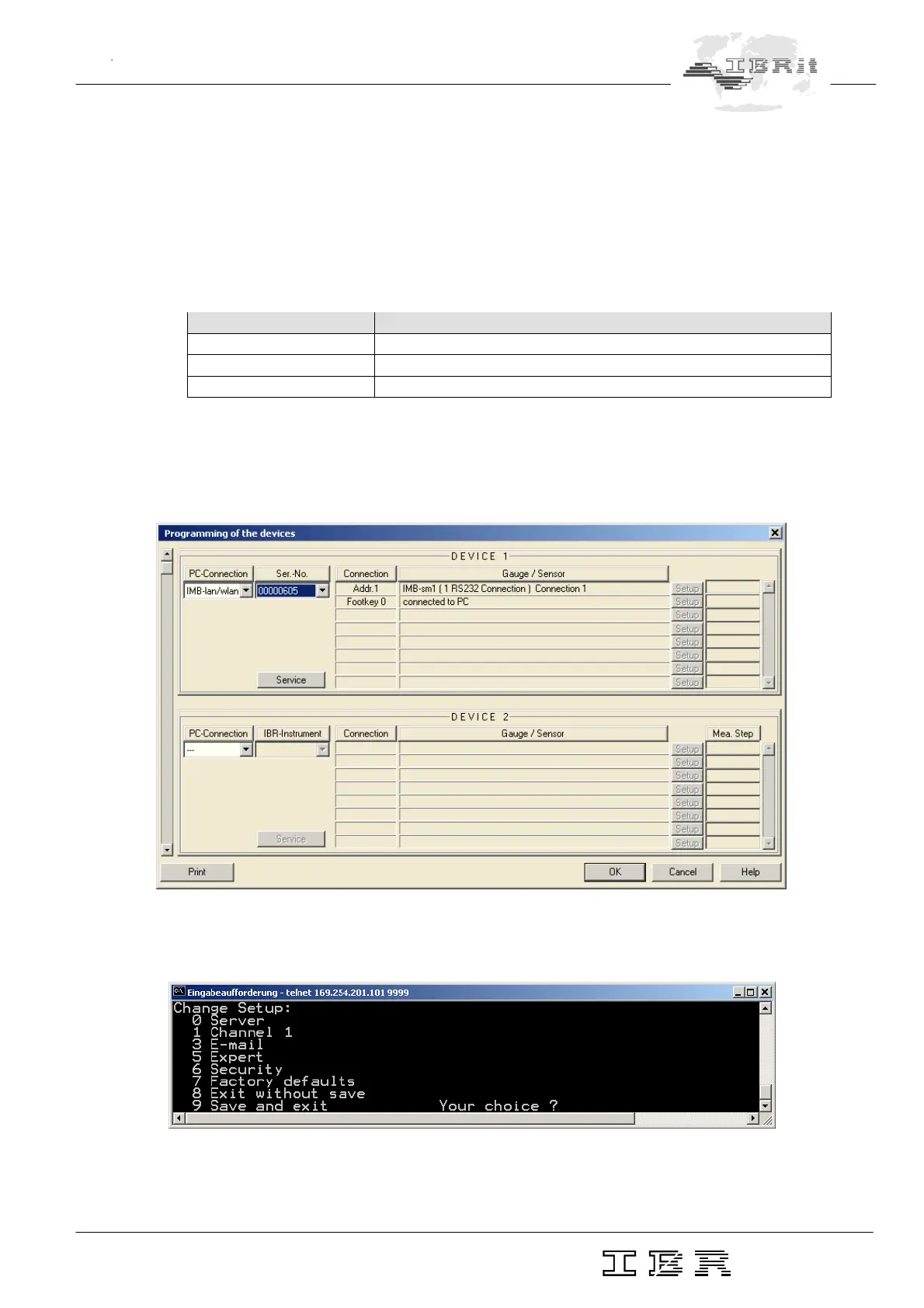

- Open the Setup-Window of IMB_Test programme
- Selection of IMB-lan/wlan as PC-Connection and after that selection of the Serial number of
the IMB-lan module, which shall be programmed :
- Press Button Service
- Press Button Prog. IMB-lan/wlan ( Telnet )
- By Telnet the programming of the IMB-lan modules occurs :
To Next Page
