Instruction Manual IMBus
Country = US
Channel = 11
WEP = deactivated
Data rate = 54 Mbps
d) The IMB-wla modules use for the communication 3 different TCP-Ports :
( These TCP-Ports must be unlocked in the Firewall )
TCP-Port Function
0x2711 ( 10001 ) Communication with IMBus-Modules ( Measuring data, … )
0x77FE ( 30718 ) Detection of connected IMB-wla modules in network
0x77F0 ( 30704 ) IMBus Control
4. Configuration of IMB-wla modules by TelNet
- Open the Setup-Window of IMB_Test programme
- Selection of IMB-lan/wlan as PC-Connection and after that selection of the Serial number of
the IMB-wla module, which shall be programmed ( see 4.4 )
- Press Button Service
- Press Button Prog. IMB-lan/wlan ( Telnet )
- By Telnet the programming of the IMB-wla modules occurs :

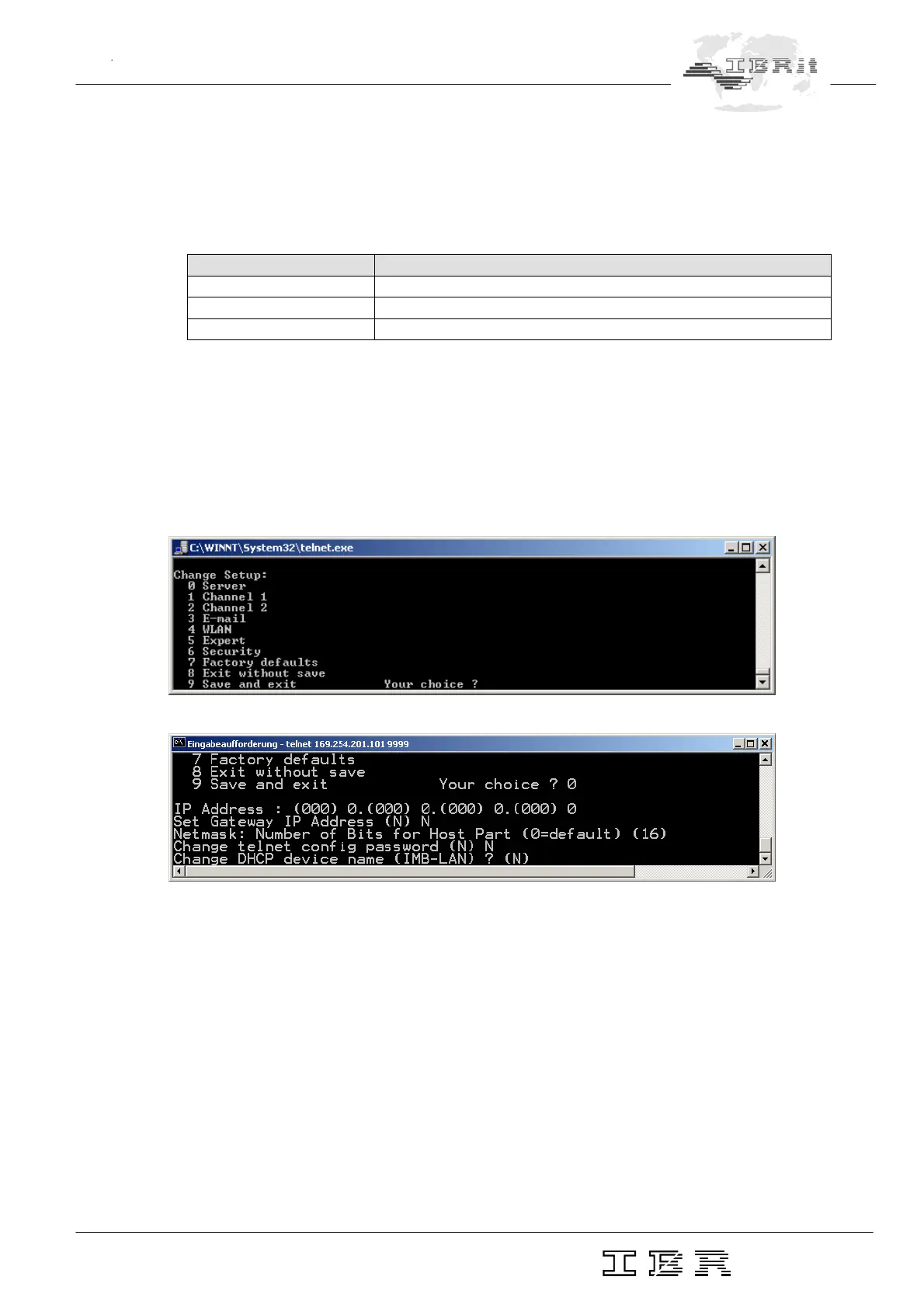

- Telnet Menu „Server“ :
IP-Address :
IP-Address of the IMB-wla module ( 0.0.0.0 = Address setting by DHCP )
Set Gateway IP Address :
IP-Address of the router, which serves as gateway for IMB-wla module
This IP-Address must contain an address of the local network.
Netmask :
8 = 255.0.0.0, 16 = 255.255.0.0, 24 = 255.255.255.0
Change telnet config password :
4 Byte TelNet password
Change DHCP device name:
Assignment of a DHCP name to the IMB-wla module
To Next Page
