iCharger DX8 - Device Introduction; Parts & Interface Introduction; Standard Accessories

DX8
Dual Balance Charger/Discharger/DC Power
- 6 -
Device Introduction

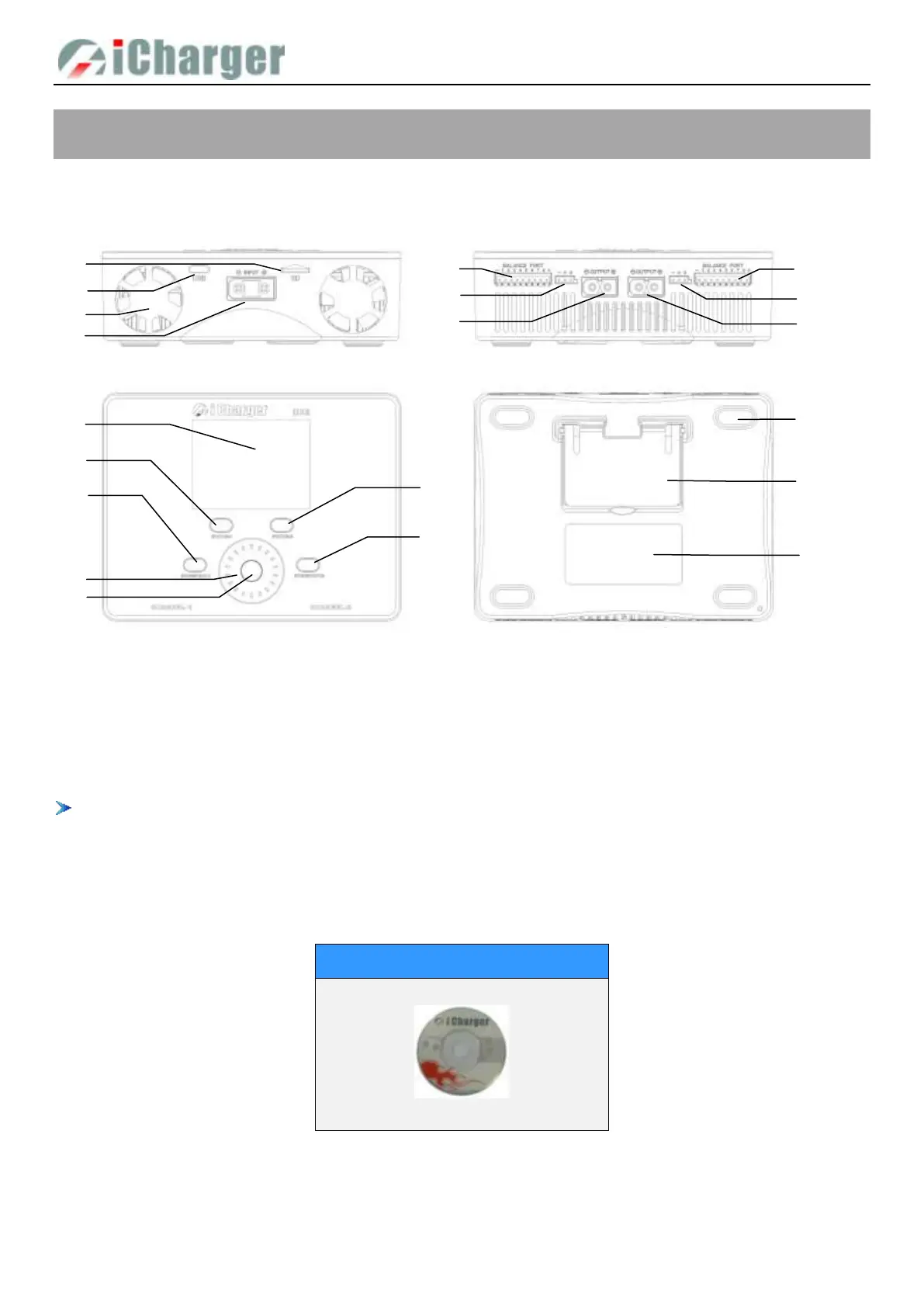

Parts & Interface Introduction
01)CH1 Balance port
02) CH-1 Multi-function port
03) CH-1 Output port
04) CH2 Balance port
05)CH-2 Multi-function port
06)CH-2 Output port
07) Power input port
08)Fans
09) USB Type-C & PD
10) SD card slot
11) LCD
12) STATUS-1
13) STOP/START-1
14) STATUS-2
15) STOP/START-2
16) Round button
17)Rotary switch
18) Holder
19) Anti slip pad
20) Name plate
There are 3 functions for multifunctional ports: a) Connect external temperature sensor (optional) to monitor batteries
temperature; b)Output for servo testing; c) Input port for pulse measurement
Standard Accessories
User’s manual & Software
CD-ROM
08
10
07
09
11
12
13
15
16
14
15
17
19
18
01
02
03
06
05
04
