Icom IC-7100

1
PANEL DESCRIPTION
1-8
o CLOCK READOUT
 Shows the current time.
 •UTCtimeorlocaltimecanbeselected.
!0 SPLIT ICON (FM sec. 6)
“ ” appears when the Split function is turned
ON.
!1 LOCK ICON (FM sec. 5)
“ ” appears when the Lock function is activated.
1
⁄4 TUNING DIAL SPEED ICON (p. 3-10)
(Mode: SSB-D/CW/RTTY)
“ ” appears when the tuning dial speed is set so
that one rotation is equal to
1
⁄4 of the normal rota-
tion.
 •Thisfunctionisselectableonlywhenthequicktuning
function is turned OFF.
!2 FREQUENCY READOUTS
Displays the operating frequency. ➥
Touch the MHz digits to enter the Band selection ➥
screen.
Touch the MHz digits for 1 second to turn the 1 ➥
MHz quick tuning mode ON or OFF.
Touch the kHz digits to turn the preset kHz quick ➥
tuning mode ON or OFF.
Touch the kHz digits for 1 second to enter the Tun- ➥
ing step selection screen.
Touch the Hz digits to for 1 second to toggle be- ➥
tween 10 Hz and 1 Hz steps.
!3 VFO/MEMORY ICONS (p. 3-4)
“VFOA” or “VFOB” appears whether VFO A or ➥
VFO B is selected.
“MEMO” appears when the memory mode is se- ➥
lected.
!4 MEMORY CHANNEL READOUT (FM sec. 11)
Shows the selected memory channel, scan edge ➥
channel or Call channel.
  •Memorybankindicator(AtoE)appearstotheleftof
memory channel.
Touch to toggle between the VFO and Memory ➥
modes.
!5 SELECT MEMORY CHANNEL ICON
“ ” appears when the selected memory channel is
set as a select memory channel. ( FM sec. 12 )
!6 INFORMATION READOUT
Displays the transmit frequency of the Split opera-
tion, descriptions of the memory channel or Re-
ceived Call sign in the DV mode, and so on.
!7 FUNCTION DISPLAY (p. 1-10)
Shows the function of the Touch keys.
 •Push
MENU
to change the set of functions assigned to
the touch keys.
 •TogglesthefunctiondisplaymenubetweenM-1,M-2and
M-3 menus or D-1 and D-2 menus.
!8 MULTI-FUNCTION METER INDICATION
➥ Displays the signal strength while receiving.
➥ Displays the relative output power, SWR, ALC or
compression levels while transmitting.
➥ When the Meter Peak Hold function is ON, the
peak level of a received signal strength or the
output power is displayed for approximately 0.5
seconds.
➥ Touch to select the RF power, SWR, ALC or Com-
pression meter.
➥ Touch for 1 second to display the Multi-function
meter.

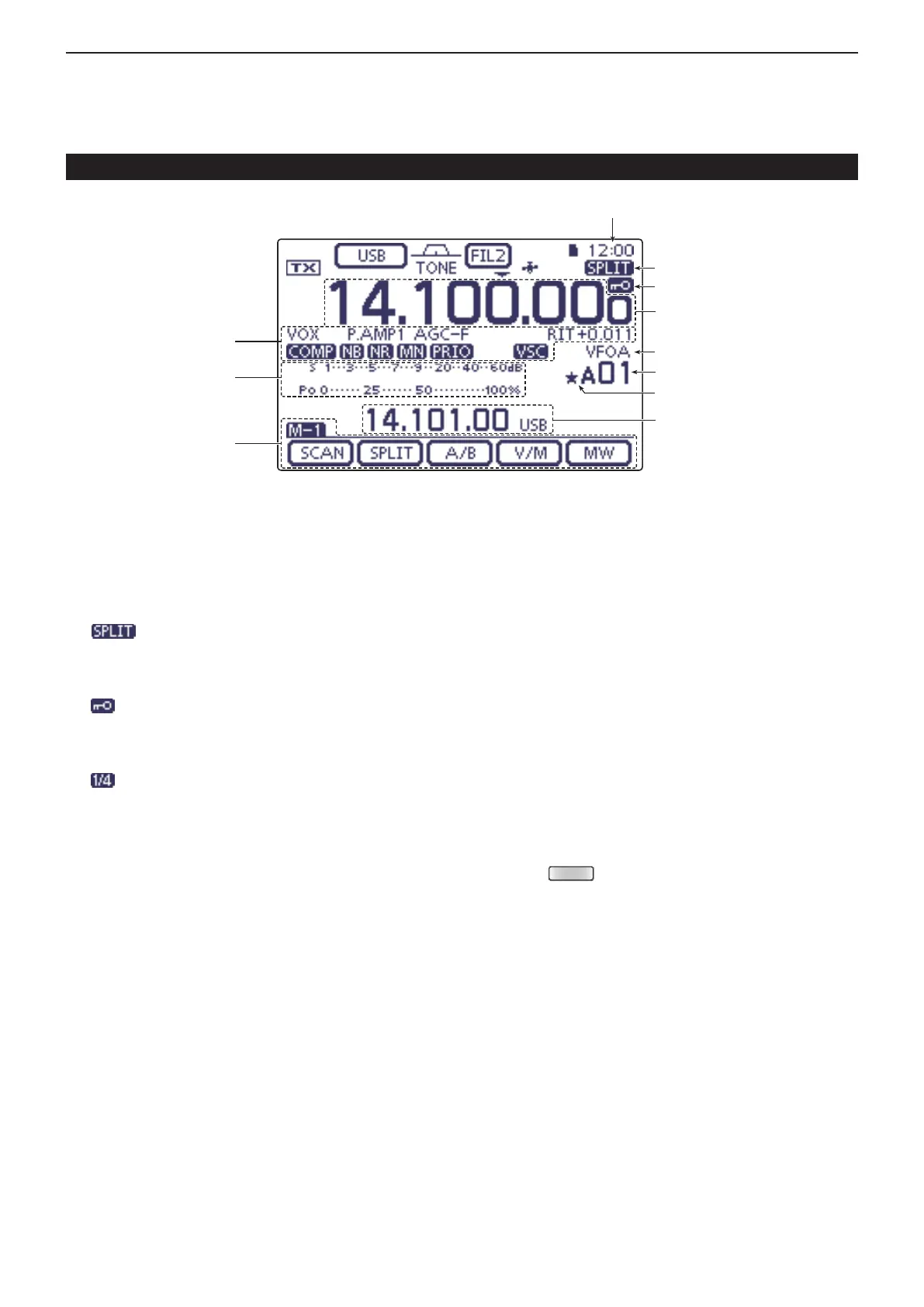

Controller — Function display (Continued)
o
!0
!1
!3
!4
!5
!6
!2
!7
!8
!9
