Icom IC-7800 - Page 394

To Next Page

To Previous Page

4 - 21

L505

C576

L512

R538

R69

R93

Maximum output

power adjustment

Maximum output power adjustment

Residual AM adjustment

Tx total gain adjustment

Default adjustment

R79

High power adjustment (50M)

R81

High power adjustment (HF)

R82

AM carrier power adjustment

CP82

Default adjustment check point

Id-APC adjustment

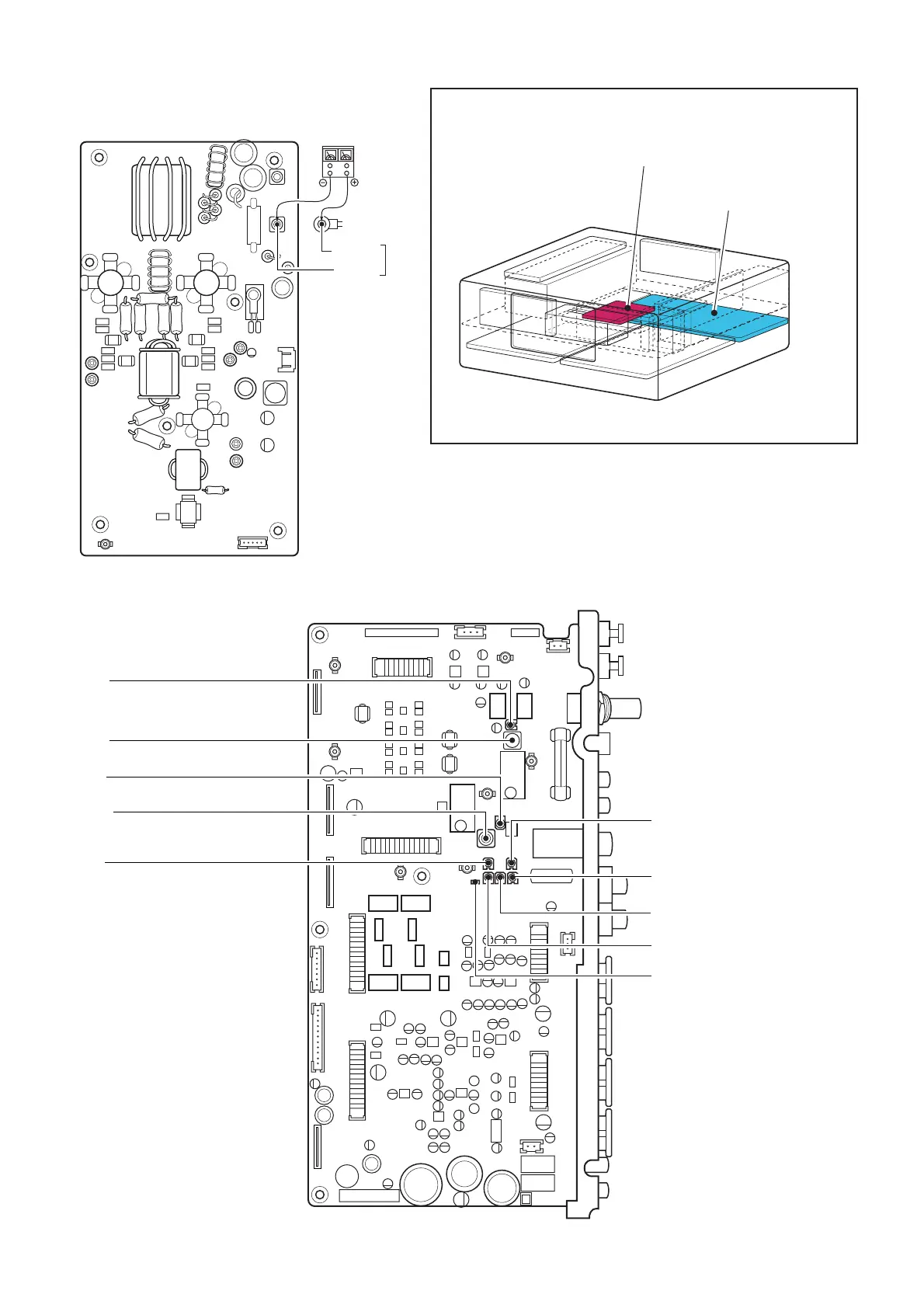

• MAIN UNIT TOP VIEW

PA200W board (upper side)

Front panel

MAIN unit (lower side)

• LOCATION

Id-APC

check point

EP501

DC ammeter

• PA200W BOARD TOP VIEW
