Icom IC-M602 Instruction Manual

75
13
HM-127 REMOTE-CONTROL MICROPHONE
■ Set mode programming
Set mode is used to change the condition of the transceiver’s
functions and the microphone’s own functions:
Transceiver’s functions—
scan type (normal or priority), scan resume timer, weather
alert, dualwatch/tri-watch of COMMANDMIC, transceiver’s
beep tone, internal speaker (transceiver), LCD contrast
(transceiver), RF attenuation level, foghorn frequency, scram-
bler type and scrambler code.
Microphone’s own functions—
beep tone function (microphone) and LCD contrast (micro-
phone).
In this section, instructions are for the microphone’s own func-
tions only. Refer to pgs. 44–47 for the setting of the other
functions. (Some functions cannot be selected from the mi-
crophone.)
DD
Entering set mode
q Turn power OFF.
w While pushing , turn power ON.
• After a beep emission, a set mode item (in the channel name indi-
cator and the condition in the channel number readout) is displayed.
e Push [16•9] to select the desired item, if necessary.
r Push [
YY
]/[
ZZ
] to select the desired condition of the item.
t Turn power OFF, then ON to exit set mode.

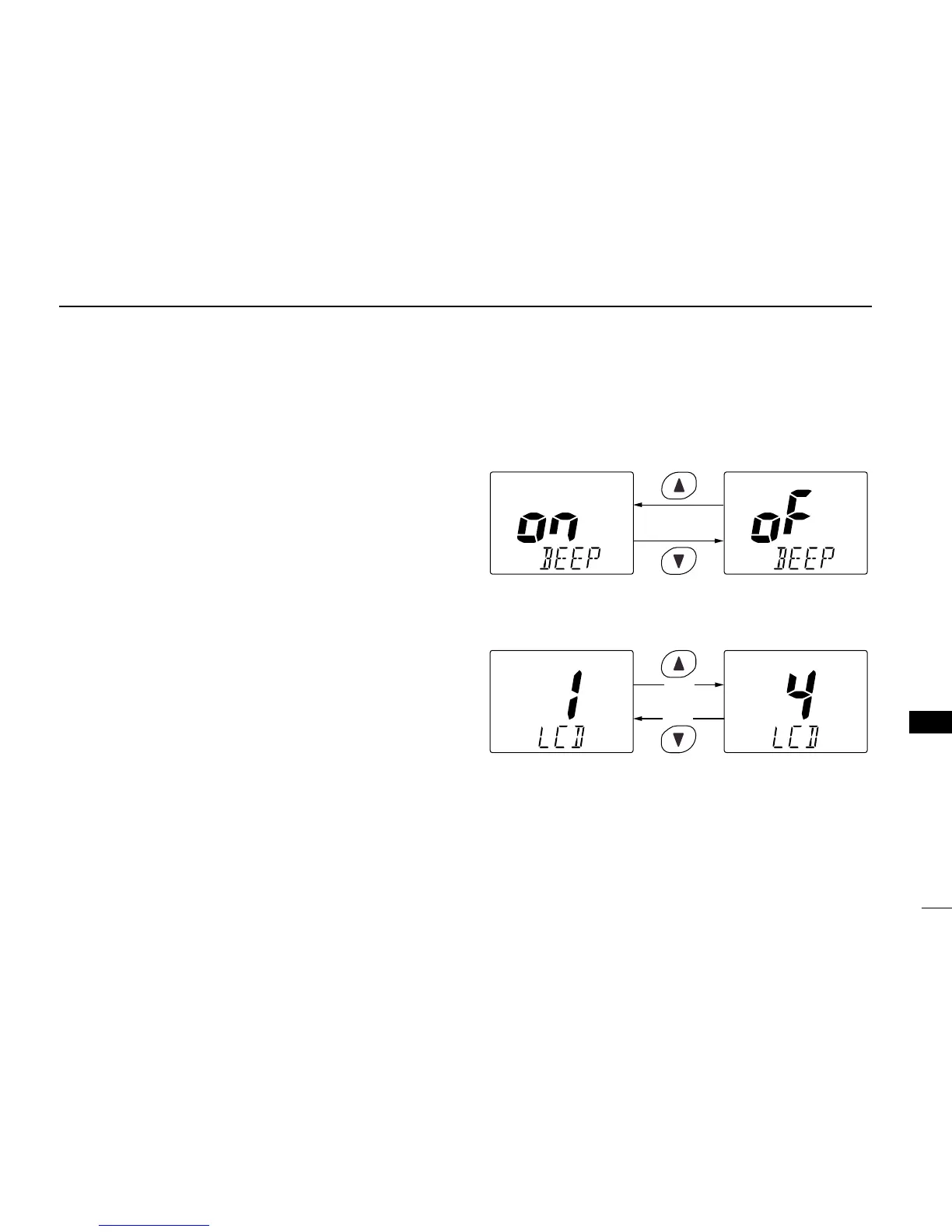

• Beep tone “BEEP”
➥ Push [
YY
] to turn ON, [
ZZ
] to turn OFF the beep output.
• LCD contrast “LCD CONTRAST”
➥ Push [
YY
]/[
ZZ
] to adjust to a suitable LCD contrast.
Push
• •
• •
Push
13

Icom IC-M602 Specifications

General

Type	Marine VHF Transceiver
Frequency Range	156.000 - 163.425 MHz
Antenna Impedance	50Ω
Weight	1.5 kg
Waterproof Rating	IPX7
Modulation System	FM
Sensitivity	0.25 μV (12 dB SINAD)
Intermodulation Rejection Ratio	70 dB
Spurious Response Rejection Ratio	70 dB
Audio Output Impedance	4Ω
Output Power	25W / 1W
Power Supply	13.8 V DC
Operating Temperature Range	-15°C to +55°C
Adjacent Channel Power	70 dB
FM Hum and Noise	40 dB
Squelch Sensitivity	0.25 μV
Usable Channels	USA, Canada, International
Type of Emission	16K0G3E (FM), 16K0G2B (DSC)
Current Drain	5.5 A (at 25 W), 1.5 A (at 1 W)
Spurious Emissions	-70 dBc (High), -60 dBc (Low)
