CONTAINERIZED KITCHEN (CK) 0005 00
DESCRIPTION OF OPERATOR CONTROLS AND INDICATORS
0005 00-7
TOTAL HOURS
Run
Warm Up
Fueling/Fuel
Low Fuel
V ol t a ge
Service
START
Power
STOP
Fuel
OPERATION
1. Press POWER
button.
2. Turn burner control to high
(Start) position.
3. Press START
bu t t on
4. When run indicator light is on, turn
burner control to desired setting.
5. In case of Automatic shut down
see operating instructions.
SHUTDOWN
1. Press STOP
button.
2. Press POWER
button.
HIGH
(Start)
LOW
SET UP
For manual fueling - see operating
instructions.
1. Install MBU in appliance.
2. Connect 24 Volt DC power cable
to rear of MBU.
3. Connect fuel hose to front of MBU
and fuel supply.
4. Press POWER
button.
5. Press FUEL
button.
6. When fuel indicator light is steady
green - Disconnect hose.
7. Press POWER
button.
WARNING
CARBON MONOXIDE EMISSIONS
EN SUR E AD EQ UATE V EN TILATION
DURING OPERATION.
ALLOW EQUIPM EN T TO C OOL
BEFORE HANDLING
2 PERSON LIFT - 68 lb M AX
1
2
3
4
5
6
7
8
10
9
11
12
Teleflex
Canada Ltd.
Manufactured by
MBU

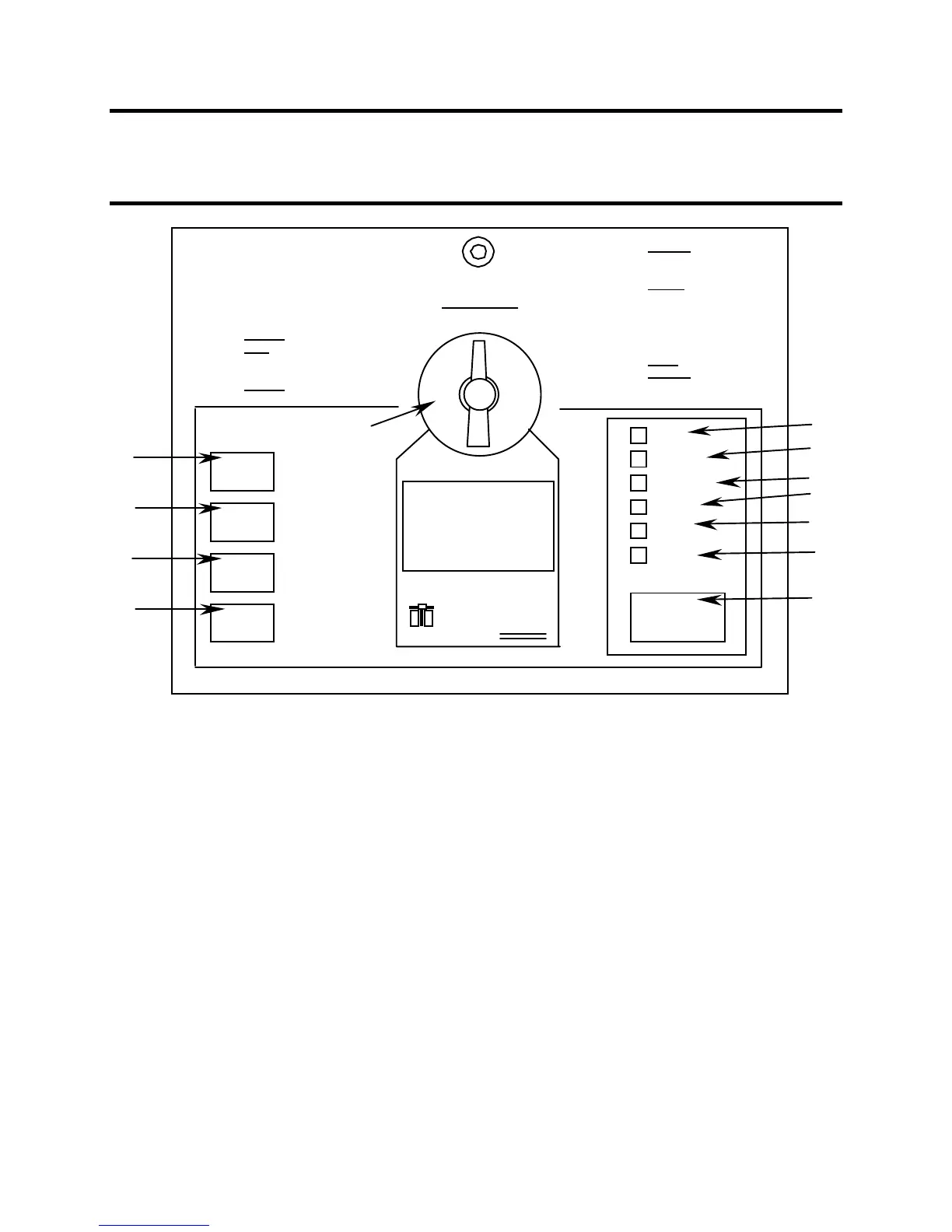

Figure 6. MBU Control Panel.
Appliance Control Box
The appliance control box, Figure 7, is located in the food preparation area. It is stored for
packout, and is hung from one of the fabric arch supports for operation. It houses the controls
for the hand sink assembly, oven fan, and tray pack heater fan. The controls include:
• WATER PUMP switch (1): ON/OFF toggle switch for the hand sink water pump.
• Circuit breakers (2): Pop out on overload. Push to reset.
• HEATER FAN switch (3): ON/OFF toggle switch for the tray pack heater fan.
• OVEN FAN switch (4): ON/OFF toggle switch for the oven fan.
• WATER HEATER switch (5): ON/OFF toggle switch for the hand sink water heater.
• Receptacles (6): Electrical connections for the appliances. Each appliance
connection corresponds to the switch above it.
