3 - 1

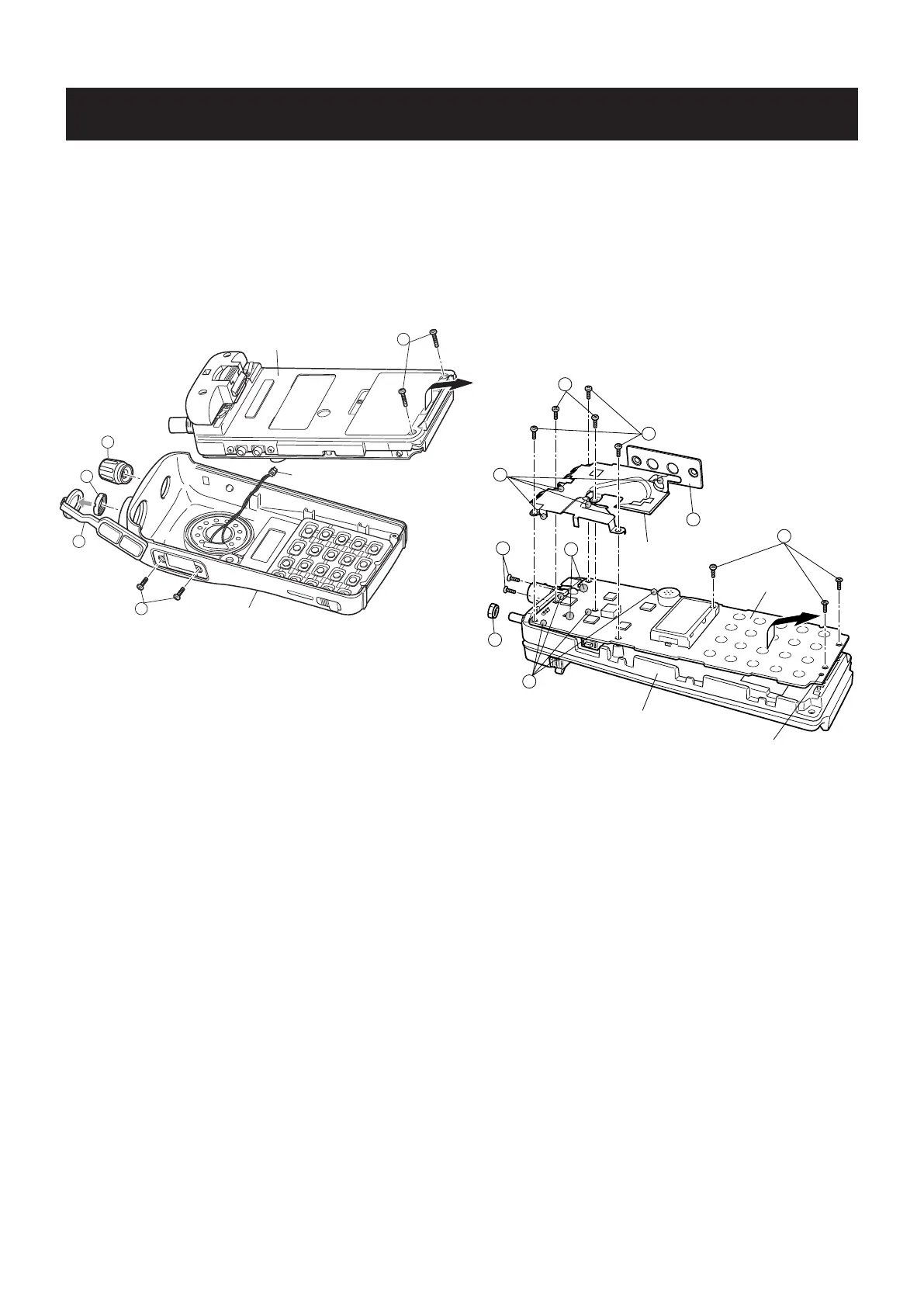

SECTION 3 DISASSEMBLY INSTRUCTIONS
1. Removing the chassis panel
q Remove the knob
A
and jack cap
B
.
w Unscrew 1 nut C.
e Unscrew 2 screws D (2 × 10 mm, black) and 2 screws E
(2
× 4 mm, black) from the chassis.
r Unplug the speaker connector (J6).
t Take off the chassis in the direction of the arrow.
2. Removing the MAIN unit.
q Remove the Jack seal F.
w Unsolder 4 points
G of the shield cover.
e Unscrew 1 nut H and 2 screws I (2 × 4 mm, black).
r Unscrew 2 screws J (2 × 4 mm, black) and 3 screws K
(2 × 4 mm, silver) and remove the shield cover.
t Unsolder 2 points
L.
y Unscrew 3 screws M (2 × 4 mm, silver).
u Take off the MAIN unit in the direction of the arrow.
To Next Page
