icoms I-SAFE - Solar Regulator

14
1. Insert the battery in the slot, as for the mobile kit, and switch it on.
2. Connect the solar panel above the service box (Figure 3, p. 10, mark nr 8).
Please first switch the battery on, before connecting the solar panel.
If you prefer using your own solar panel, the female connector is available as an option (mark 23).

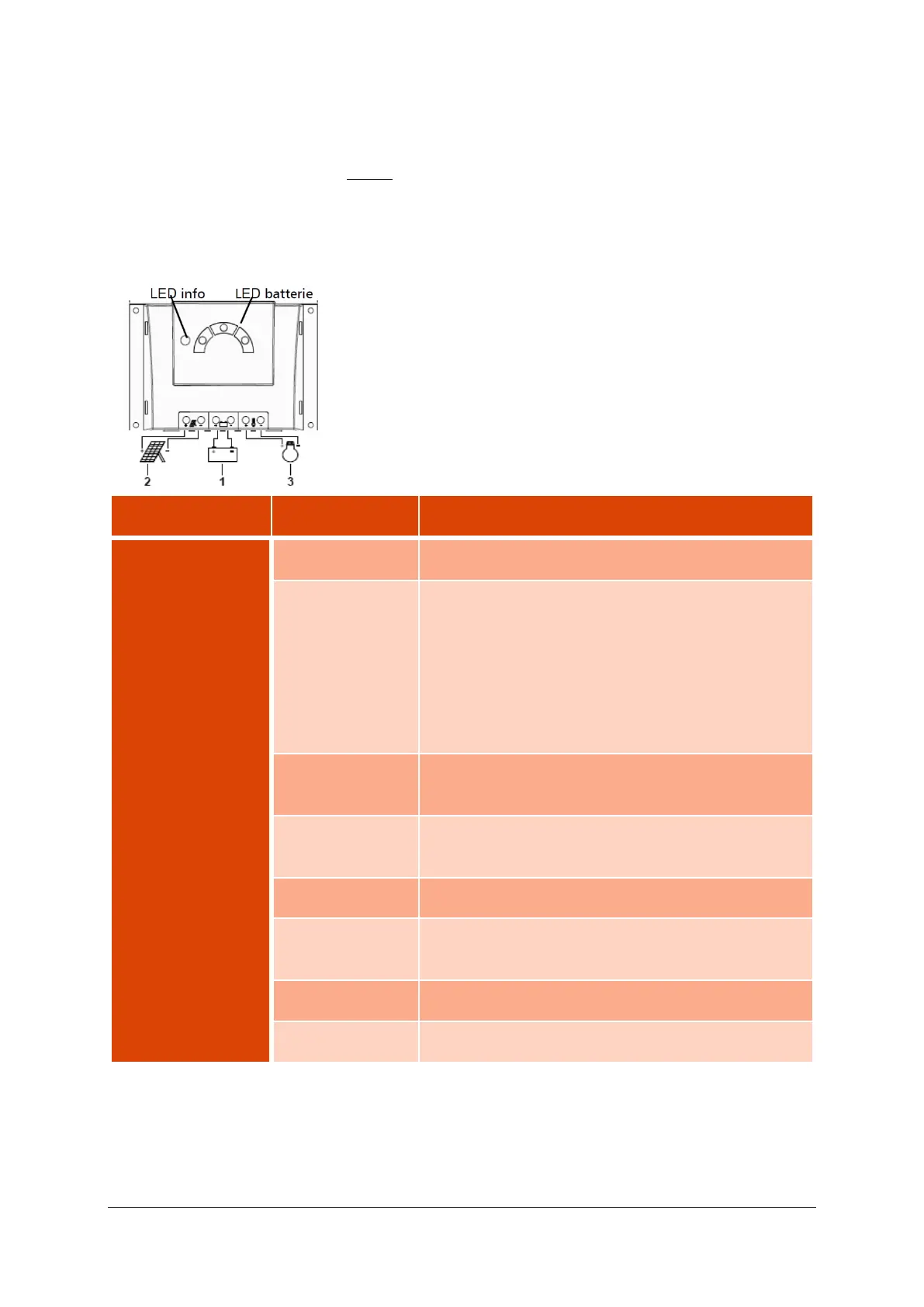

3.4.2.2 Solar regulator
The solar regulator is mounted in the service box. Different LEDs indicate the state of the material:
LED
State
Meaning
LED info
Switched on green
Normal operation
Flashing slowly
red*
System fault:
- Too high charging current
- Overload/short circuit
- Overheated
Together with red LED: too low battery voltage
Together with green LED: too high battery voltage
Battery red LED
Flashing quickly*
Battery empty, low voltage disconnection pre-warning,
loads still on.
Flashing slowly*
Deep discharge protection active (LVD – low voltage
detection) – loads disconnected
Battery yellow LED
Switched on
Battery weak – loads are on.
Flashing slowly
yellow*
LVD reconnection setpoint has not yet been reached –
loads still disconnected
Battery green LED
Switched on
Battery OK
Flashing quickly*
Battery fully charged – charge regulation active
* Flashing slowly: 0.4 Hz or four times in 10 second; flashing quickly: 3 Hz ; or three times per one
second.
