1-2 GENERAL INFORMATION / ILLUSTRATIONS
ICON A5-B / PILOT’S OPERATING HANDBOOK CHANGE A1
CHAPTER 1
1.2 ILLUSTRATIONS

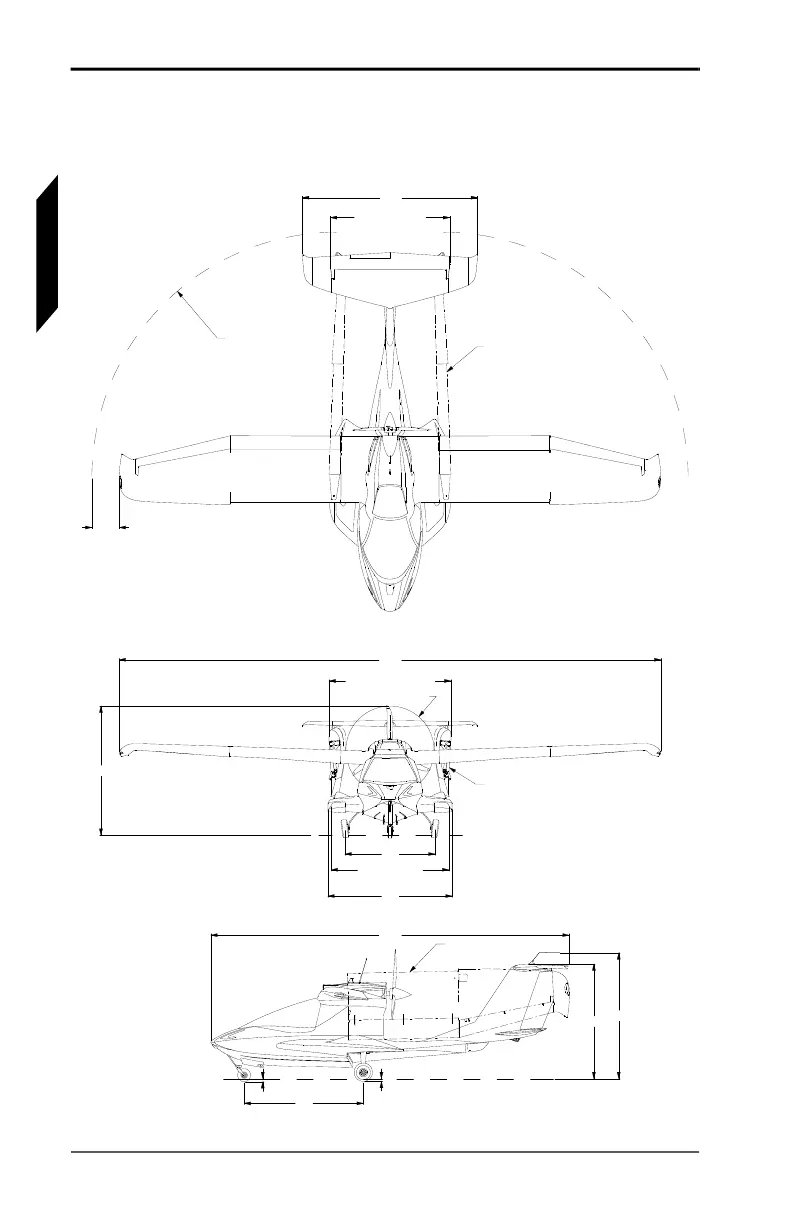

FIGURE 1-1
AIRCRAFT 3-VIEW DRAWING
1.8' WING FOLD
EXTENSION
7.7' WITH TAIL
TIPS REMOVED
11.2'
FOLDED WING
CONFIGURATION
R15.7'
WING FOLD AREA
FOLDED WING
CONFIGURATION
Ø68"
7.8' WINGS FOLDED
34.8'
5.8'
7.5' SEAWING
TIP REMOVED
8.0'
GROUND DATUM
8.3'
7.3'
8.1'
7.7'
2.3"
2"
GROUND DATUM
23.0'
FOLDED WING
CONFIGURATION
