To release the parking brake, move the lever to the “OFF” posi-
tion.
CAUTION: Never set the parking brake in flight. Before
landing, always check that the parking brake
has not been inadvertently set.
7.5 INSTRUMENT PANELS
7.5.1 OVERHEAD CONSOLE

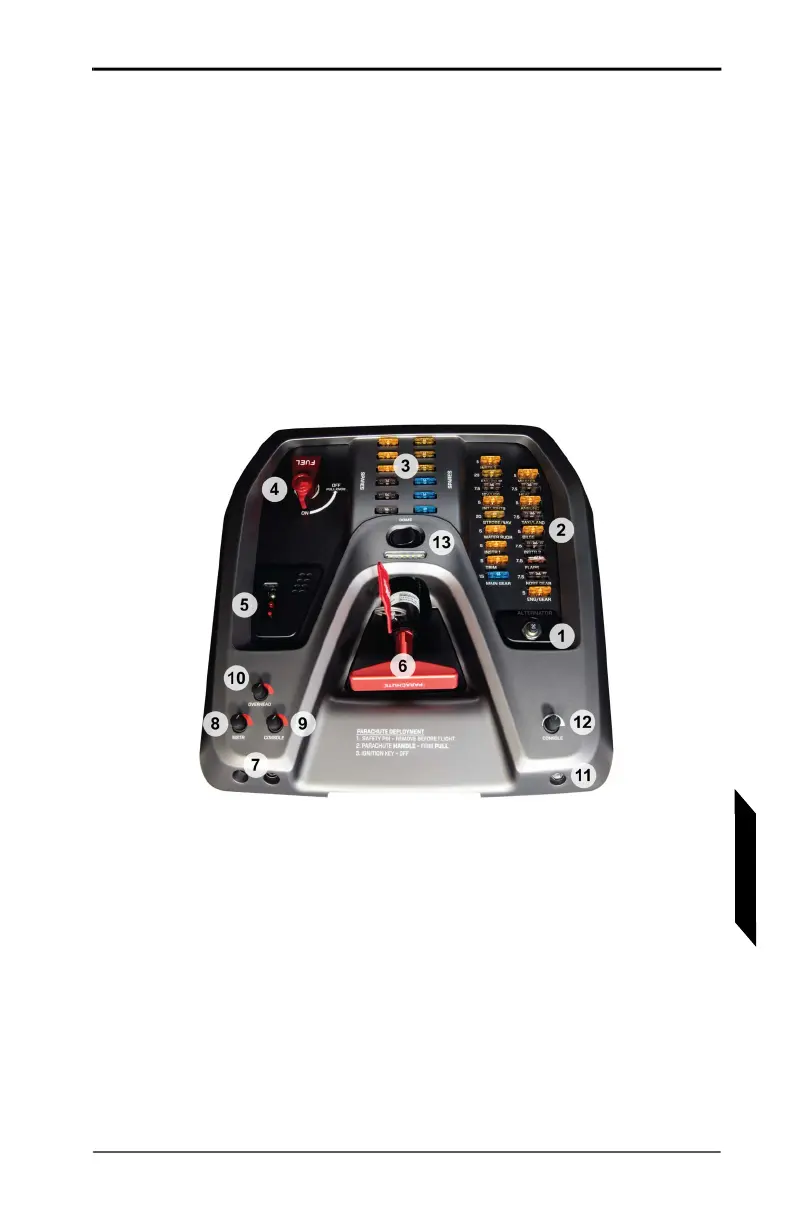

FIGURE 7-1
OVERHEAD CONSOLE
Fuse Panel and Spare Fuses
The circuit protection system is comprised of eighteen fuses,
one for each system, and a 30 A, manually reset circuit breaker
(1). The fuse panel (2) contains the operational fuses for the
electrical systems on the aircraft. The spare fuse area (3)
contains readily accessible spare fuses for use as needed.
There are four fuse ratings: 5 A, 7.5 A, 15 A and 20 A. A
minimum of three spare fuses of each rating value are located
in the spare fuse panel area (3).
