7-10 DESCRIPTION OF AIRPLANE AND SYSTEMS / INSTRUMENT PANELS
ICON A5-B / PILOT’S OPERATING HANDBOOK CHANGE A2
CHAPTER 7
Stall Warning Horn
The stall warning horn is located on the forward side of the
overhead console. The horn activates approximately three
knots above stall speed (Mid-Yellow AOA) in unaccelerated
flight. The horn is disabled below 33 knots to minimize horn
activation when on land or water.
7.5.2 CENTER CONSOLE

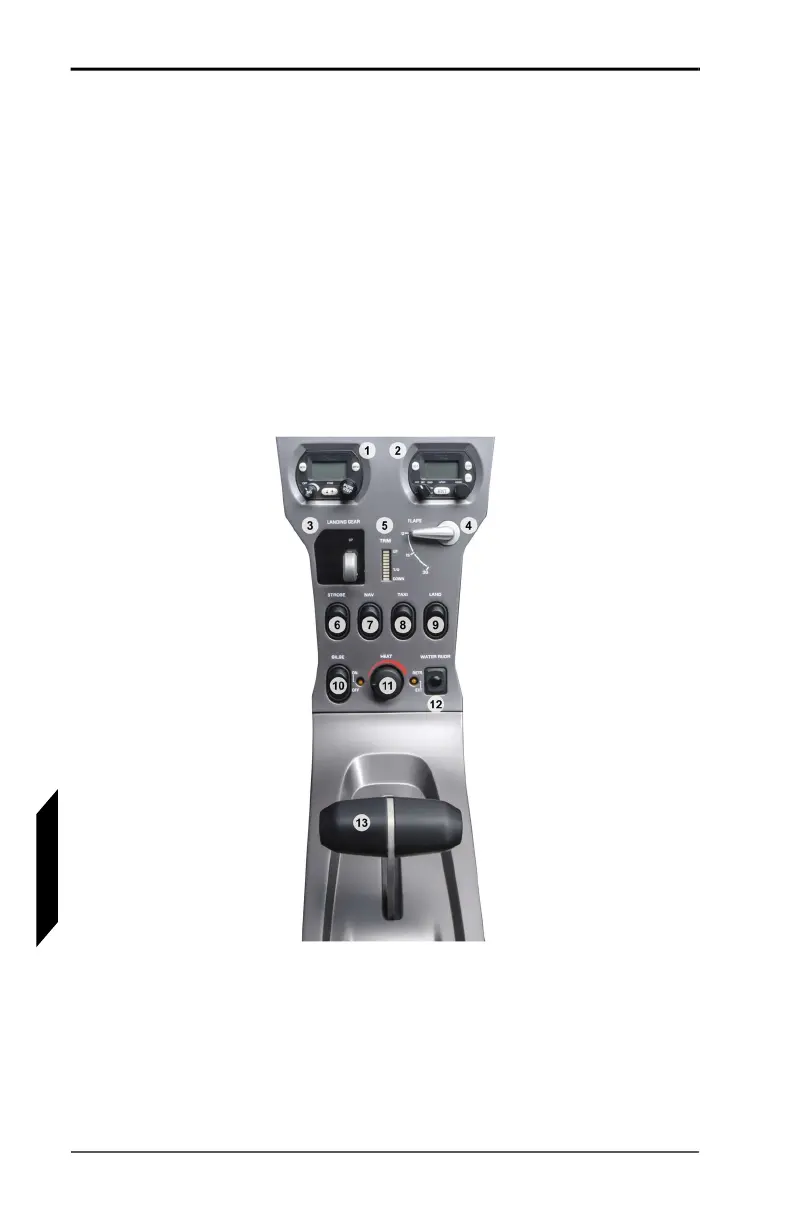

FIGURE 7-2
CENTER CONSOLE
(1) Trig TC90 VHF radio control unit
(2) Trig TC20 Mode S transponder control unit
(3) Landing gear control and position indicator
(4) Flap control
