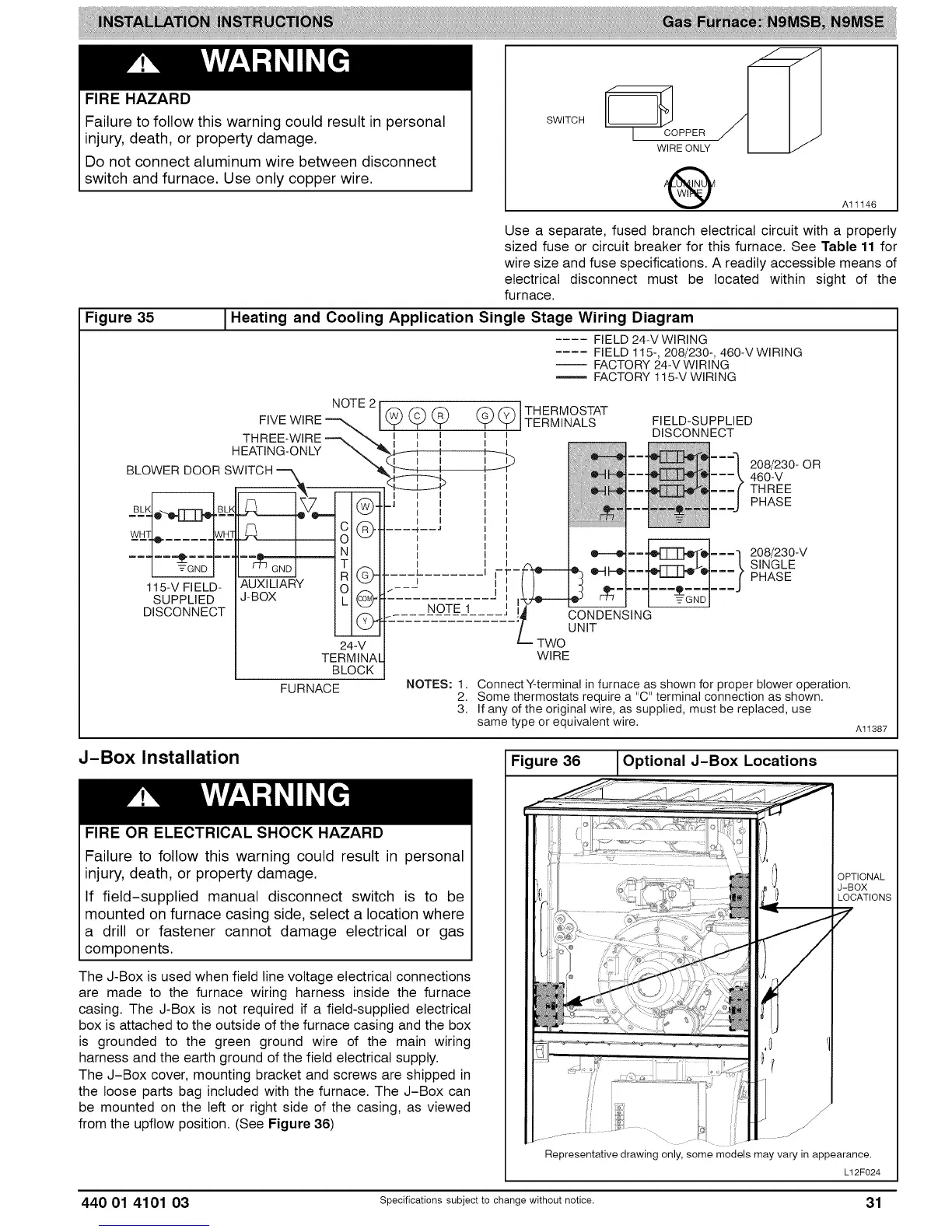

FIRE HAZARD
Failure to follow this warning could result in personal SWITCH
injury, death, or property damage.
Do not connect aluminum wire between disconnect
switch and furnace. Use only copper wire.
®
Al1146
Figure 35
Use a separate, fused branch electrical circuit with a properly
sized fuse or circuit breaker for this furnace. See Table 11 for
wire size and fuse specifications. A readily accessible means of
electrical disconnect must be located within sight of the
furnace.
[Heating and Cooling Application Single Stage Wiring Diagram
.... FIELD 24 VWIRING
.... FIELD 115,208/230-, 460 VWIRING
-- FACTORY24 VWIRING
FACTORY115V WIRING
Al1387
J-Box Installation
FIRE OR ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury, death, or property damage.
If field-supplied manual disconnect switch is to be
mounted on furnace casing side, select a location where
a drill or fastener cannot damage electrical or gas
components.
The J-Box is used when field line voltage electrical connections
are made to the furnace wiring harness inside the furnace
casing. The J-Box is not required if a field-supplied electrical
box is attached to the outside of the furnace casing and the box
is grounded to the green ground wire of the main wiring
harness and the earth ground of the field electrical supply.
The J-Box cover, mounting bracket and screws are shipped in
the loose parts bag included with the furnace. The J-Box can
be mounted on the left or right side of the casing, as viewed
from the upflow position. (See Figure 36)
Figure 36 Optional J-Box Locations
OPTIONAL
J-BOX
LOCATIONS
7
J
Representative drawing only, some models may vary in appearance
L12F024
440 01 4101 03 Specificationssubjectto change without notice. 31
