ICP N9MSB - Vent Termination Figures; Crawl Space and Attic Vent Termination Figures

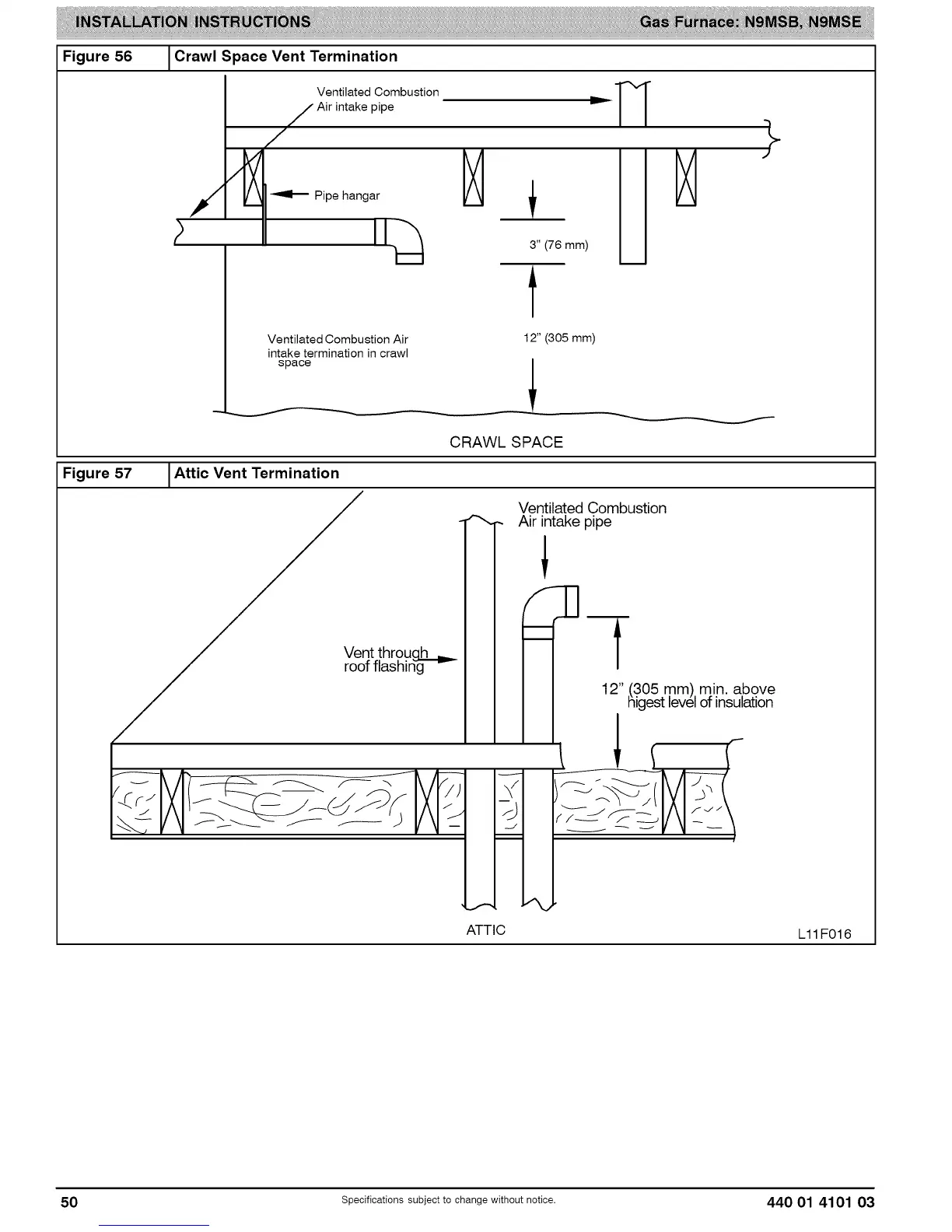

Figure 56 1Crawl Space Vent Termination
Ventilated Combustion _ T_
/ Air intake pipe _ I I
Pipe hangar
'_" (76 mm)
t
Ventilated Combustion Air 12" (305 mm)
intake termination in crawl
space
CRAWL SPACE
Figure 57 l Attic Vent Termination
Vent throuhgb__._
roof flashing
Ventilated Combustion
- Air intake pipe
--f
ATTIC
L11F016
50 Specifications subject to change without notice. 440 01 4101 03
