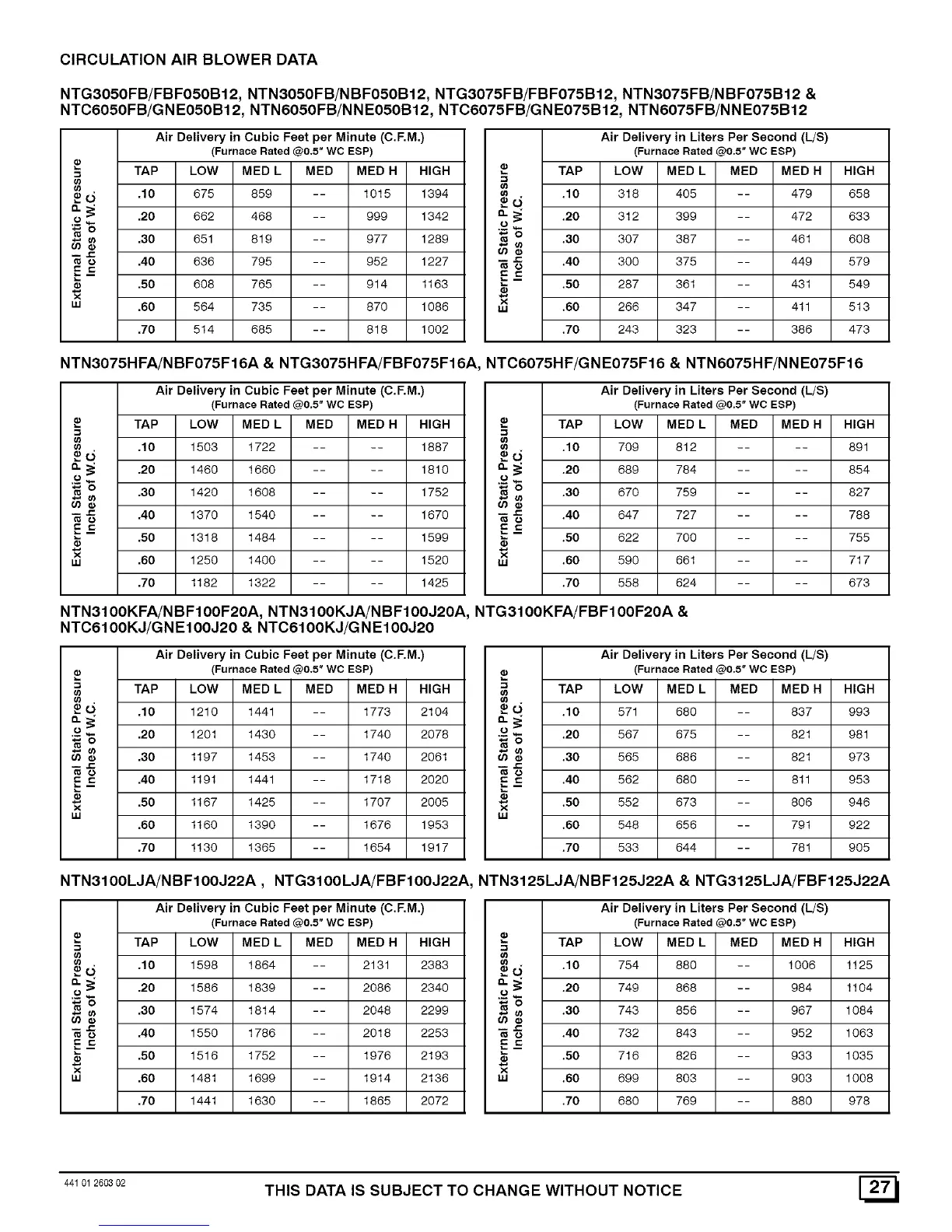

ICP NTG3/FBF User Manual

CIRCULATION AIR BLOWER DATA
NTG3050FB/FBF050B12, NTN3050FB/NBF050B12, NTG3075FB/FBF075B12, NTN3075FB/NBF075B12 &
NTC6050FB/GNE050B12, NTN6050FB/NNE050B12, NTC6075FB/GNE075B12, NTN6075FB/NNE075B12
Air Delivery in Cubic Feet per Minute (C.RM.)
(Furnace Rated @0,5" WC ESP)
TAP LOW MED L MED MED H HIGH
0 .10 675 859 -- 1015 1394
o .20 662 468 -- 999 1342
_o
_ .30 651 819 -- 977 1289
m o .40 636 795 -- 952 1227
E_
.50 608 765 -- 914 1163
w .60 564 735 -- 870 1086
.70 514 685 -- 818 1002
Air Delivery in Liters Per Second (L/S)
(Furnace Rated @0.5" WC ESP)
TAP LOW MED L MED MED H HIGH
(n
.. .10 318 405 -- 479 658
_" .20 312 399 -- 472 633
o
,7-
•_ o .30 307 387 -- 461 608
_ .= .40 300 375 -- 449 579
E__
.50 287 361 -- 431 549
x
w .60 266 347 -- 411 513
.70 243 323 -- 386 473
NTN3075HFA/NBF075F16A & NTG3075HFA/FBF075F16A, NTC6075HF/GNE075F16 & NTN6075HF/NNE075F16
Air Delivery in Cubic Feet per Minute (C.RM,)
(Furnace Rated @0,5" WC ESP)
TAP LOW MED L MED MED H HIGH
d .10 1503 1722 .... 1887
_ .20 1460 1660 .... 1810
o
o .30 1420 1608 .... 1752
_ .40 1370 1540 .... 1670
E_
.50 1318 1484 .... 1599
w .60 1250 1400 .... 1520
.70 1182 1322 .... 1425
Air Delivery in Liters Per Second (L/S)
(Furnace Rated @0.5" WC ESP)
TAP LOW MED L MED MED H HIGH
(n
d .10 709 812 .... 891
_ .20 689 784 .... 854
o
o .30 670 759 .... 827
-- _= .40 647 727 .... 788
E_=
_. .50 622 700 .... 755
w .60 590 661 .... 717
.70 558 624 .... 673
NTN3100KFA/NBF100F20A, NTN3100KJA/NBF100J20A, NTG3100KFA/FBF100F20A &
NTC6100KJ/GNE100J20 & NTC6100KJ/GNE100J20
Air Delivery in Cubic Feet per Minute (C.RM,)
(Furnace Rated @0,5" WC ESP)
o TAP LOW MED L MED MED H HIGH
d .10 1210 1441 -- 1773 2104
_ .20 1201 1430 -- 1740 2078
_ .30 1197 1453 -- 1740 2061
E _ .40 1191 1441 -- 1718 2020
.50 1167 1425 -- 1707 2005
x
w
.60 1160 1390 -- 1676 1953
.70 1130 1365 -- 1654 1917
Air Delivery in Liters Per Second (L/S)
(Furnace Rated @0,5" WC ESP)
= TAP LOW MED L MED MED H HIGH
(n
t_
d .10 571 680 -- 837 993
_ .20 567 675 -- 821 981
t_ _ .30 565 686 -- 821 973
E -= .40 562 680 -- 811 953
.50 552 673 -- 806 946
x
LU
.60 548 656 -- 791 922
.70 533 644 -- 781 905
NTN3100LJA/NBF100J22A , NTG3100LJA/FBF100J22A, NTN3125LJA/NBF125J22A & NTG3125LJA/FBF125J22A
Air Delivery in Cubic Feet per Minute (C.RM,)
(Furnace Rated @0,5" WC ESP)
TAP LOW MED L MED MED H HIGH
_ .10 1598 1864 -- 2131 2383
o .20 1586 1839 -- 2086 2340
_o
_ .30 1574 1814 -- 2048 2299
_ .40 1550 1786 -- 2018 2253
E_
.50 1516 1752 -- 1976 2193
w .60 1481 1699 -- 1914 2136
.70 1441 1630 -- 1865 2072
Air Delivery in Liters Per Second (L/S)
(Furnace Rated @0.5" WC ESP)
TAP LOW MED L MED MED H HIGH
(n
,; .10 754 880 -- 1006 1125
o .20 749 868 -- 984 1104
_o
_ .30 743 856 -- 967 1084
o .40 732 843 -- 952 1063
E__
_: .50 716 826 -- 933 1035
x
w .60 699 803 -- 903 1008
.70 680 769 -- 880 978
44101260_02 THIS DATA IS SUBJECT TO CHANGE WITHOUT NOTICE [_
