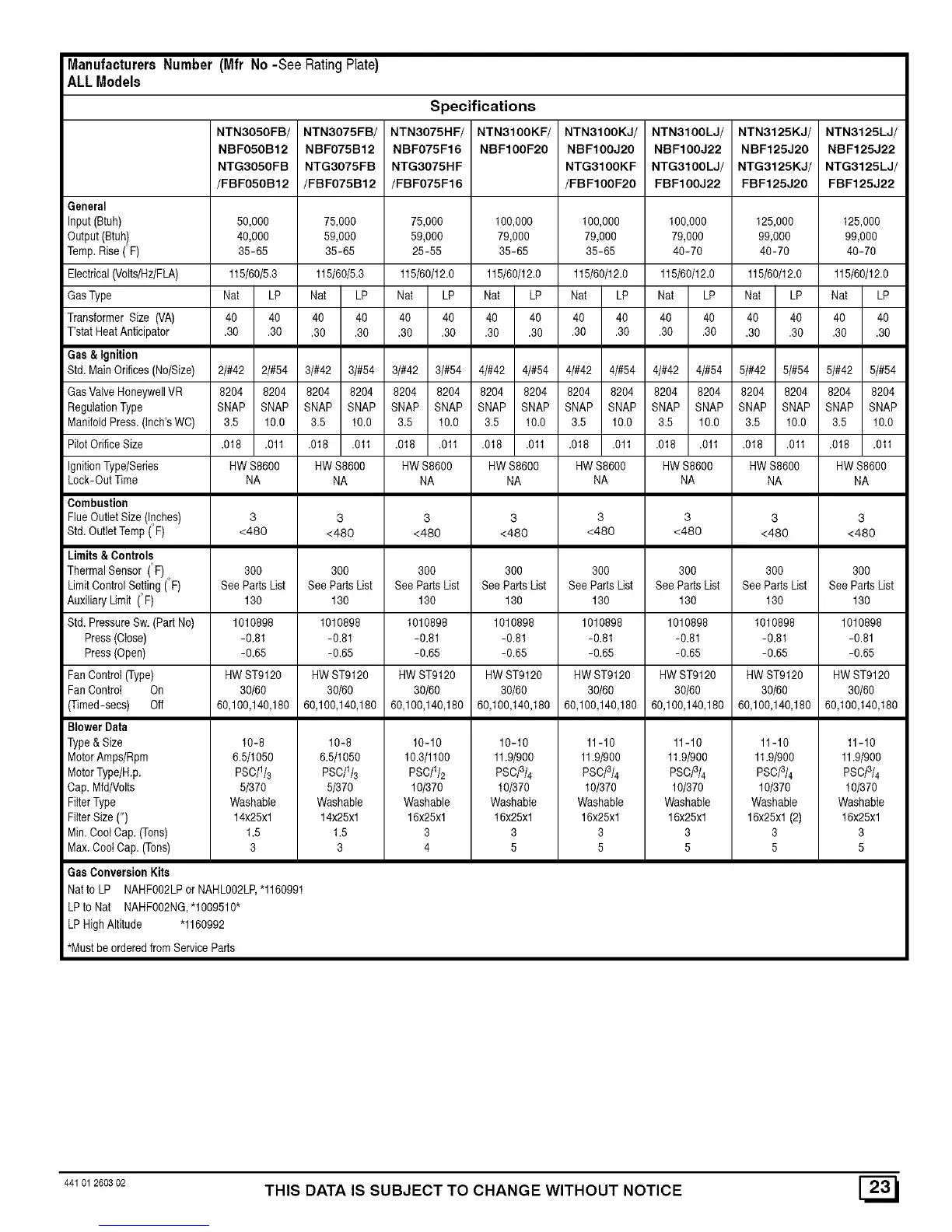

ICP NTG3/FBF User Manual

ManufacturersNumber(Mfr No-See RatingPlate)
ALL Models
Specifications
NTN305OFB/ NTN3075FB/ NTN3075HF/ NTN31OOKF/ NTN31OOKJ/ NTN31OOLJ/ NTN3125KJ/ NTN3125LJ/
NBFO5OB12 NBFO75B12 NBFO75F16 NBFIOOF20 NBFIOOJ20 NBFIOOJ22 NBF125J20 NBF125J22
NTG305OFB NTG3075FB NTG3075HF NTG31OOKF NTG31OOLJ/ NTG3125KJ/ NTG3125LJ/
/FBFO5OB12 /FBFO75B12 /FBFO75F16 /FBFIOOF20 FBFIOOJ22 FBF125J20 FBF125J22
General
Input (Btuh) 50,000 75,000 75,000 100,000 100,000 1O0,OO0 125,000 125,000
Output(Btuh) 40,000 59,000 59,000 79,000 79,000 79,000 99,000 99,000
Temp.Rise(F) 35-65 35-65 25-55 35-65 35-65 40-70 40-70 40-70
Electrical(Votts/Hz!FLA) 115/60/5.3 115/60/5.3 115/60/12.0 115/60/12.0 115/60/12.0 115/60/12.0 115/60/12.0 115/60/12.0
GasType Nat LP Nat LP Nat LP Nat LP Nat LP Nat LP Nat LP Nat LP
Transformer Size (VA) 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
T'statHeat Anticipator .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30
Gas& Ignition
Std.MainOrifices (No/Size) 2/#42 2/#54 3/#42 3/#54 3/#42 3/#54 4/#42 4/#54 4/#42 4/#54 4/#42 4/#54 5/#42 5/#54 5/#42 5/#54
GasValve HoneywellVR 8204 8204 8204 8204 8204 8204 8204 8204 8204 8204 8204 8204 8204 8204 8204 8204
RegulationType SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP
ManifoldPress.(Inch'sWC) 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0
PilotOrificeSize .018 .011 .018 .011 .018 .011 .018 .011 .018 .011 .018 .011 .018 .011 .018 .011
IgnitionType/Series HW S8600 HW $8600 HW $8600 HW$8600 HW $8600 HW $8600 HW$8600 HW $8600
Lock-Out Time NA NA NA NA NA NA NA NA
Combustion
FlueOutlet Size (Inches) 3 3 3 3 3 3 3 3
Std.OutletTemp (F) <480 <480 <480 <480 <480 <480 <480 <480
Limits &Controls
Thermal Sensor ('F) 300 300 300 300 300 300 300 300
LimitControlSetting (F) See PartsList See Parts List See PartsList See PartsList See PartsList SeeParts List See PartsList See PartsList
Auxiliary Umit (F) 130 130 130 130 130 130 130 130
Std.PressureSw. (PartNo) 1010898 1010898 1010898 1010898 1010898 1010898 1010898 1010898
Press(Close) -0.81 -0.81 -0.81 -0.81 -0.81 -0.81 -0.81 -0.81
Press(Open) -0.65 -0.65 -0.65 -0.65 -0.65 -0.65 -0.65 -0.65
FanControl(Type) HWST9120 HW ST9120 HW ST9120 HWST9120 HWST9120 HW ST9120 HWST9120 HW ST9120
FanControt On 30/60 30/60 30/60 30/60 30/60 30/60 30/60 30/60
(Timed-secs) Off 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180
Blower Data
Type & Size 10-8 10-8 10-10 10-10 11-10 11-10 11-10 11-10
MotorAmps/Rpm 6.5/1050 6.5/1050 10.3/110O 11.9/900 11.9/900 11.9/900 11.9/900 11.9/900
MotorType/H.p. PSC/1/3 PSC/1/3 PSC/1/2 PSC/3/4 PSC/3/4 PSC/3/4 PSC/3/4 PSC/3/4
Cap. MfdiVolts 5/370 5/370 10/370 10/370 10/370 10/370 10/370 10/370
FilterType Washable Washable Washable Washable Washable Washable Washable Washable
FilterSize (") 14x25x1 14x25x1 16x25x1 16x25x1 16x25x1 16x25x1 16x25x1(2) 16x25x1
Min.CootCap.(Tons) 1.5 1.5 3 3 3 3 3 3
Max.0oot OaF (Tons) 3 3 4 5 5 5 5 5
GasConversionKits
Natto LP NAHFOO2LPor NAHLO02LP,*1160991
LPto Nat NAHF002NG,*1009510*
LP HighAltitude *1160992
*Mustbe orderedfrom ServiceParts
44101260302 THIS DATA IS SUBJECT TO CHANGE WITHOUT NOTICE [_]
