ICP NTG3/FBF User Manual

ManufacturersNumber(Mfr No-See RatingPlate)
ALL Models

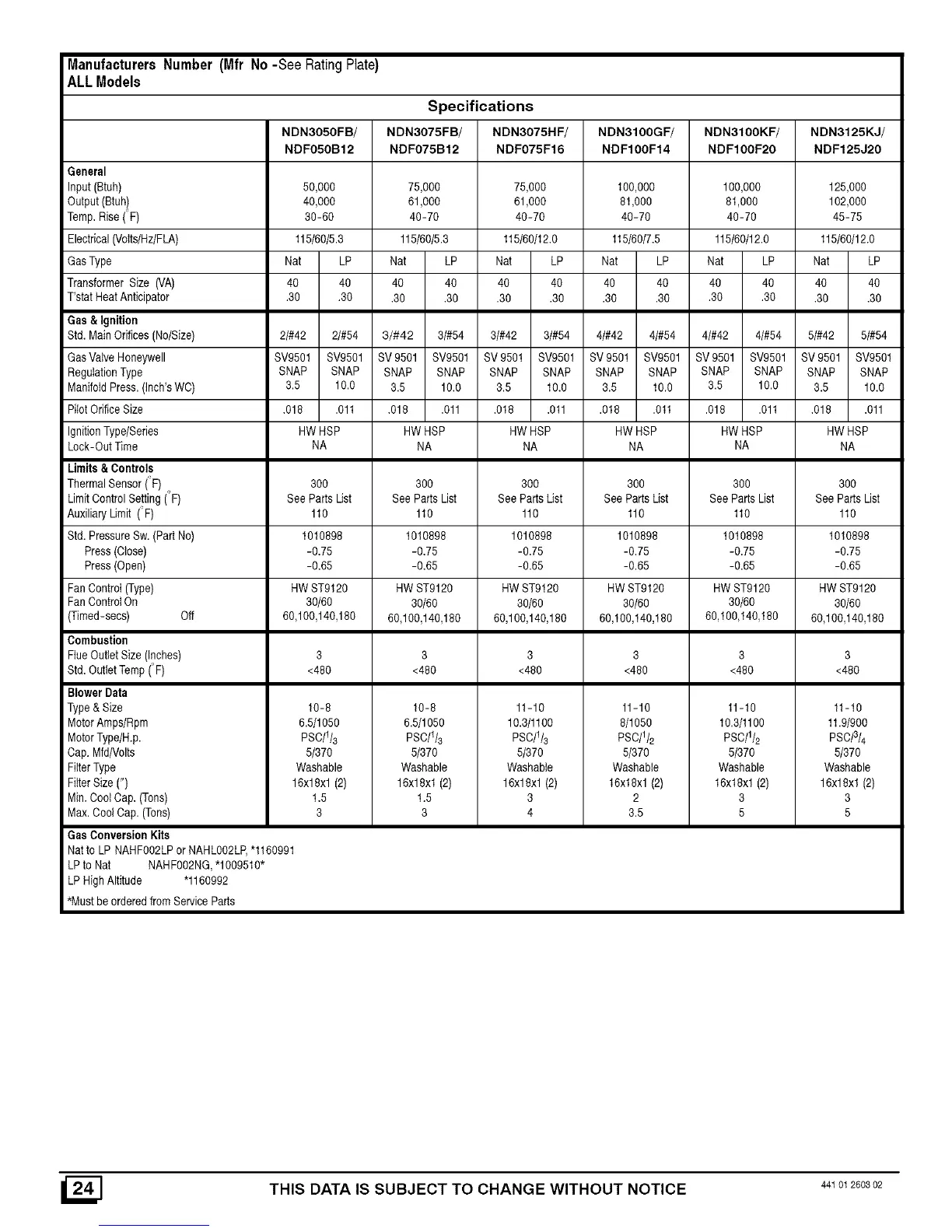

Specifications
NDN305OFB/ NDN3075FB/ NDN3075HF/ NDN31OOGF/ NDN31OOKF/ NDN3125KJ/
NDFO5OB12 NDFO75B12 NDFO75F16 NDFIOOF14 NDFIOOF20 NDF125J20
General
Input (Btuh) 50,000 75,000 75,000 100,000 100,000 125,000
Output(Btuh) 40,000 61,000 61,000 81,000 81,000 102,000
Temp.Rise(F) 30-60 40-70 40-70 40-70 40-70 45-75
Electrical(Volts/liz!FLA) 115/60/5.3 115/60/5.3 115/60/12.0 115/60/7.5 115/60/12.0 115/60/12.0
GasType Nat LP Nat LP Nat LP Nat LP Nat LP Nat LP
Transformer Size (VA) 40 40 40 40 40 40 40 40 40 40 40 40
T'statHeat Anticipator .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30
Gas& Ignition
Std.MainOrifices (No/Size) 2/#42 2/#54 3/#42 3/#54 3/#42 3/#54 4/#42 4/#54 4/#42 4/#54 5/#42 5/#54
GasValve Honeywell SV9501 SV9501 SV9501 SV9501 SV9501 SV9501 SV9501 SV9501 SV9501 SV9501 SV9501 SV9501
RegulationType SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP
ManifoldPress.(Inch'sWC) 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0
PilotOrificeSize .018 .011 .018 .011 .018 .011 .018 .011 .018 .011 .018 .011
IgnitionType/Series HW HSP HWHSP HW HSP liW liSP liW HSP HW HSP
Lock-Out Time NA NA NA NA NA NA
Limits &Controls
Thermal Sensor('F) 300 300 300 300 300 300
LimitControlSetting (F) See Parts Ust See PartsList See Parts List See PartsList See PartsList SeeParts List
Auxiliary Limit (F) 110 110 110 110 110 110
Std.PressureSw. (PartNo) 1010898 1010898 1010898 1010898 1010898 1010898
Press(Close) -0.75 -0.75 -0.75 -0.75 -0.75 -0.75
Press(Open) -0.65 -0.65 -0.65 -0.65 -0.65 -0.65
FanControl(Type) HWST9120 HW ST9120 HW ST9120 liW ST9120 liW ST9120 HW ST9120
FanControtOn 30/60 30/60 30/60 30/60 30/60 30/60
(Timed-secs) Off 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180
Combustion
FlueOutlet Size (Inches) 3 3 3 3 3 3
Std.OutletTemp (F) <480 <480 <480 <480 <480 <480
Blower Data
Type & Size 10-8 10-8 11-10 11-10 11-10 11-10
MotorAmps/Rpm 6.5/1050 6.5/1050 10.3/1100 8/1050 10.3/1100 11.9/900
MotorType!H.p. PSC/1/3 PSC/1/3 PSC/1/3 PSC/1/2 PSC/1/2 PSC/3/4
Cap. MfdNolts 5/370 5/370 5/370 5/370 5/370 5/370
FilterType Washable Washable Washable Washable Washable Washable
FilterSize (') 16xl8xl (2) 16xl 8xl (2) 16xl 8xl (2) 16xl 8xl (2) 16xl8xl (2) 16xl 8xl (2)
Min.CootCap.(Tons) 1.5 1.5 3 2 3 3
Max.CoolCap. (Tons) 3 3 4 3.5 5 5
GasConversionKits
Natto LP NAHF002LPor NAHL002LP,*1160991
LPto Nat NAHF002NG,'1009510'
LP HighAltitude "1160992
*Mustbe orderedfrom ServiceParts
_] THIS DATA IS SUBJECT TO CHANGE WITHOUT NOTICE 44101260302
