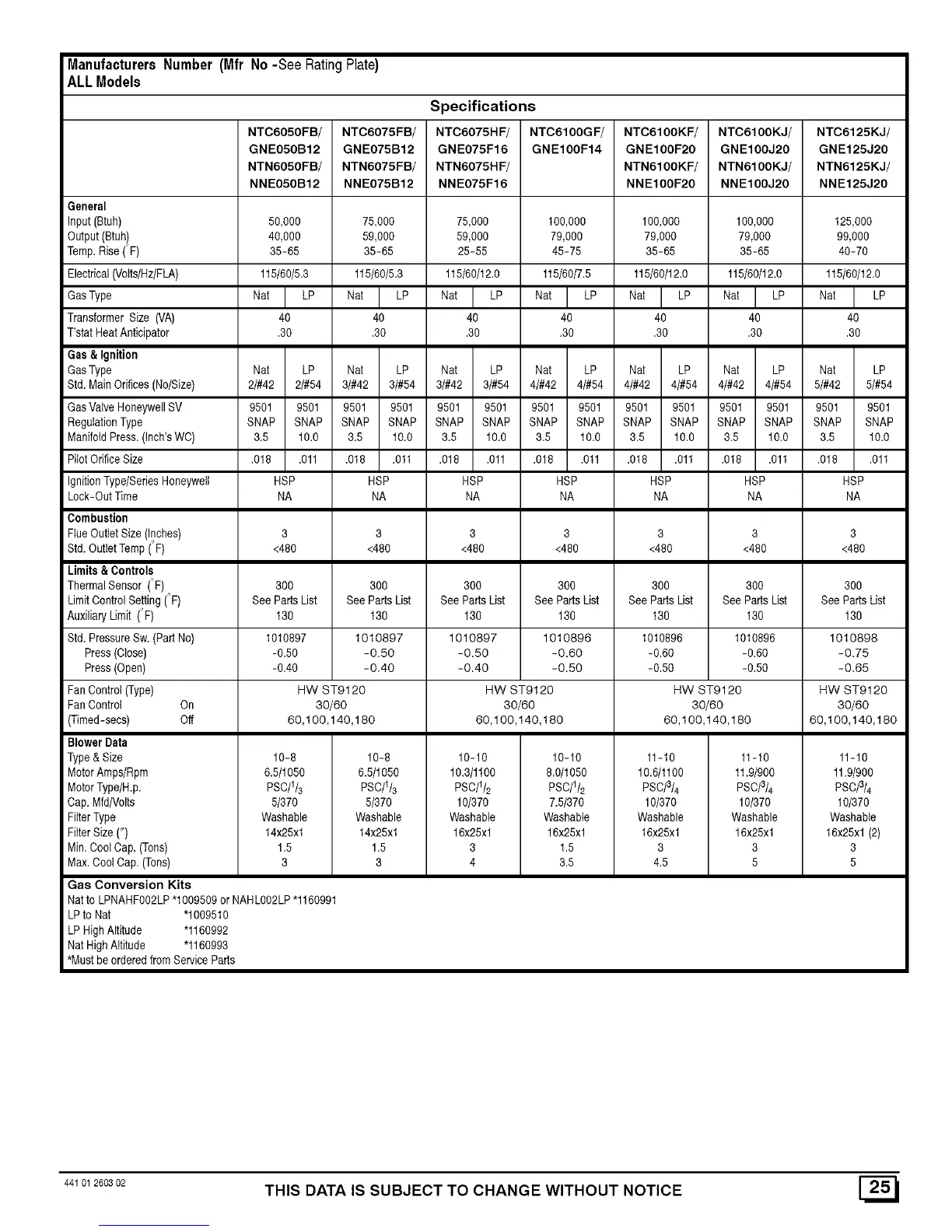

ManufacturersNumber(Mfr No-See RatingPlate)
ALL Models
Specifications
NTC605OFB/ NTC6075FB/ NTC6075HF/ NTC6100GF/ NTC6100KF/ NTC6100KJ/ NTC6125KJ/
GNEO50B12 GNEO75B12 GNEO75F16 GNE100F14 GNEIOOF20 GNEIOOJ20 GNE125J20
NTN605OFB/ NTN6075FB/ NTN6075HF/ NTN6100KF/ NTN6100KJ/ NTN6125KJ/
NNEO50B12 NNEO75B12 NNEO75F16 NNEIOOF20 NNEIOOJ20 NNE125J20
General
Input (Btuh) 50,000 75,000 75,000 100,000 100,000 100,000 125,000
Output(Btuh) 40,000 59,000 59,000 79,000 79,000 79,000 99,000
Temp.Rise(F) 35-65 35-65 25-55 45-75 35-65 35-65 40-70
Electrical(Votts/Hz!FLA) 115/60/5.3 115/60/5.3 115/60/12.0 115/60/7.5 115/60/12.0 115/60/12.0 115/60/12.0
GasType Nat I LP NatI,P Nat Nat NatI,P NatI,P Nat I 'P
Transformer Size (VA) 40 40 40 40 40 40 40
T'statHeat Anticipator .30 .30 .30 .30 .30 .30 .30
Gas& Ignition
GasType Nat LP Nat LP Nat LP Nat LP Nat LP Nat LP Nat LP
Std.MainOrifices (No/Size) 2/#42 2/#54 3/#42 3/#54 3/#42 3/#54 4/#42 4/#54 4/#42 4/#54 4/#42 4/#54 5/#42 5/#54
GasValve HoneywellSV 9501 9501 9501 9501 9501 9501 9501 9501 9501 9501 9501 9501 9501 9501
RegulationType SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP SNAP
ManifoldPress.(Inch'sWC) 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0
PilotOrificeSize .018 .011 .018 .011 .018 .011 .018 .011 .018 .011 .018 .011 .018 .011
IgnitionType/SeriesHoneywell HSP HSP HSP HSP HSP HSP HSP
Lock-Out Time NA NA NA NA NA NA NA
Combustion
FlueOutlet Size (Inches) 3 3 3 3 3 3 3
Std.OutletTemp (F) <480 <480 <480 <480 <480 <480 <480
Limits&Controls
Thermal Sensor (F) 300 300 300 300 300 300 300
LimitControlSetting (F) See PartsList See PartsList See PartsList See PartsList SeeParts List SeeParts List See PartsList
Auxiliary Umit ('F) 130 130 130 130 130 130 130
Std.PressureSw. (PartNo) 1010897 1010897 1010897 1010896 1010896 1010896 1010898
Press(Close) -0.50 -0.50 -0.50 -0.60 -0.60 -0.60 -0.75
Press(Open) -0.40 -0.40 -0.40 -0.50 -0.50 -0.50 -0.65
FanControl(Type) HW ST9120 HW ST9120 HW ST9120 HW ST9120
FanControl On 30/60 30/60 30/60 30/60
(Timed-secs) Off 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180
Blower Data
Type & Size 10-8 10-8 10-10 10-10 11-10 11-10 11-10
MotorAmps/Rpm 6.5/1050 6.5/1050 10.3/11O0 8.0/1050 10.6/11O0 11.9/900 11.9/900
MotorType/H.p. PSC/1/3 PSC/1/3 PSC/1/2 PSC/1/2 PS0/3/4 PS0/3/4 PS0/3/4
Cap. Mfd/Volts 5/370 5/370 10/370 7.5/370 10/370 10/370 10/370
FilterType Washable Washable Washable Washable Washable Washable Washable
FilterSize (") 14x25xl 14x25xl 16x25x1 16x25x1 16x25xl 16x25xl 16x25x1(2)
Min.CoolCap. (Tons) 1.5 1.5 3 1.5 3 3 3
Max.CoolCap. (Tons) 3 3 4 3.5 4.5 5 5
Gas Conversion Kits
Natto LPNAHFO02LP"1009509 or NAHL002LP"1160991
LPto Nat '1009510
LP HighAltitude "1160992
NatHighAltitude "1160993
*Mustbe orderedfrom ServiceParts
44101260302 THIS DATA IS SUBJECT TO CHANGE WITHOUT NOTICE [_
