I Combination Units Installation Instructions

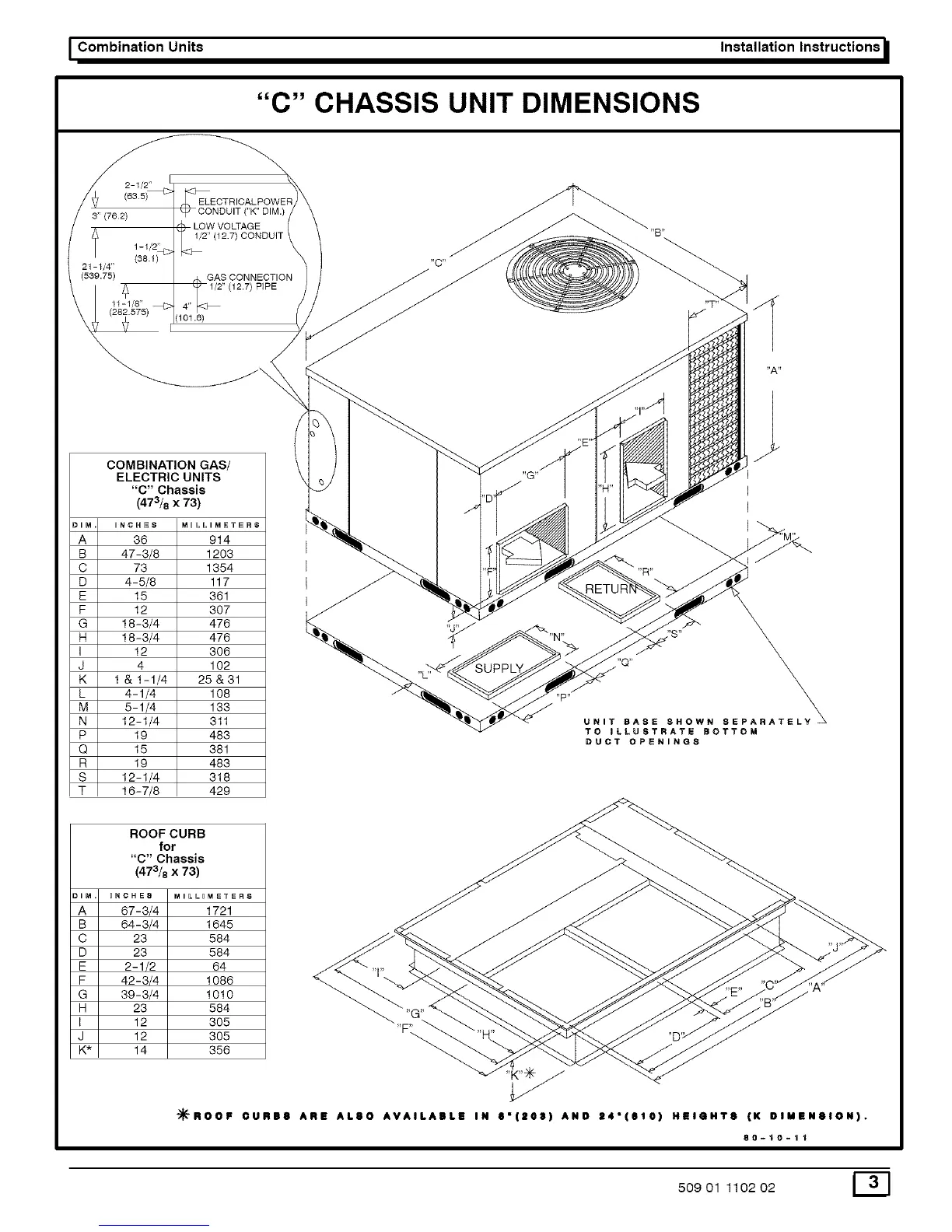

"C" CHASSIS UNIT DIMENSIONS
2-1/2"
3" (762) ("K" DIM.)
LOW VOLTAGE
1/2" (12.7) CONDUIT
1- 1/2"
21-1/4"
(539.75) GAS CONNECTION
11-1/8"
(101.6)
COMBINATION GAS/
ELECTRIC UNITS
"C" Chassis
(473/8 x 73)
_IM. INCHES M_LLIM_T_RS
A 36 914
B 47-3/8 1203
C 73 1354
D 4-5/8 117
E 15 361
F 12 307
G 18-3/4 476
H 18-3/4 476
] 12 306
J 4 102
K 1 &1-1/4 25&31
L 4-1/4 108
M 5-1/4 133
N 12-1/4 311
P 19 483
Q 15 381
R 19 483
S 12-1/4 318
T 16-7/8 429
ROOF CURB
for
"C" Chassis
(473/8 x 73)
DIM. _NCHE8 MILLIMETER8
A 67-3/4 1721
B 64- 3/4 1645
C 23 584
D 23 584
E 2-1/2 64
F 42-3/4 1086
G 39 - 3/4 1010
H 23 584
I 12 305
J 12 305
K* 14 356
"C"
"G"
,,p,,
"R"
UNIT BASE SHOWN SEPARAT
TO ILLUSTRATE BOTTOM
DUCT OPENINGS
"F\
_ROOF OURB8 ARE AL80 AVAILABLE IN 8"(208) AND Z4"(610) HEIGHT8 (K DIMENSION).
80-t0-11
50901 110202 E_]
