ICS 695XL Service Manual

©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
14
695XL SERVICE MANUAL

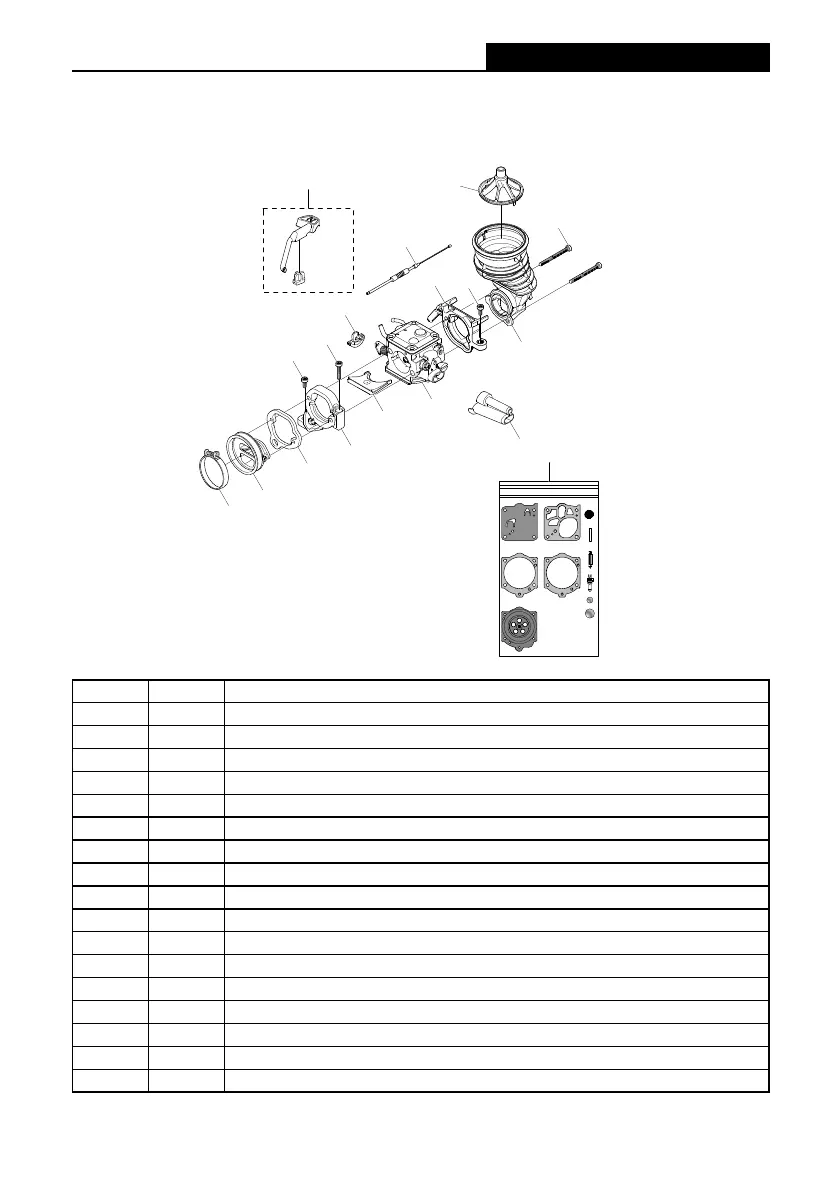

CARBURETOR & INTAKE ASSEMBLIES
Key # Part No. Description
I1 544069 INLET BOOT CLAMP
I2 544070 INLET BOOT
I3 544071 FLANGE
I4 544072 FLANGE CLUTCH SIDE SCREW
I5 544073 FLANGE BRACKET
I6 544065 SCREW
I7 544074 SEPARATOR PLATE
I8 544075 CARBURETOR (WALBRO RWJ-7)
I9 544111 THROTTLE CABLE LEVER
I10 576168 ADJUSTMENT GUIDE
I11 544112 MANIFOLD BRACKET
I12 544113 AIR INTAKE MANIFOLD
I13 544114 AIR FILTER BRACKET
I14 544115 CARBURETOR MOUNTING SCREW
I15 543975 THROTTLE CABLE ASSEMBLY
I16 544117 CHOKE LEVER
I17 576161 CARBURETOR REPAIR KIT (Only for 695XL, will not t 695GC/F4/PG)
U
I16
I1
I2
I3
I4
I5
I6
I7
I8
I11
I12
I13
I4
I14
I10
I15
I17
I9
4. SPARE PARTS DIAGRAM

ICS 695XL Specifications

General

Brand	ICS
Model	695XL
Category	Chainsaw
Language	English
