©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
13
695XL SERVICE MANUAL

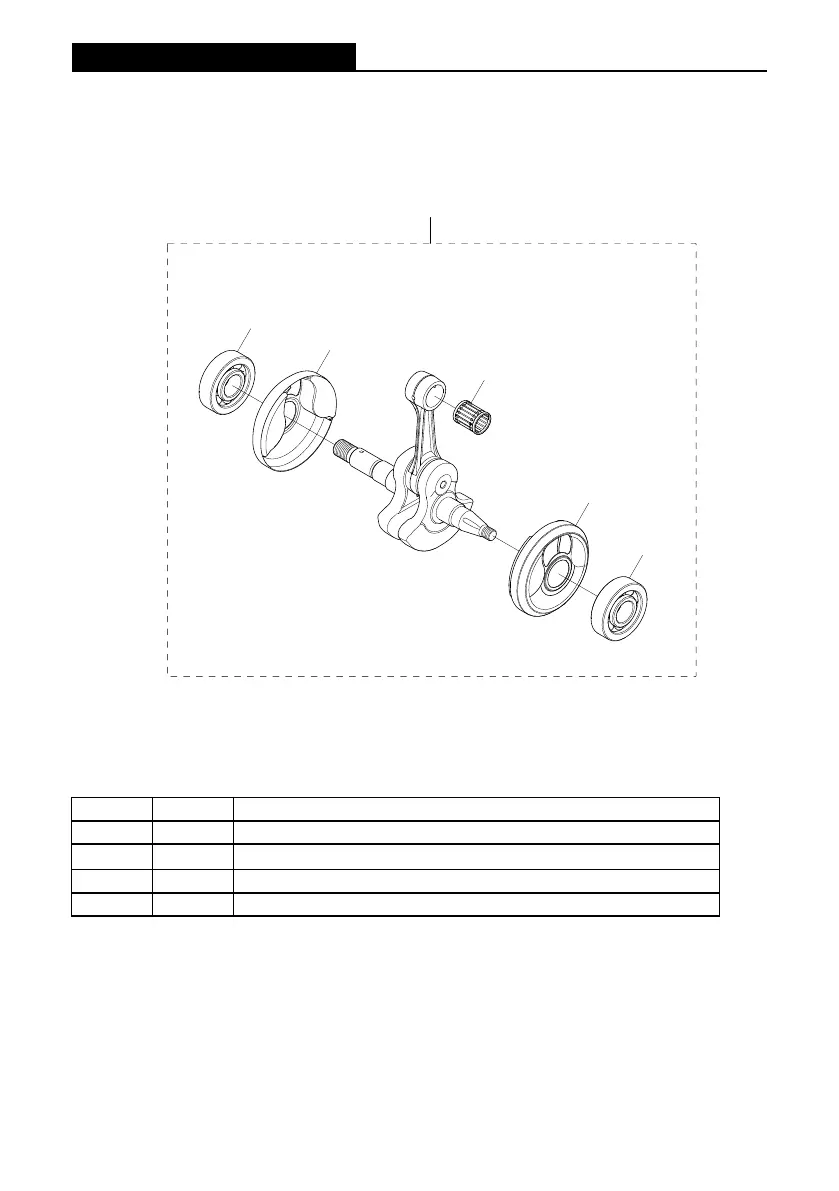

CRANKSHAFT ASSEMBLY
Key # Part No. Description
G1 543952 CRANKSHAFT ASSEMBLY
G2 543934 MAIN BEARING
G3 543953 CRANKSHAFT SHIELD
G4 543949 NEEDLE BEARING
G1
G2
G2
G3
G3
G4
4. SPARE PARTS DIAGRAM
