©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
12
695XL SERVICE MANUAL

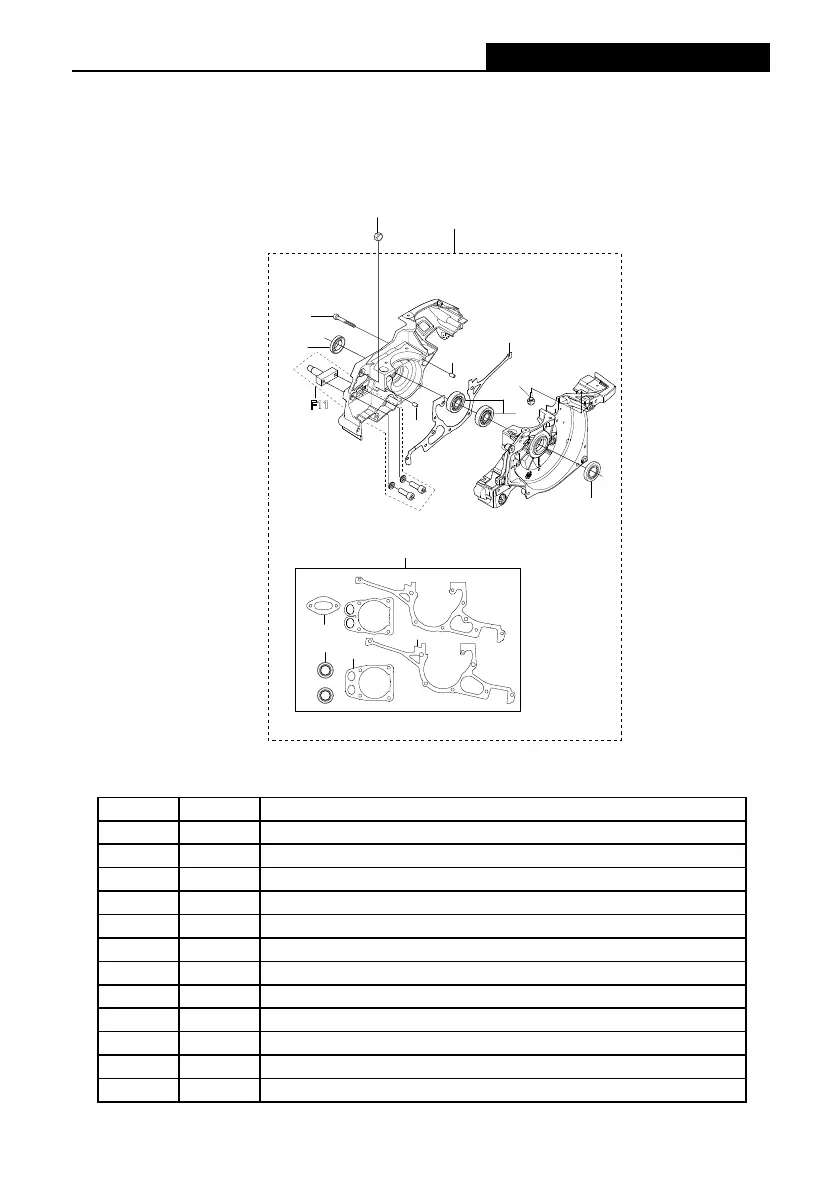

CRANKCASE ASSEMBLY
Key # Part No. Description
F1 543929 CRANKCASE ASSEMBLY
F2 543930 CRANKCASE SCREW
F3 543931 SEALING RING
F4 543932 GUIDE BUSHING
F5 543933 CRANKCASE GASKET
F6 543934 MAIN BEARING
F7 543935 RUBBER BUSHING
F8 543936 GASKET KIT
F9 543937 CYLINDER BASE GASKET
F10 543938 MUFFLER GASKET
F11 544129 BAR STUD KIT
F12 543941 BAR BRACKET FASTENER
F7
F3
F1
F8
F5
F3
F9
F10
F12
F5
F6
F2
F3
F4
F11
F4
4. SPARE PARTS DIAGRAM
