695XL SERVICE MANUAL
FUEL TANK ASSEMBLY
Key # Part No. Description
K1 543812 FUEL TANK ASSEMBLY
K2 543813 PARALLEL PIN
K3 543814 CABLE LEVER
K4 543815 THROTTLE LOCK OUT LEVER
K5 543816 REAR HANDLE COVER
K6 543818 CLIP
K7 543993 FUEL LINE
K8 543994 CHECK VALVE TUBE
K9 543969 CHECK VALVE
K10 543970 HOSE CLAMP
K11 543971 FUEL FILTER
K12 544990 TANK VENT ELBOW
K13 544122 TANK VENT
K14 543972 REAR HANDLE GROUND SUPPORT
K15 543973 PURGE BULB
K16 543974 REAR HANDLE SCREW
K17 543975 THROTTLE CABLE ASSEMBLY
K18 543976 THROTTLE TRIGGER
K19 543977 TRIGGER SPRING
K20 543995 PURGE BULB TUB
K21 543979 GAS TANK CAP ASSEMBLY
K22 543981 SHOCK ABSORBER SCREW
K23 543982 SHOCK ABSORBER CLUTCH SIDE
K24 543983 SHOCK ABSORBER FRONT
K25 543984 SHOCK ABSORBER FLYWHEEL SIDE
K25
K2
K22
K18
K4
K19
K8 (76 mm)
K8 (102 mm)
K9
K7
K6
K12
K13
K16
K15
K14
K20
K24
K22
K23
K22
K21
K17
K2
K3
K1
K5
K11
K10

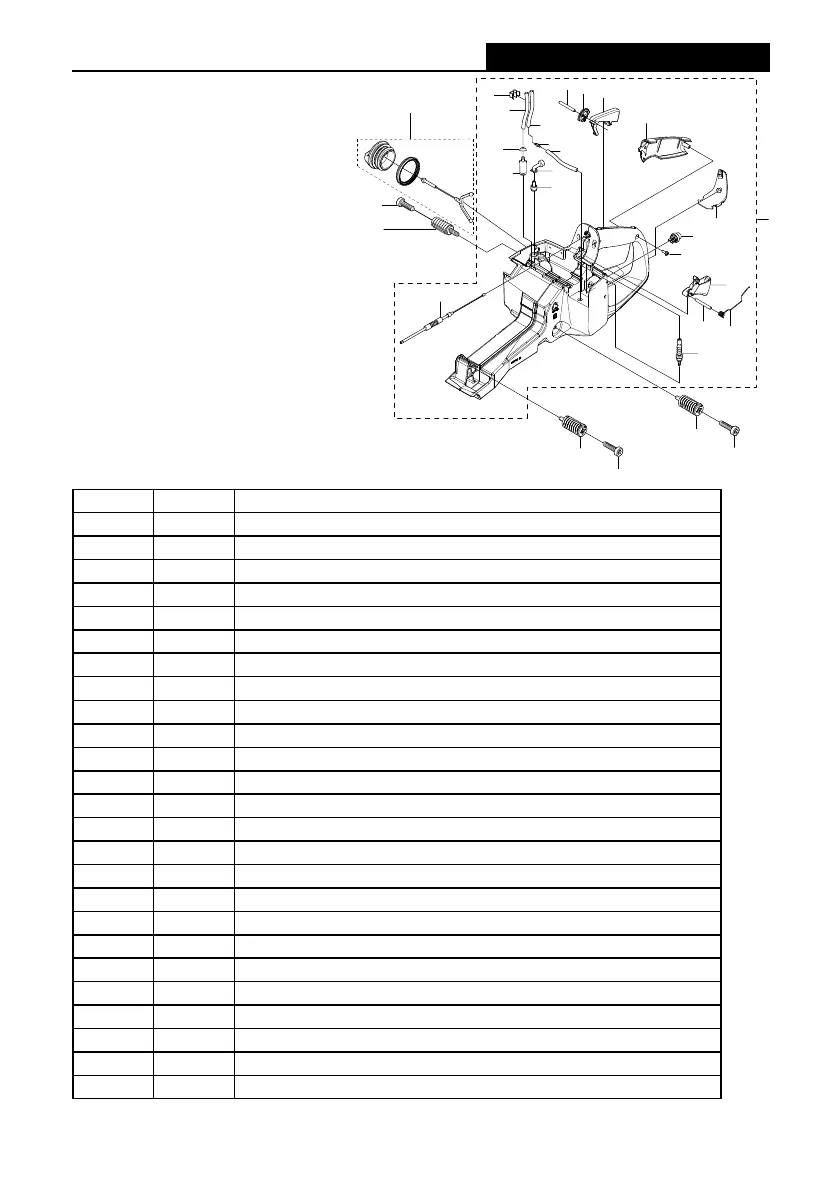

4. SPARE PARTS DIAGRAM
