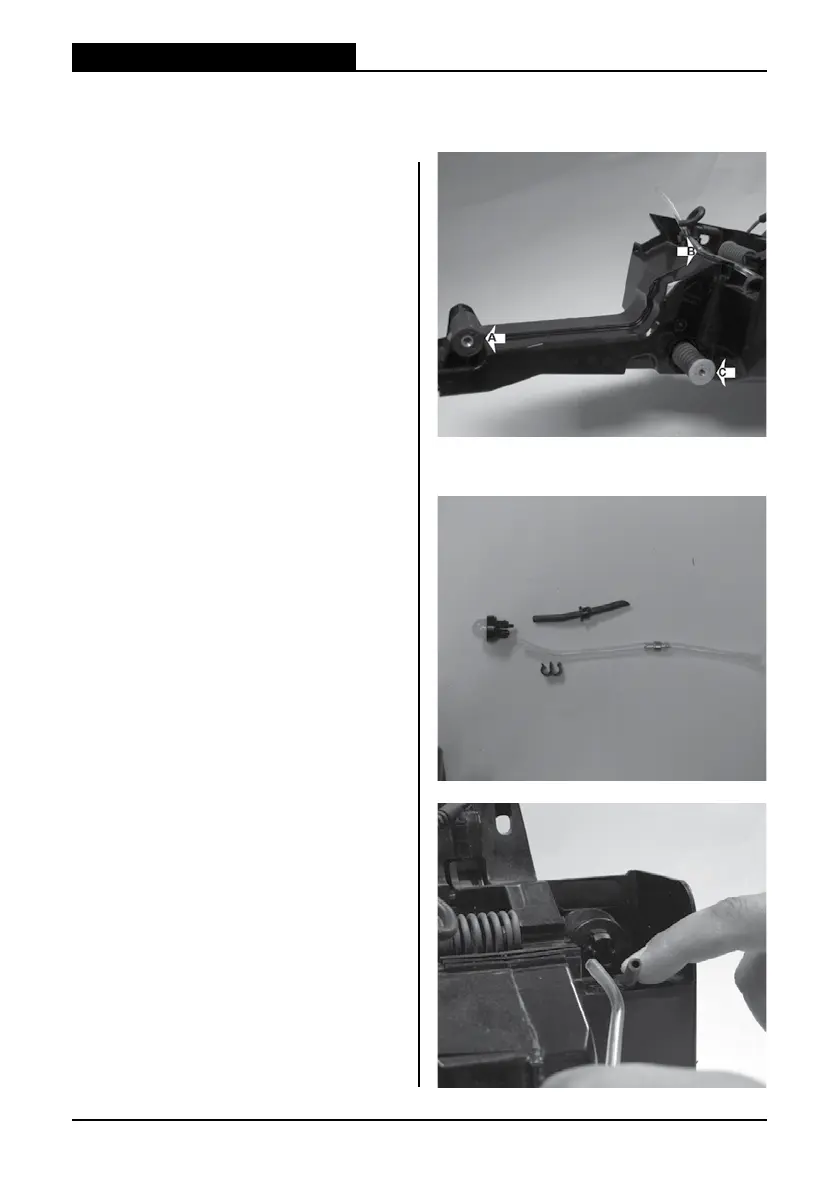

695XL SERVICE MANUAL
19.17
Shock Absorbers
Using the Workshop Key Torx T27 (P/N
546191), remove shock absorbers.
A.)Front shock absorber (P/N 543983).
B.) Clutch side shock absorber (P/N
543982).
C.)Flywheel side shock absorber (P/N
543984).
Inspect and replace if damaged.
Install in reverse order using Loctite
®
242
(except Tank Vent).
19.19
Disconnect the purge bulb tube, return
line (P/N 543995) and disconnect check
valve tube (P/N 543994).
19.18
Purge bulb circuit.
Refer to troubleshooting (section 24) if
necessary.
19. FUEL TANK & COMPONENTS
To Next Page
