695XL SERVICE MANUAL
19.20

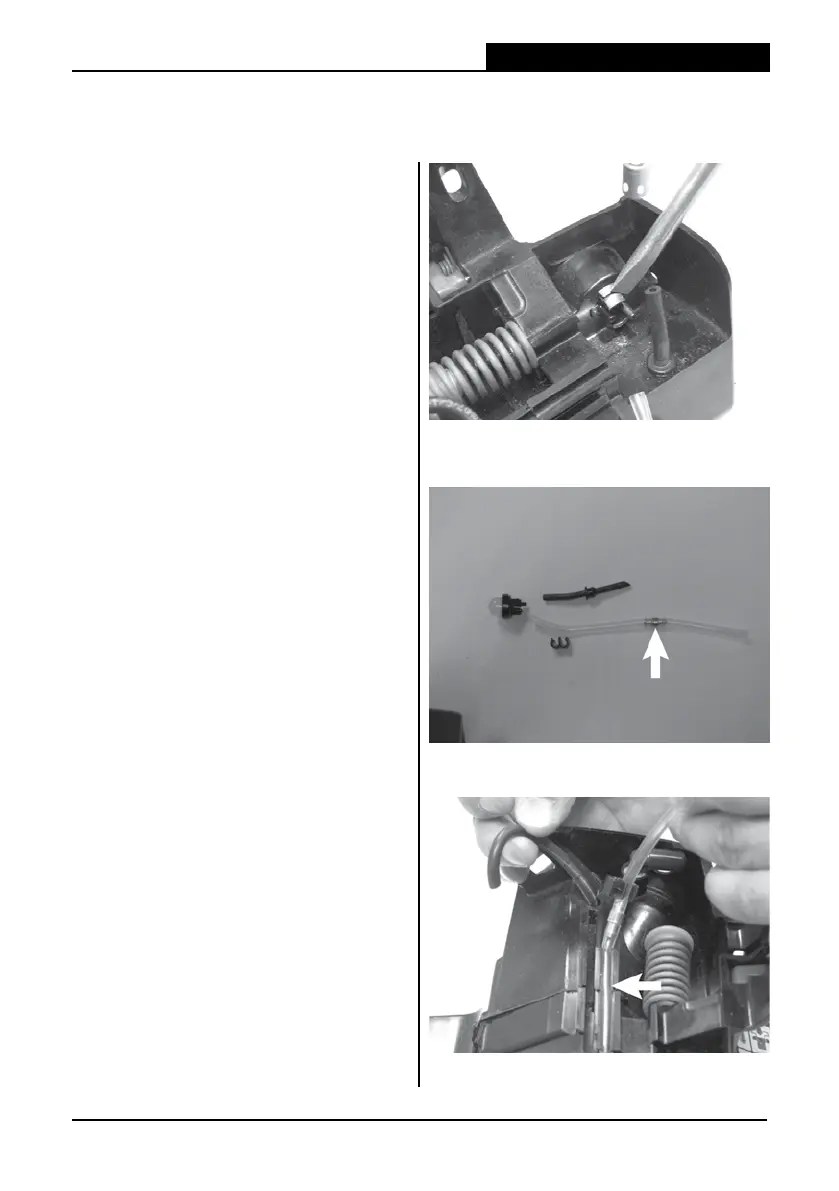

Remove purge bulb (P/N 543973) lightly
depress tab to disengage purge bulb.
19.22
Reassemble in reverse order.
Check valve tube must be inserted back
into channel and connected to fuel line
with clip. (P/N 543818).
19.21
Inspect all components.
Replace if damaged. Check valve (P/N
543969) ows one way, ensure that it is
installed correctly. Fuel ows towards the
purge bulb.
Refer to troubleshooting (section 24) if
necessary.
