©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
8
695XL SERVICE MANUAL

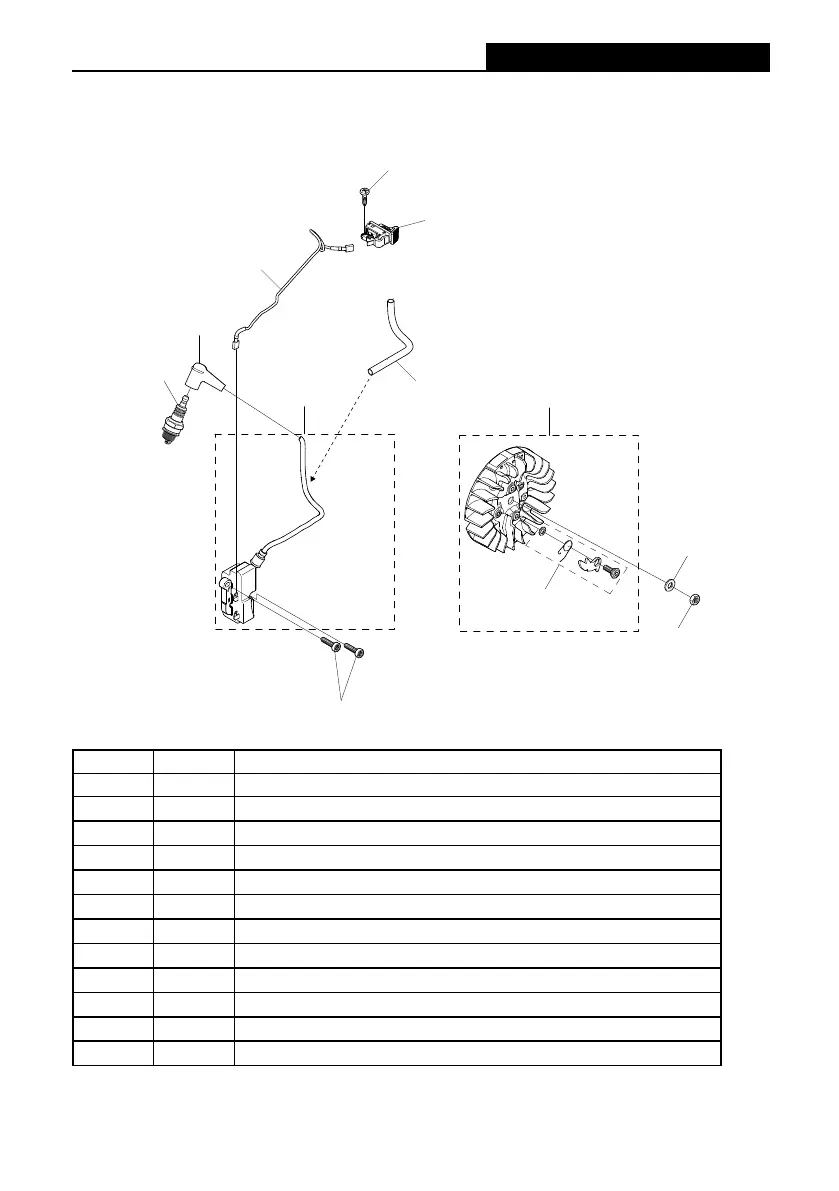

4. SPARE PARTS DIAGRAM
FLYWHEEL & IGNITION ASSEMBLY
Key # Part No. Description
B1 544030 STOP SWITCH SCREW
B2 544031 STOP SWITCH
B3 544032 STOP SWITCH CABLE
B4 544033 SPARK PLUG CAP
B5 544034 SPARK PLUG
B6 544035 PROTECTIVE SLEEVE
B7 544036 IGNITION MODULE
B8 544038 IGNITION MODULE SCREW
B9 544053 FLYWHEEL
B10 544125 STARTER PAWL KIT (INCL. TWO OF EACH ITEM)
B11 544058 STARTER WASHER
B12 544059 STARTER NUT
B6
B7
B4
B5
B8
B3
B2
B1
B11
B12
B9
B10
