ICS 695XL Service Manual

©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
9

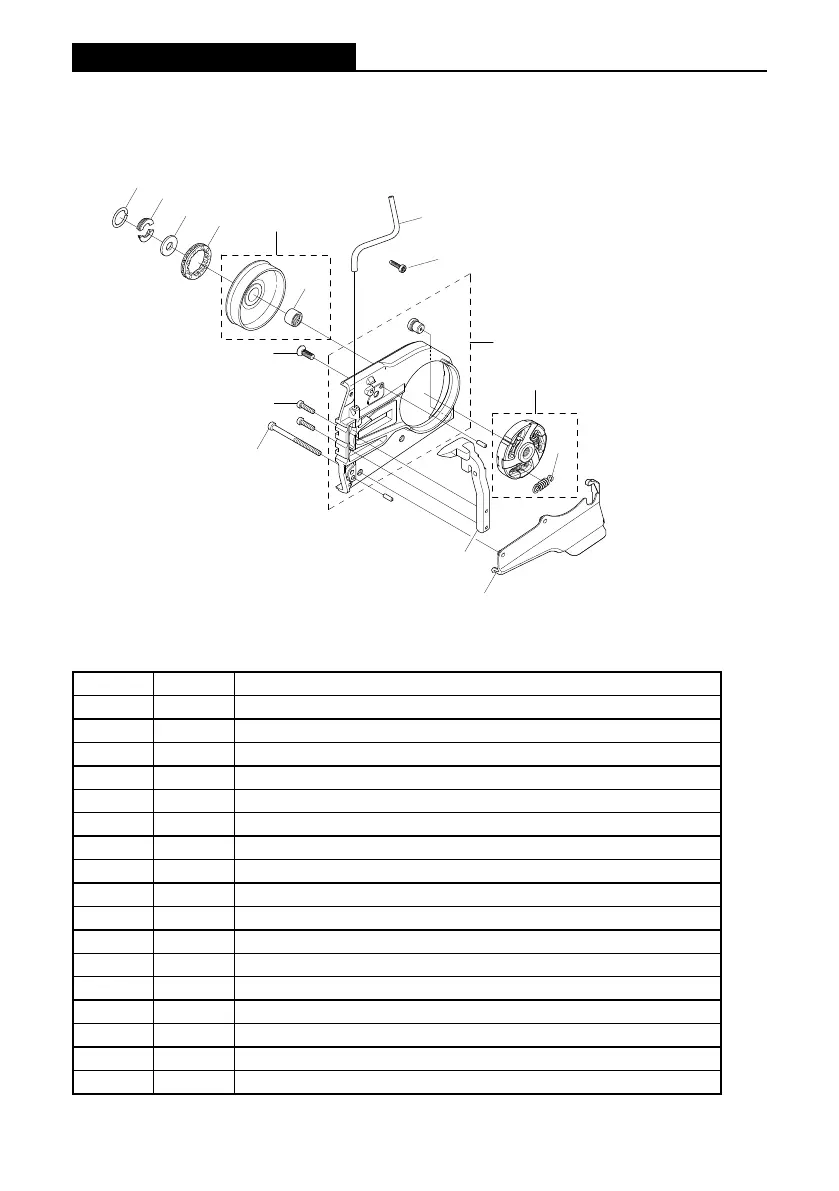

695XL SERVICE MANUAL
CLUTCH ASSEMBLY & WALLWALKER
®
Key # Part No. Description
C1 543905 RETAINING RING
C2 551384 SPLIT RETAINER, 695 (PAIR)
C3 543907 SPACER
C4 525496 695F4 FORCE4™ SPROCKET
C4 70949 695GC RIM SPROCKET
C5 543909 CLUTCH CUP
C6 543910 NEEDLE BEARING
C7 543911 BAR BRACKET SCREW
C8 543912 CRANK CASE BOLT
C9 544130 WALLWALKER
®
C10 543920 WALLWALKER
®
SCREW
C11 543915 WATER PIPE
C12 546548 WATER PIPE SCREW
C13 543916 BAR BRACKET
C14 547856 CLUTCH KIT
C15 543928 CLUTCH SPRING
C16 544137 SHIELD
C5
C1
C3
C4
C6
C2
C14
C15
C11
C7
C8
C9
C10
C13
C16
C12
4. SPARE PARTS DIAGRAM

ICS 695XL Specifications

General

Brand	ICS
Model	695XL
Category	Chainsaw
Language	English
