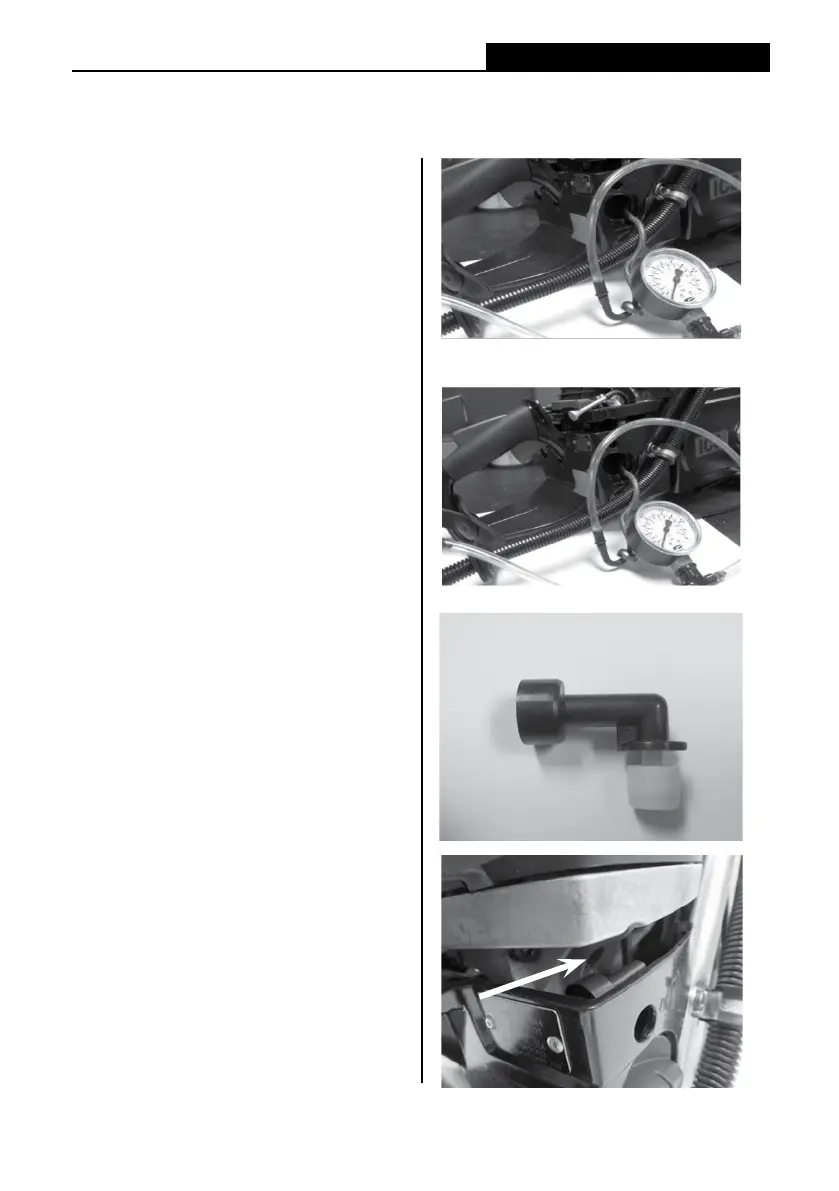

695XL SERVICE MANUAL
24.4
Test the main fuel pick-up for leaks.
Install the pressure gauge and bulb to the
lter end of the fuel line.
Pressurize the tube to 7psi (0.5 bar)
If the pressure does not maintain,
separate the fuel line from the carburetor
24.6
The fuel tank breather stabilizes the
pressure in the fuel tank preventing both
excessive pressure, which could ood
the engine and negative pressure which
could starve the engine of fuel.
24.5
Plug one end of the fuel pick-up tube.
Pressurize the tube to 7 psi (0.5 bar).
If the pressure holds, the leak has been
isolated to the carburetor. Refer to the
Walbro Carburetor Service Manual.
http://wem.walbro.com/distributors/servicemanuals
24.7
The fuel breather is located above the
fuel cap on top of the fuel tank.
24. FUEL SYSTEM
