TUNNEL MASTER JR MANUAL
System Hardware 16
Anti Collision

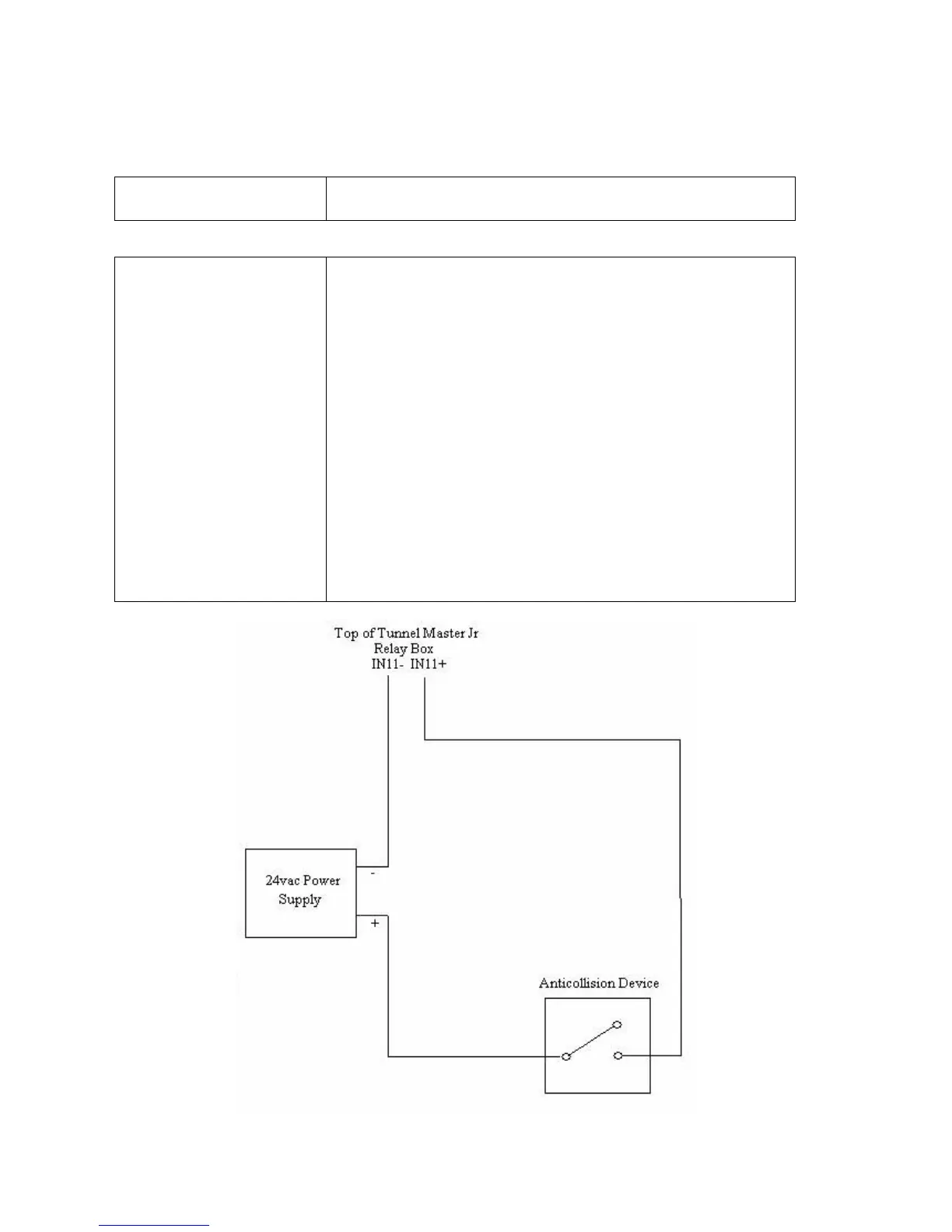

Anti Collision Wiring
Diagram
The following diagram shows how to wire an anti collision
system into the Tunnel Master Jr.
Important!
The anti-collision on the Tunnel Master Jr. is a function to
help prevent cars from running into each other at the exit
end of the tunnel. In order for this to work you need an anti-
collision device mounted in the tunnel at the spot where you
could have a potential collision.
The process consists of two variables in order for the
Tunnel Master Jr. to go into an anti-collision panic. The first
variable is for the Jr. to see a car through some sort of
sensing device. The second variable is the Anti-collision
start time in wash settings on the Jr. When a car is in the
sensing device and a second car reaches the Anti-collision
start time, the system will go into a panic until the sensing
device is cleared. The system must also have a panic circuit
wired in for this function to be able to restart the conveyor.
(See the TMJ conveyor enable circuit drawing )
