PRODUCT DESCRIPTION
The ICT Intelligent DIN Power Distribution Unit (PDU) is designed to provide DC
power distribution to 6 individual outputs protected by GMT type fuses that are
rated up to 15A each. DC outputs can be turned on and off remotely, allowing
connected loads to be power-cycled through the Ethernet connection. Fuses are
located on the front of the PDU for monitoring and replacement. Combined with
the ICT DIN 360 watt Power Supply, remote monitoring of battery current, voltage
and temperature, low voltage disconnect set points and battery charge current
Alarm settings are available through the Ethernet controller and user interface.
There are 4 digital alarm inputs on the top of the unit for connecting external
sensors. System voltage, system current, output currents, fuse status, and alarm
input status can be monitored through Ethernet communication. Fuse status is
also displayed by an LED indicator located over each fuse. Form “C” alarm contacts
(C/NO/NC) are provided on the top of the unit which can be connected to an
external alarm circuit for monitoring alarms. Remote monitoring is available
through an Ethernet port on the front of the unit. The unit has a secure built-in
web server with an embedded web-based GUI that can be accessed using any
standard commercial web browser. The web server not only displays PDU
information, it can also be set up to send an alarm to user-defined email accounts
in the event a fault occurs. The web server can also be used for data logging of up
to 30 days of time stamped event information.
FRONT PANEL
1. 2-pin input connector
2. Form C / digital alarm connector
3. RJ45 Ethernet port
4. RJ11 serial port for communication with
ICT DIN Power Supply
5. FUSE STATUS LEDs
Turns on when a fuse is blown.
6. Location of the GMT fuses rated up to
15A.

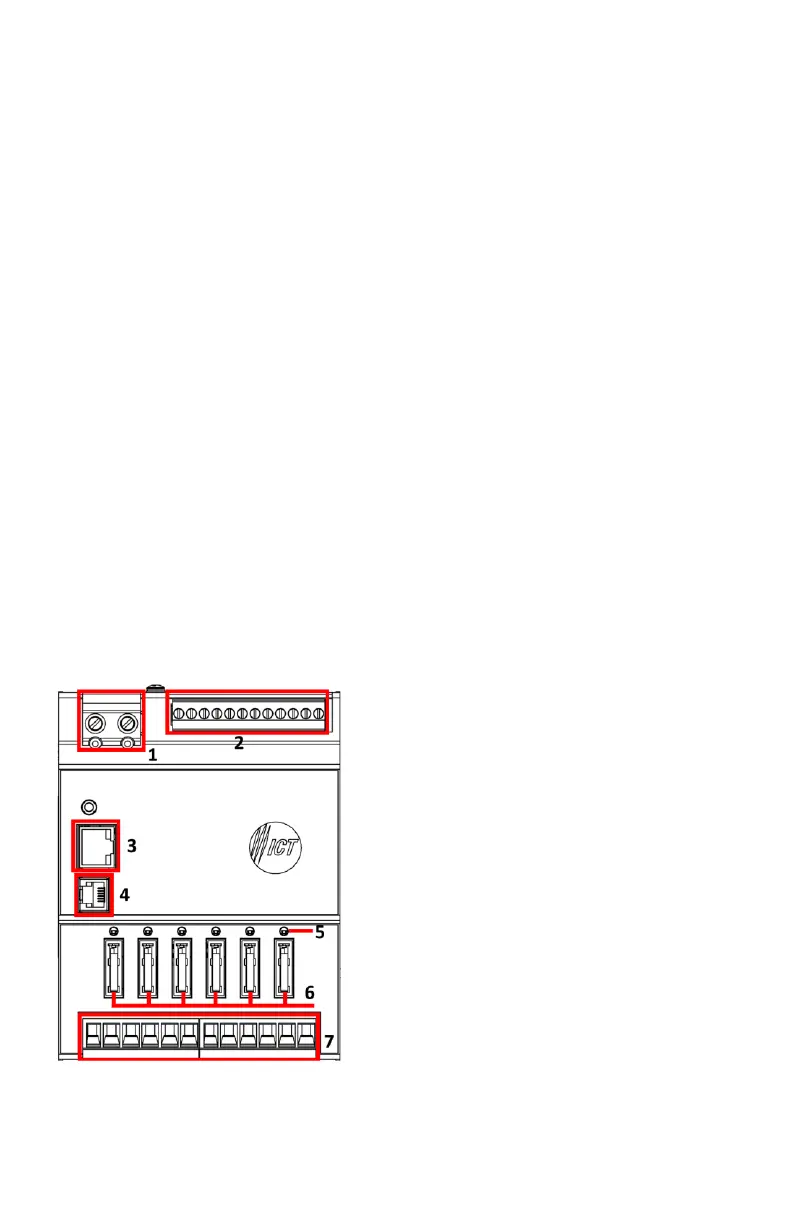

Figure 1. Front View of ICT-DIN-PDU6
