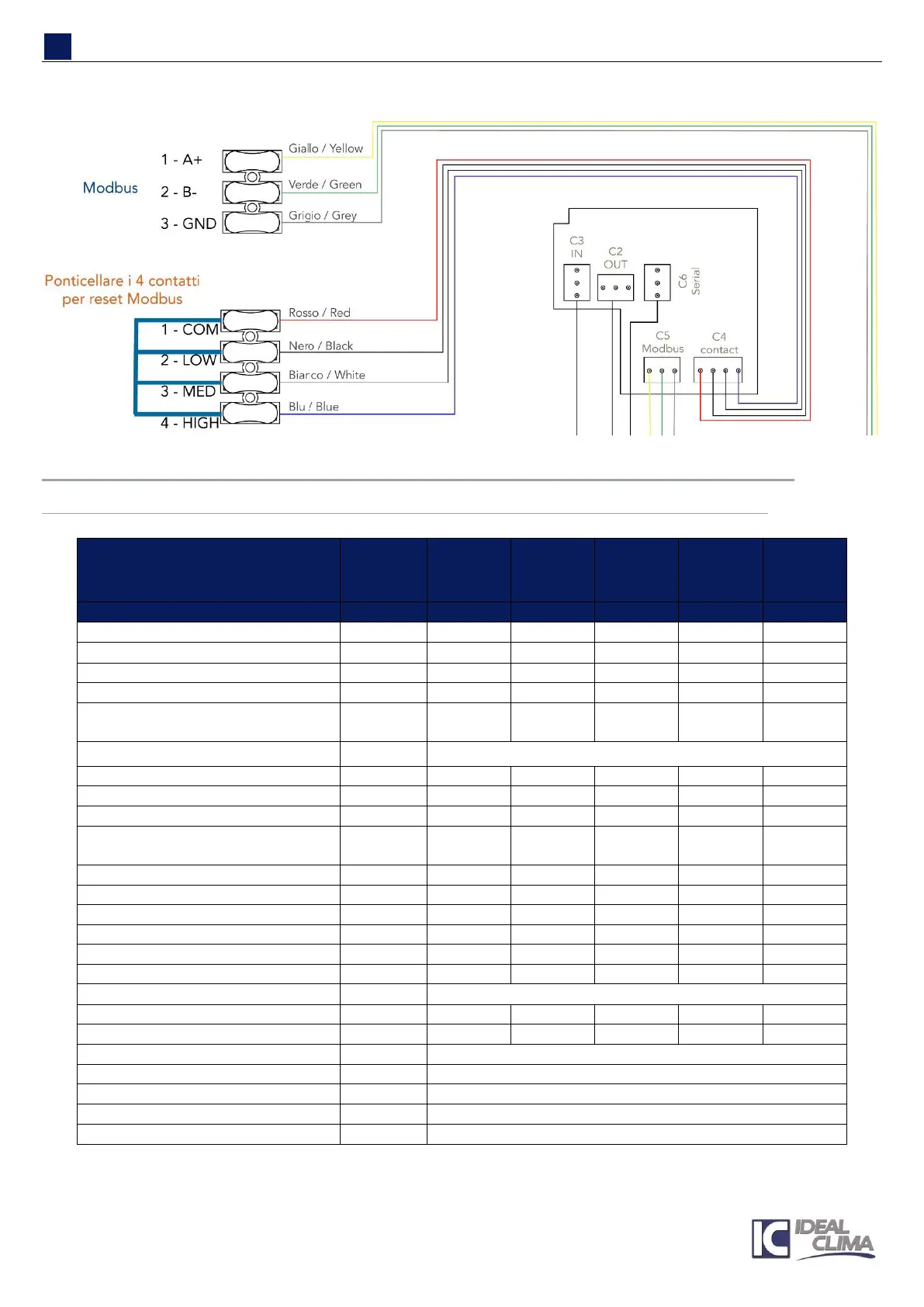

16 TECHNICAL DATA
16.1 TABLE DATA
Description
IKARO
HW 180
IKARO
HW 250
IKARO
HW 350
IKARO
HW 500
IKARO
HW 750
Code
THE01D
THE02D
THE03D
THE05D
THE07D
Total Cooling Power 7°C (1)
W
1’112
1’303
1’689
2’570
3’330
Sensible cooling Power
W
890
1’072
1351
2’107
2’720
Water flowrate
l/min
3,17
3,75
4,83
7,92
9,67
Pressure drop Ikaro HW only
kPa
5,25
6,9
11
27
39
Pressure drops 2- or 3-way valve
KVs=1,7
kPa
1,4
2
3,2
8,7
13
Heating Power 45 °C (2)
W
1’308
1’629
2’069
3’260
4’229
Water Flowrate
l/min
3,7
4,7
5,9
9,3
12,1
Pressure drop Ikaro HW only
kPa
6,1
9,1
14,4
37,6
57,4
Pressure drops 2- or 3-way valve
KVs=1,7
kPa
1,9
3,1
4,8
12
20,3
Air flowrate max speed.
mc/h
180
250
340
520
730
Sound pressure Max. speed (*)
dB (A)
13
16
21
27
42
Sound pressure Med. speed (*)
dB (A)
11
13
18
25
39
Sound pressure Min. speed (*)
dB (A)
11
12
16
23
37
Mains and protection grade
V/ph/Hz
230/1+N/50----IP23
Electr. consumption max. speed
W
12,6
15
18.3
28
42
Max. Current
A
0,14
0,15
0,16
0,20
0,22
Water connections
inch
Rc ½”
Water content
liter
1,2
Drain pipe diameter
mm
DN 15
Max. Working pressure
MPa
1,6
Net weight without water
Kg
13
(1) Water Temp. Feed 7°, Δ T 5 °C, Room Temp. 27 °C UR 47% (UNI EN 1397 :2015)
(2) Water Temp. Feed 45°, Δ T 5 °C Temp. Ambiente 20 °C (UNI EN 1397:2015)
(*) Sound pressure level (dBA) r=1,5m, Q=1(UNI EN ISO 3741:2010)
