19.3 WALL METAL MOUNTING PLATE AND CONDENSATE DRAIN
DIMA

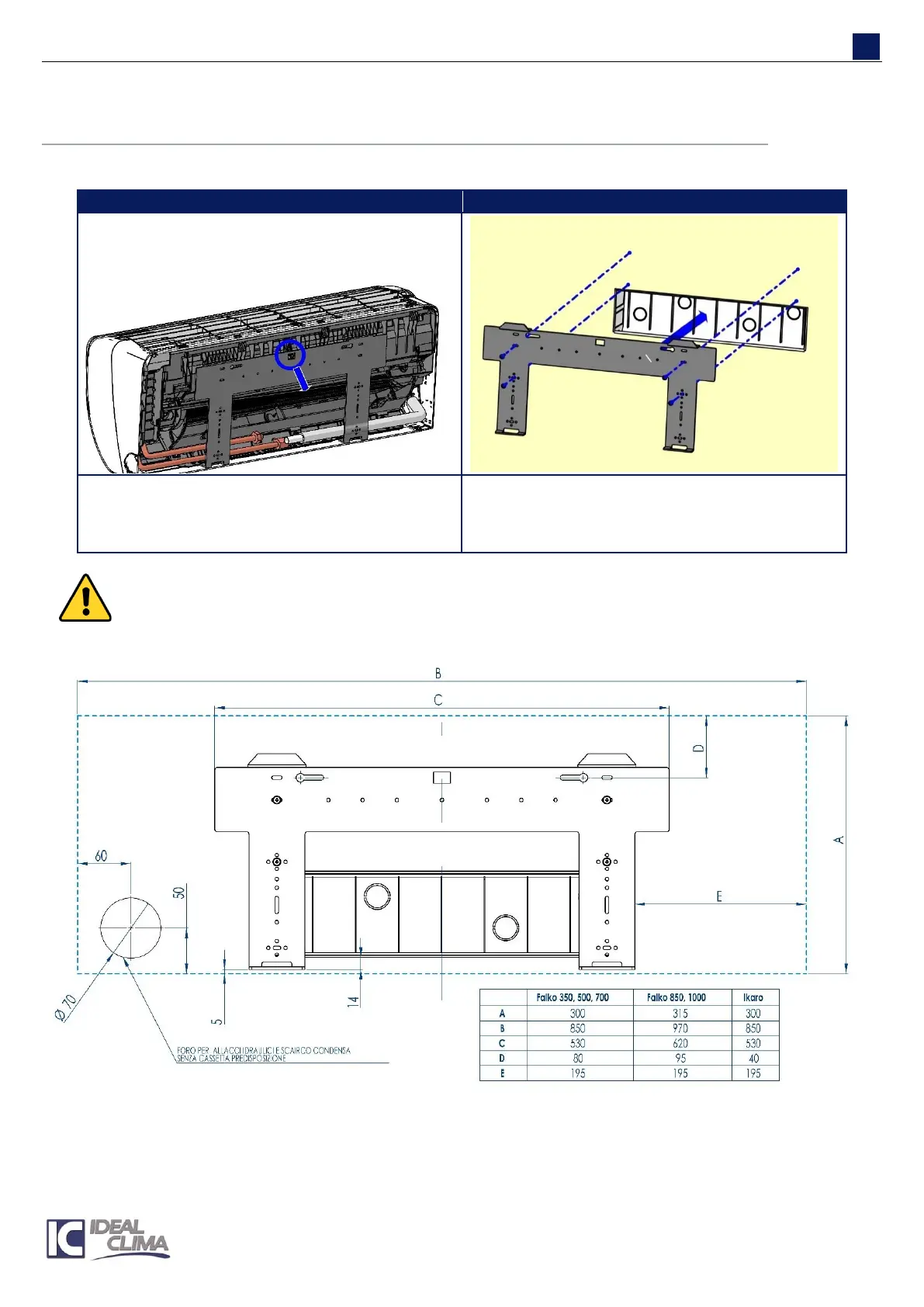

The metal plate is fixed on the back of the
appliance with a screw. After removing the
screw, the mounting plate is detached with a
light sliding down.
With the help of a level secure the metal plate
to the wall with screws and dowels.
Check that the mounting plate is level: Incorrect angles can cause condensation overflow. If there is
a predisposition box, the 65mm hole in the wall is not needed, while the vertical dimensions of the
drawing must be respected.
CONDENSATE DRAIN
The condensate drain pipe (DN15) can be inserted in the 65mm hole drilled in the wall, or connected at the
bottom of the predisposition flush box.
