Comfosplit IKARO HW – User and Installer manual EN
© Ideal Clima - Page 61 of 68
UPSTREAM CONNECTION TO THE LEFT
UPSTREAM CONNECTION TO THE RIGHT

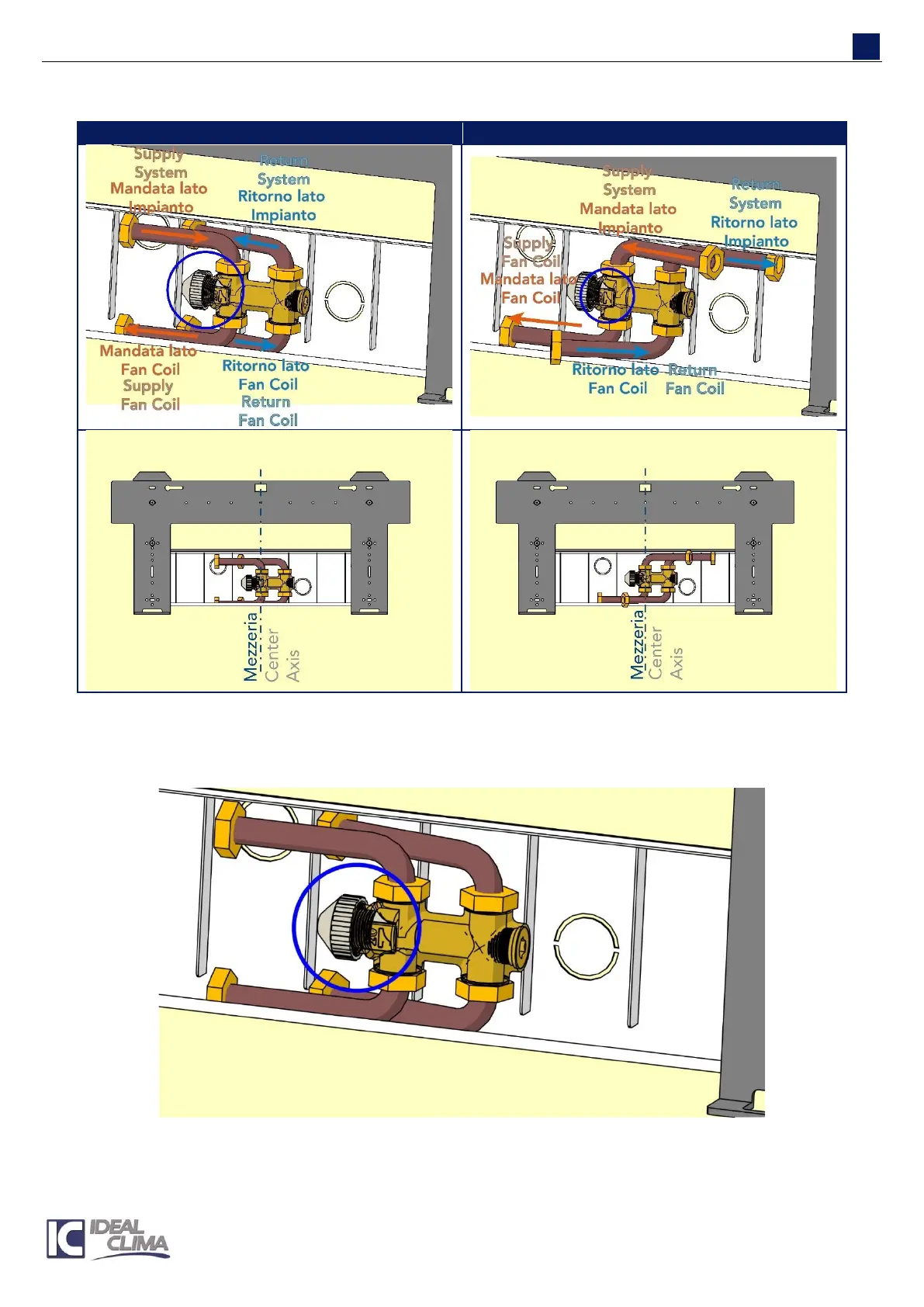

Once the valve is positioned, connect the supply and return pipes to the upstream system.
Make sure, for a correct operation of the 3-way valve, that the mark of the flows on the valve body is oriented
as in the picture below:
