Water supply pipes
Water supply pipes can be from any direction. Where supplies are provided from above, this normally
permits better drain down of pipe-work. Pipe-work should be secured to the wall or panel using suitable
xing clips.

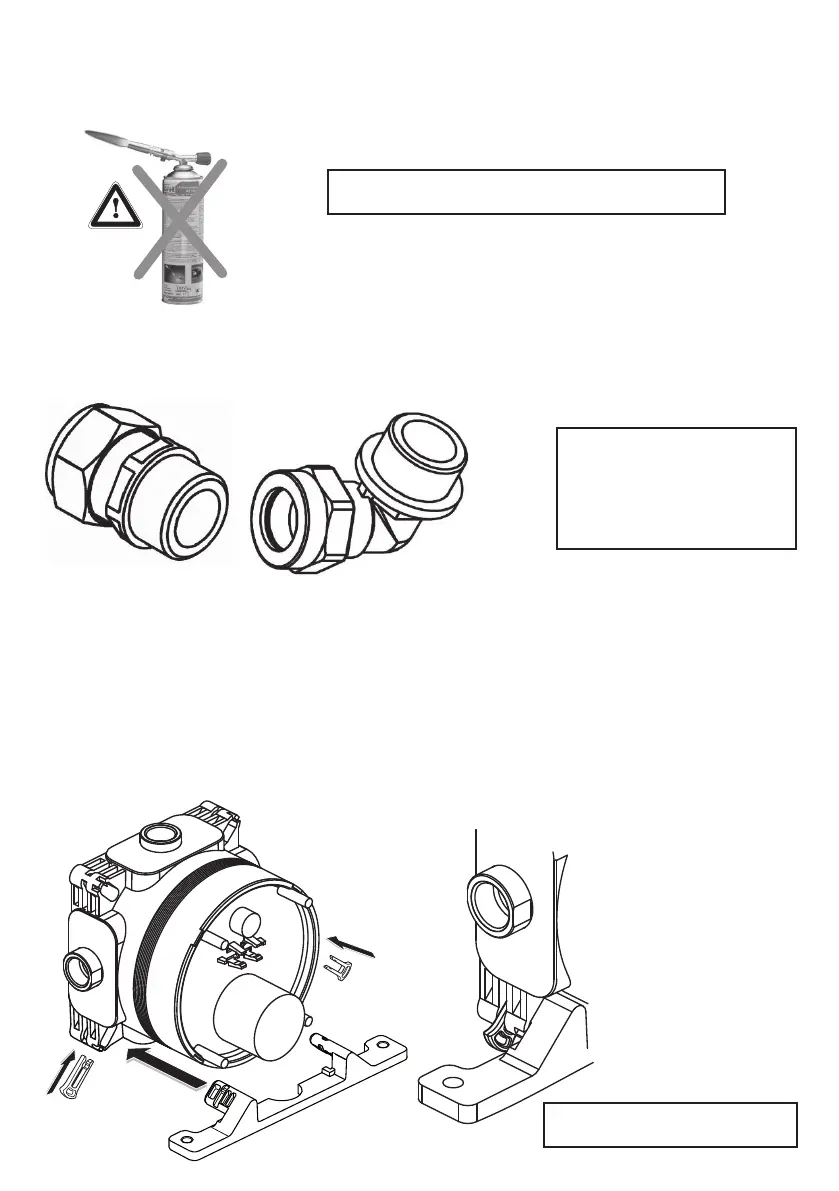

DO NOT apply heat near this product. Heat generated
by soldering could damage plastic parts and seals
Suitable pipe connectors
All 4 connections to this product are threaded G1/2” female. Suitable pipe connectors can be obtained from
all good plumbers merchants (not supplied).
Examples of a straight coupler and an elbow: 15mm compression to G1/2” male are shown here:
Remember: a blanking plug
is supplied (see 4.6) & can be
used on one outlet.
Use: elbows on the inlets &
straight couplers on the outlets.
5.2 Mounting methods
With ref to 4.3, decide on the most appropriate mounting method for the wall type.
If using options B or C, attach the mounting bracket (or xing legs) to the valve-box.
Using mounting bracket (method B).
To attach the mounting bracket to the valve-box:
First decide on which one of the four sides of the valve-box will be used for mounting.
Insert the two lobes of the bracket into an appropriate pair of slots in the valve-box.
If necessary, the bracket can be inserted into the valve-box from the rear.
Once the bracket is fully inserted into the valve-box, push the two latching clips home into their slots until
they click in place.
Valve-box with mounting
bracket & latching clip tted.
For mounting bracket dimensional
information see page 2
15
