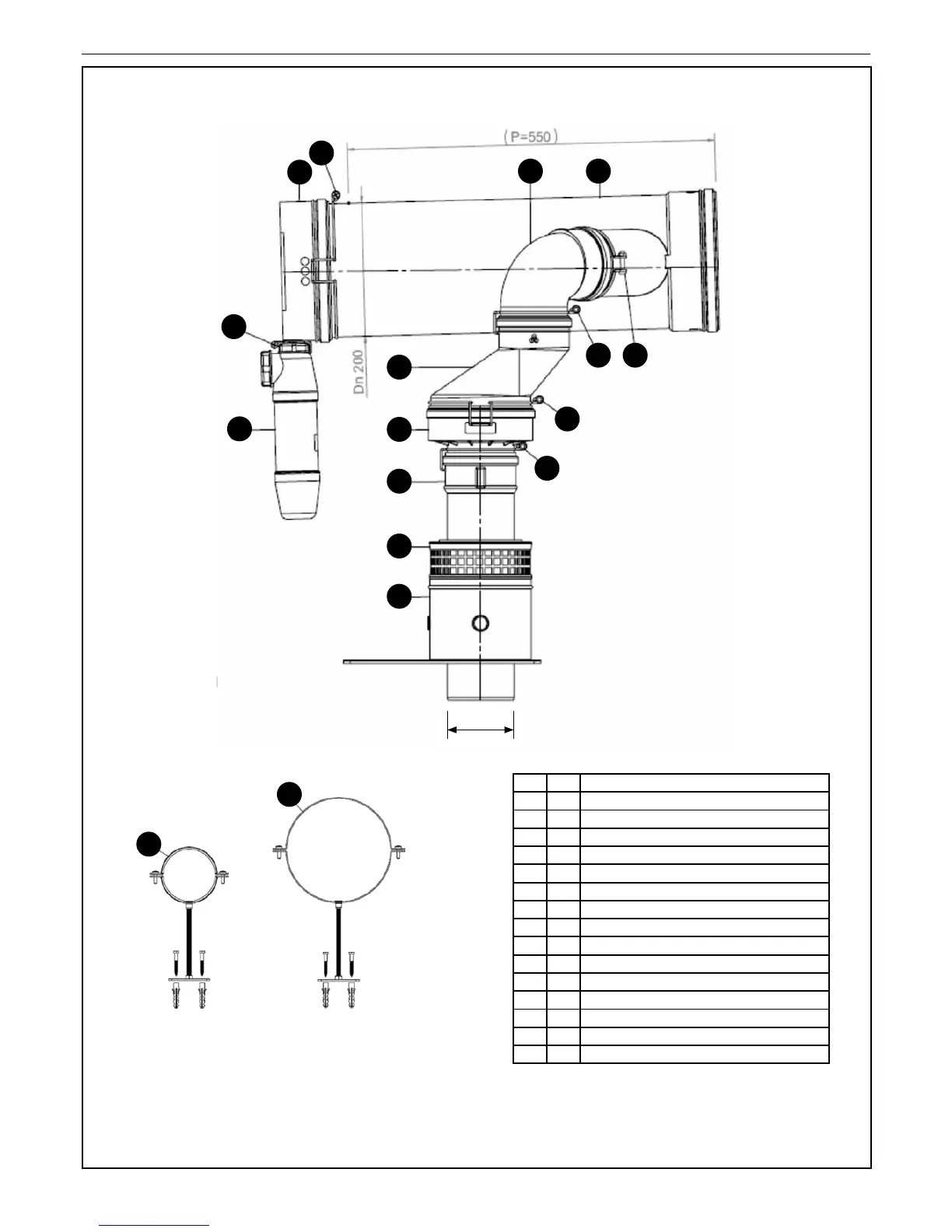

11EVOMAX - MULTILINE FLUE KITS
STARTER KIT COMPONENTS FOR 100-150 MODELS [UIN 210268]
15
14
1
2
3
4
5
10
11
10 10
9
13
8
12
6 7
POS. QTY. DESCRIPTION
1 1 ADAPTER CONCENTRIC PP 100/150 + MP
2 1 AIR INLET GRILL AL 150-100 H=85
3 1 EXTENSION PP 100x500
4 1 VALVE PP 100-150
5 1 REDUCER EXC. PP 150-100
6 1 ELBOW SHORT PP 100 90°
7 1 COLLECTOR PP 200x610 1x100 45°
8 1 COVER PP 200 + CONDENSATE
9 1 SYPHON PP H=150
10 3 LOCKING CLIP 100
11 1 LOCKING CLIP 150
12 1 LOCKING CLIP 200
13 1 LOCKING CLIP 32
14 1 WALL BRACKET 100 RAL-9016
15 2 WALL BRACKET AL 200 + WALL PLATE
Dn 100
