EXTENSION KITS
12

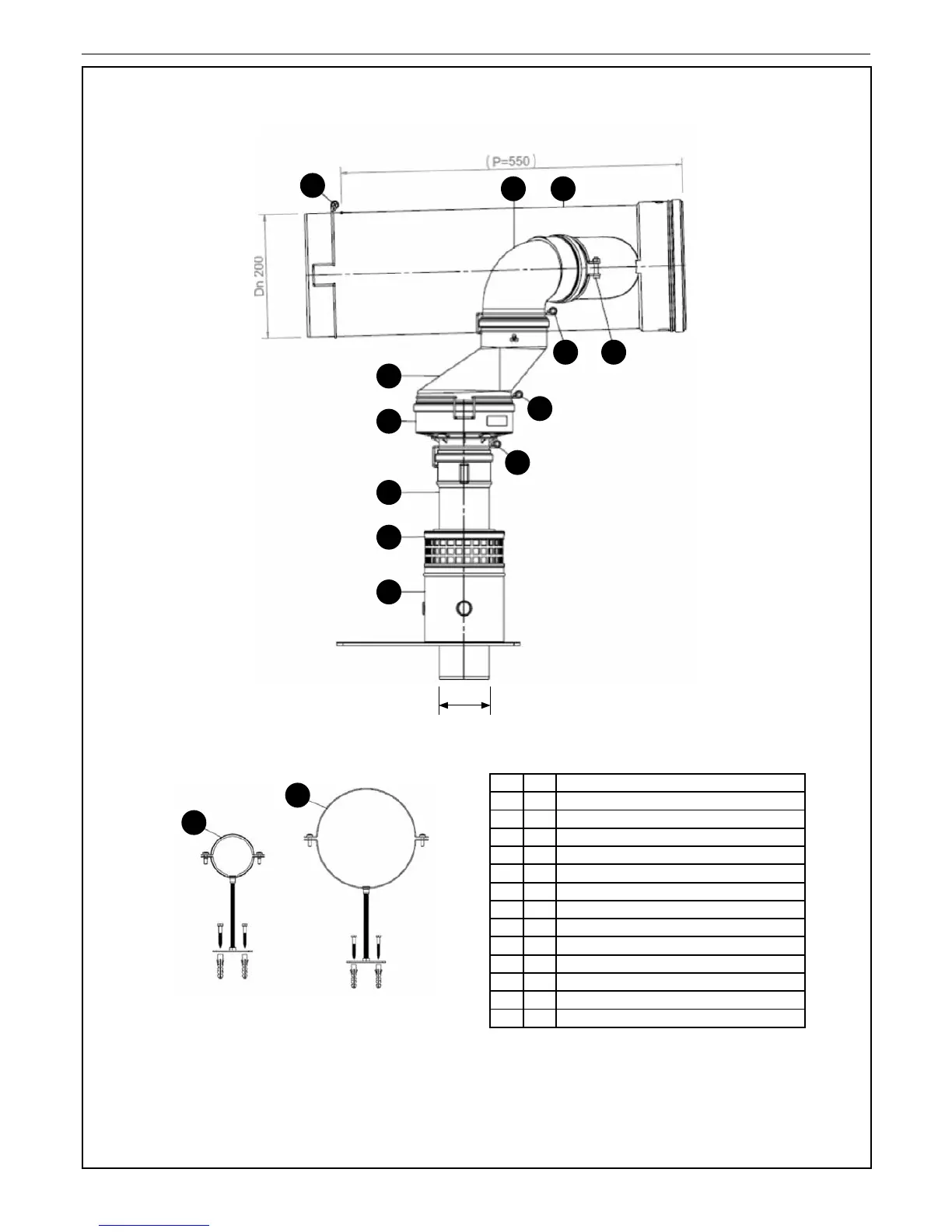

EVOMAX - MULTILINE FLUE KITS
EXTENSION KIT COMPONENTS FOR 30 -80 MODELS [UIN 210265]
1
12
13
3
2
4
5
11
6 7
10 10
9
8
POS. QTY. DESCRIPTION
1 1 ADAPTER CONCENTRIC PP 80/125 + MP
2 1 AIR INLET GRILL AL 125-80 H=85
3 1 EXTENSION PP 80x500
4 1 VALVE PP 80-150
5 1 REDUCER EXC. PP 150-100
6 1 ELBOW SHORT PP 100 90°
7 1 COLLECTOR PP 200x610 1x100 45°
8 1 LOCKING CLIP 80
9 1 LOCKING CLIP 150
10 2 LOCKING CLIP 100
11 1 LOCKING CLIP 200
12 1 WALL BRACKET 80 RAL-9016
13 1 WALL BRACKET AL 200 + WALL PLATE
Dn 80
