Installation and Servicing
SECTION 3 - SERVICING
1. Refer to Section 3.8.
2. Pull off the rubber pipe at the sump drain.
3. Disconnect the condensate drain pipe.
4. Turn the siphon clockwise to disengage and lift
to remove.
Note. Keep siphon upright when removing.
5. Clean siphon with water or replaced if
damaged.
6. Re-assemble in reverse order.
7. When re-assembling ensure the trap is full of
water.
8. Check that the boiler operates in both DHW
and CH modes.

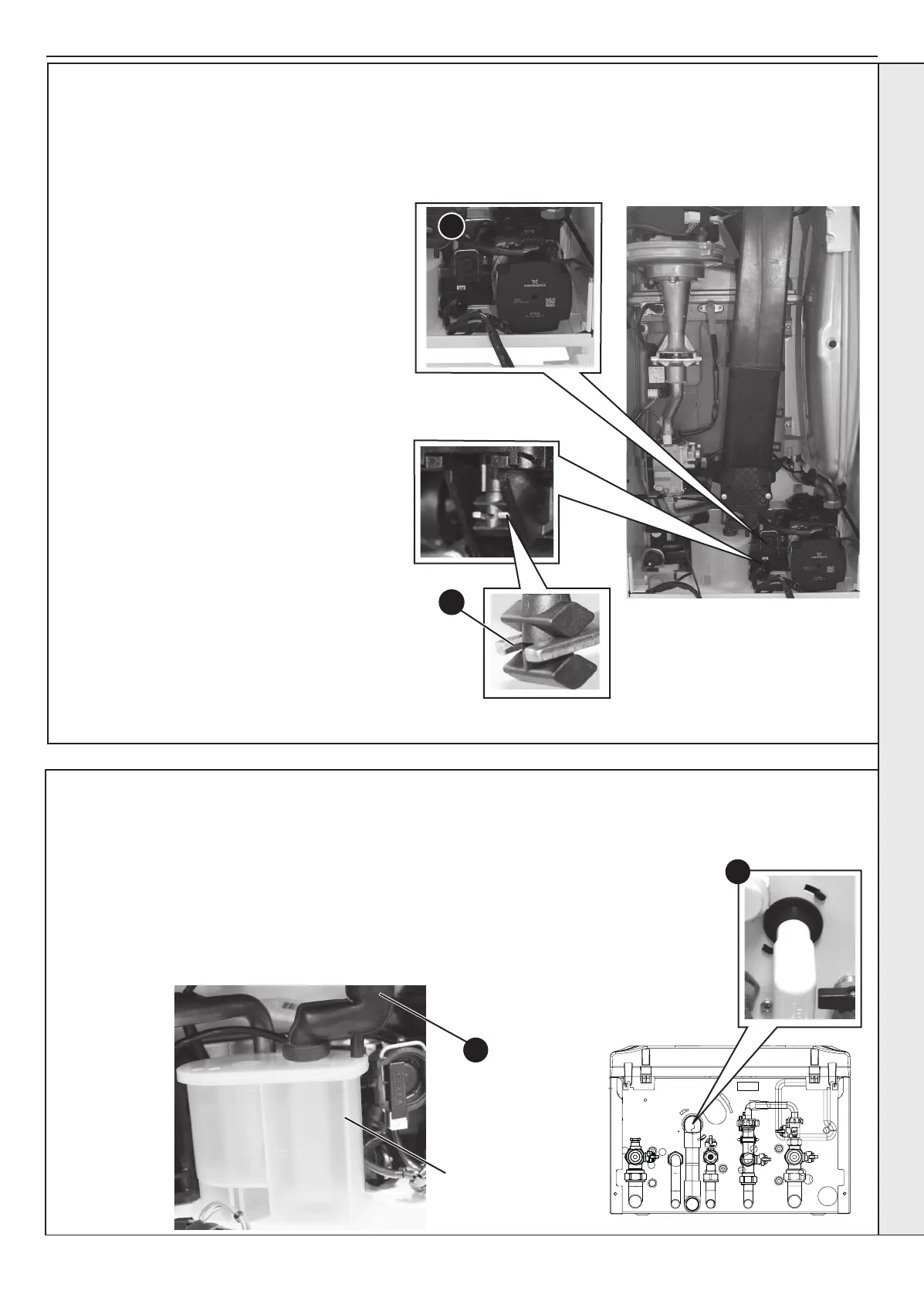

3.18 CONDENSATE TRAP/SIPHON REPLACEMENT
3
3.17 DIVERTER VALVE ACTUATOR REPLACEMENT
Refer to Section 3.8.
To remove the motor:
1. Remove the condensate trap/siphon. Refer to
Section 3.5.
2. Place a at bladed screwdriver in the actuator
slot provided and ease out the actuator.
3. Before replacing the diverter valve actuator
proceed as follows:
a. Ensure that the switched live to the boiler
is off and that all DHW taps are shut.
b. Press and hold the “RESTART” and
“FUNCTION” buttons together for more
than 5s, the last 3 faults will then be
shown in sequence before “SL” is shown
c. Press the “FUNCTION” button, “SH” will
be shown
d. Press the “FUNCTION” button, “UF” will
be shown
e. Press the “FUNCTION” button, “DU” will
be shown
f. Press the “FUNCTION” button and the
diverter valve will move to the mid-position
4. Fit the new motor ensuring the arm is correctly
engaged in the metal fork and re-assemble in
reverse order ensuring the condensate trap/
siphon is relled with water.
5. Check the operation of the boiler.
Note. All spares will be delivered in mid-position
therefore ignore point 3 and proceed to point 4.
