IDEAL Logic+ SYSTEM 15

16
INSTALLATION
Ideal Logic + System - Installation and Servicing
FLUE OUTLET

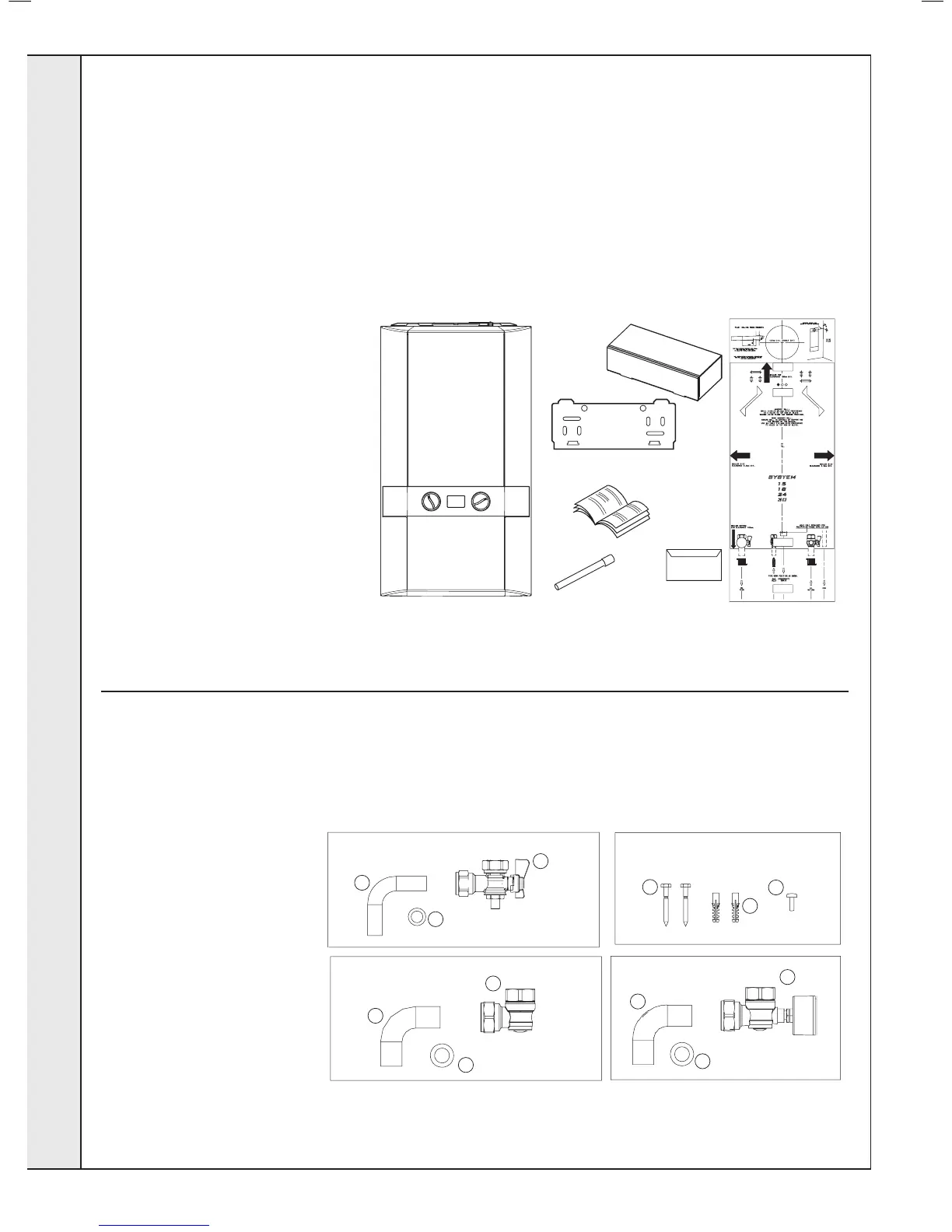

6 UNPACKING
The boiler is supplied fully assembled in Pack A. A telescopic or non-telescopic ue assembly for rear or side ue outlet in Pack B
is suppled as a separate order.


A Boiler
B Hardware Pack Box
C Wall Mounting Plate
D These Installation/Users Instructions
E Wall Mounting Template
(located on internal protective packaging)
F Safety Valve Drain Pipe
G Boiler Guarantee & Registration Pack
C
A
D
F
B
E
G
Boiler Guarantee
HARDWARE PACK CONTENTS
Gas Valve Pack
1. Pipe - Gas Inlet
2. Washer - Gas (blue)
3. Gas Cock
Return Valve Pack
1. Pipe CH Return
2. Washer CH
3. Valve Return
Accessory Pack
1. Screw (x2)
2. Wallplug (x2)
3. Turret Clamp Screw (spare) (x1)
Flow Valve Pack
1. Pipe CH Flow
2. Washer CH
3. Valve Flow (with gauge)
Gas Valve Pack
Accessory Pack
Flow Valve Pack
Return Valve Pack
1
1
1
1
2
3
3
2
2
2
3
3
INSTALLATION
