IDEAL Logic+ SYSTEM 15 User Manual

37
SERVICING
Ideal Logic + System - Installation and Servicing
38  

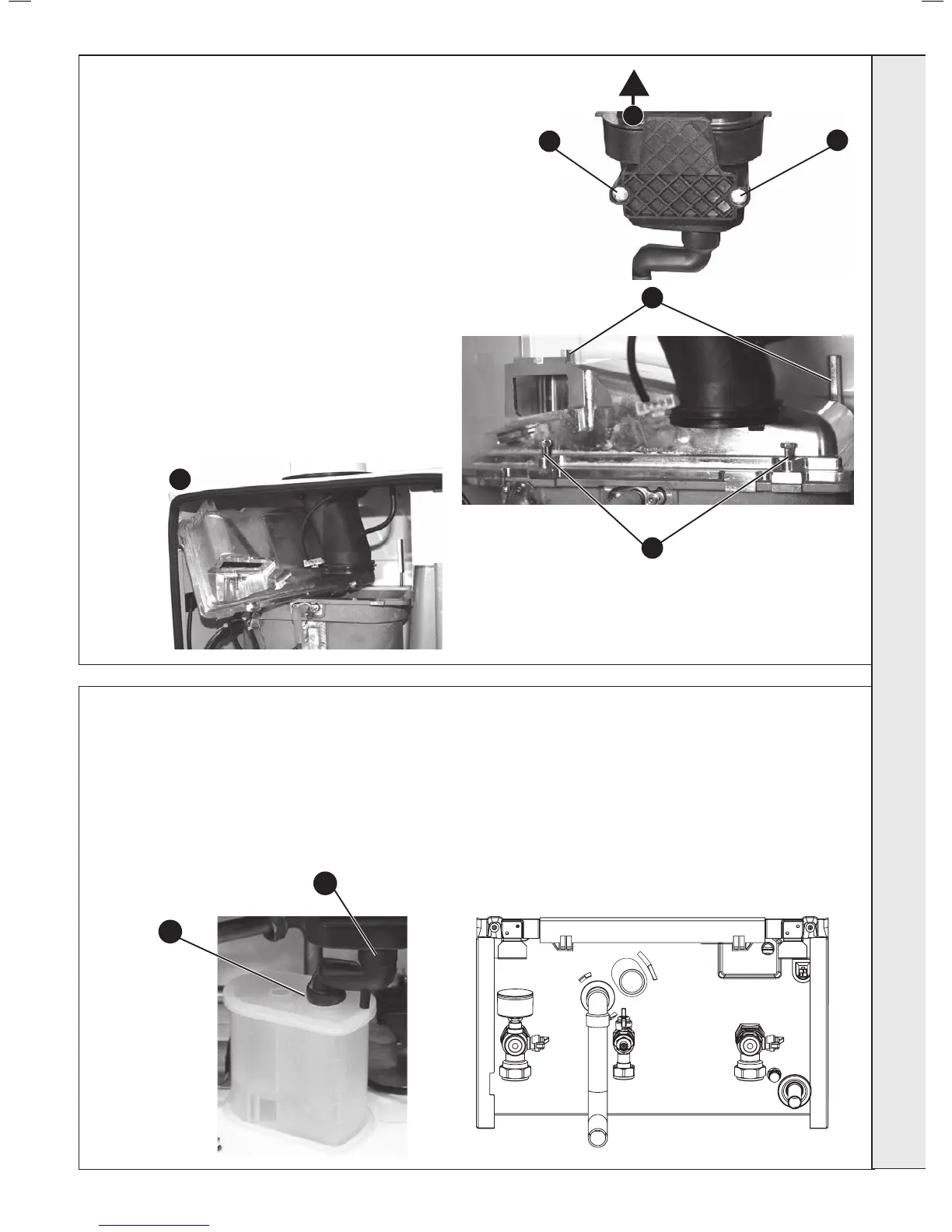

1. Ensure the sump is fully drained
2. Undo the two screws and remove the sump cover retaining the lower
ue manifold.
3. Lift the manifold to clear the bottom sealing gasket and remove
manifold.
4. Remove the 2 burner front xing screws and loosen the 2 rear
extended nuts by at least ten turns.
5. Lift off the burner from the combustion chamber. To facilitate the
removal angle the burner as shown.
IMPORTANT
The burner head is a ceramic plaque construction. Care must be
taken to ensure that
its face as this may cause damage to the ceramic.
6. Brush off any deposits that may be on the ceramic with a
SOFT brush.
7. Inspect the sealing gasket around the burner for any
signs of damage. Replace as necessary.
1. Pull off the rubber pipe noting the position and ush out any deposits with
clean water.
2. Rell the siphon with water.
3. Replace the rubber pipe connector with the twin wall seal tted to the
condensate siphon.
39 
3
2
2
4
4
5
1
3


IDEAL Logic+ SYSTEM 15 Specifications

General

Model	Logic+ SYSTEM 15
Category	Boiler
Output Rating	15 kW
ErP Rating	A
Fuel Type	Natural Gas
Dimensions (H x W x D)	700 x 395 x 278 mm
Type	System Boiler
Mounting	Wall Mounted
ERP Heating Efficiency	93%
Standard Warranty	7 Years
