IDEAL Vogue Combi c26 Installation And Servicing

39
INsTALLATION
vogue combination boiler - Installation and Servicing
39
INsTALLATION

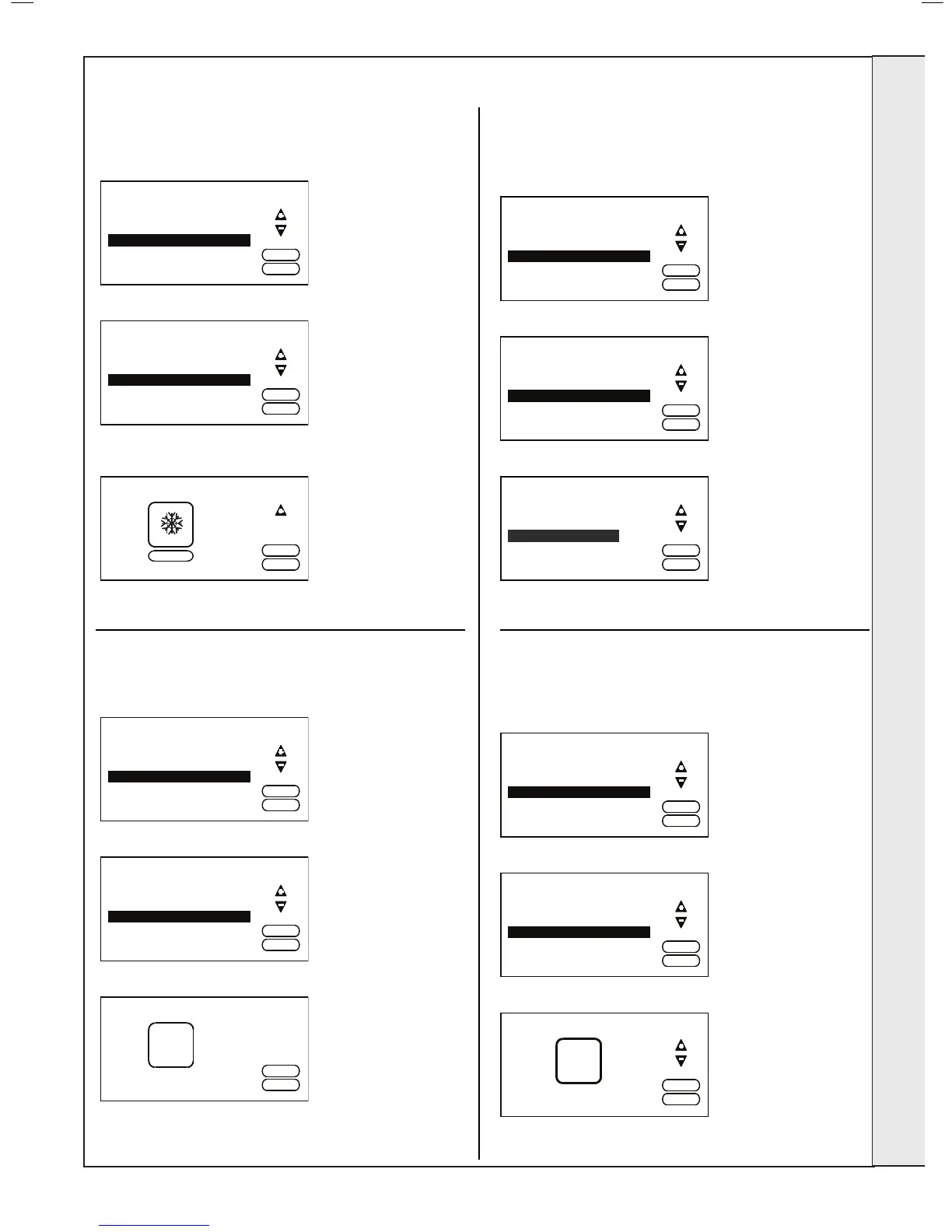

40 MENU OpERATION
sysTEM FROsT pROTECTION
This feature can only be accessed if an outside sensor
has been connected. The pump will run continuously if the
outside temperature is less than 5
o
C.
MENU
Vent System
Switch Pre
-Heat
Maximum Flow Temperature
Outside Sensor Slope
Exit
Enter
Press “-” until the following screen is displayed.
MENU
Show Efficiency Level
System Frost Protection
Reset Service Time
Plot Graphs
Exit
Enter
Press ENTER and a screen similar to the following will be
displayed.
Exit
Enter
System Frost Protection
Pump may run during night
SAVE press
ON press
OFF
Press “+” to activate or “-“ to de-activate.
Press ExIT twice to return to normal operation.
REsET sERVICE TIME
If the boiler has not been serviced within the last 12 months
then a message will be displayed indicating this. To reset this
timing proceed as follows.
MENU
Vent System
Switch Pre
-Heat
Maximum Flow Temperature
Outside Sensor Slope
Exit
Enter
Press “-” until the following screen is displayed.
MENU
System Frost Protection
Reset Service Time
Plot Graphs
Bus Address
Exit
Enter
Press ENTER and the following screen will be displayed.
Exit
Enter
Reset Service Time
279
Reset press
Service
due
days
Press ENTER to reset.
Press ExIT to return to normal operation.
pLOT gRAphs
To plot graphs of Water Pressure, Switched Live, DHW Flow
Rate, DHW Temperature, Flow/Return Temperature, Flame
Status, Outside Temperature or DHW Switched Live press
ENTER and the following screen will be displayed.
MENU
Vent System
Switch Pre
-Heat
Maximum Flow Temperature
Outside Sensor Slope
Exit
Enter
Press “-“ until the following screen is displayed.
MENU
Reset Service Time
Plot G
raphs
Bus Address
Maximum Flow Temperature
Exit
Enter
Press ENTER and the following screen will be displayed.
Water Pressure
CH Switched Live
Hot Water Flow Rate
Hot Water
Temperature
Exit
Enter
Plot Graphs: S
elect
Data
Press “+” & “-“ to highlight the desired input and then ENTER to
select. Press ExIT 3 times to return to normal operation.
BUs ADDREss
This feature is only required if the boiler is connected to an
Ideal Cascade Manager (available 2014). Each boiler in the
cascade should be congured to a different bus address. To
change the bus address press ENTER.
MENU
Vent System
Switch Pre
-Heat
Maximum Flow Temperature
Outside Sensor Slope
Exit
Enter
Press “-“ until the following screen is displayed.
MENU
Plot Graphs
Bus Address
Maximum Flow Temperature
Installer’s Details
Exit
Enter
Press ENTER and a screen similar to following will be displayed.
Only changed for
Multiple Boiler Installations
Bus Address
Exit
Enter
02
Press “+” or “-“ to change the address.
Press ENTER and then ExIT to return to normal operation.
INsTALLATION
