INSTALLATION
vogue system boiler - Installation and Servicing
E. FROST THERMOSTAT
E. OUTSIDE SENSOR
30

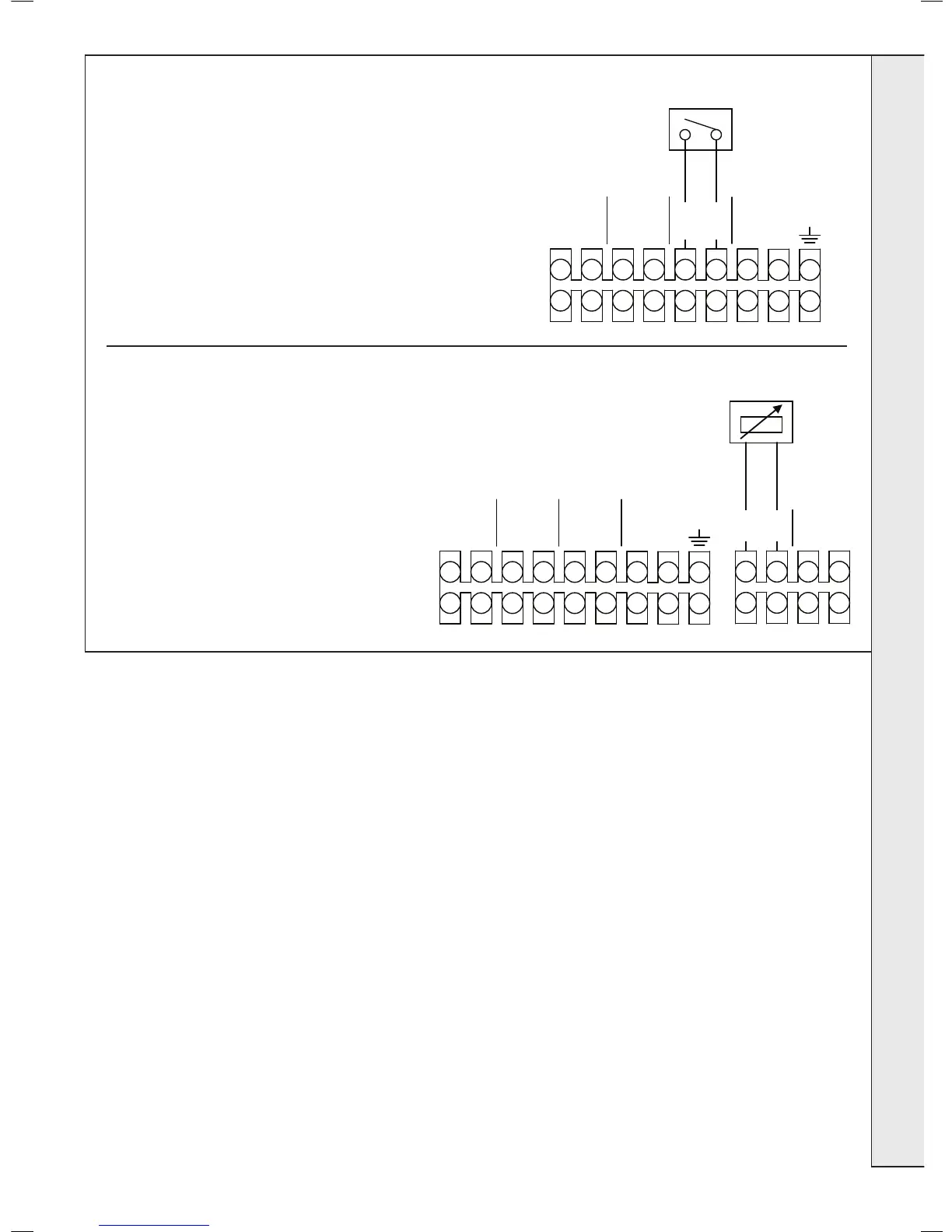

SYSTEM CONTROL WIRING
If parts of the system are vulnerable to freezing or the system
controls are likely to be left off during cold weather then a frost stat
should be tted in conjunction with a pipe thermostat. Position the
frost thermostat in the area that is vulnerable to freezing and then
connect it as shown in the diagram. If the boiler is installed in a
garage it may be necessary to t a pipe thermostat, preferably on
the return pipe work.
1. Connect the Outside Sensor across the
terminals as shown in the Diagram.
DO NOT CONNECT 230V TO THESE
TERMINALS OR THE BOILER ELECTRONICS
WILL BE DAMAGED
INSTALLATION
If parts of the system are vulnerable to freezing or the system
controls are likely to be left off during cold weather then a frost
stat should be fitted in conjunction with a pipe thermostat.
Position the frost thermostat in the area that is vulnerable to
freezing and then connect it as shown in the diagram. If the
boiler is installed in a garage it may be necessary to fit a pipe
thermostat, preferably on the return pipe work.
1. Connect the Outside Sensor across the terminals
as shown in the Diagram.
DO NOT CONNECT 230V TO THESE
TERMINALS OR THE BOILER ELECTRONICS
WILL BE DAMAGED
