To switch Cylinder &
CH Off: move the On/Off
switch into the Off position,
the screen on the right
will be shown (note: Frost
protection still active)
To switch Cylinder &
CH On: move the On/Off
switch into the On position,
the screen on the right will
be shown
To change the Boiler
Temperature Set Point:
rotate the Boiler
Temperature Control
Knob, the screen on the
right will be shown
To change the Room
Temperature Set Point
(only if Outside Sensor
connected): rotate the
Boiler Temperature Knob,
the screen on the right will
be shown

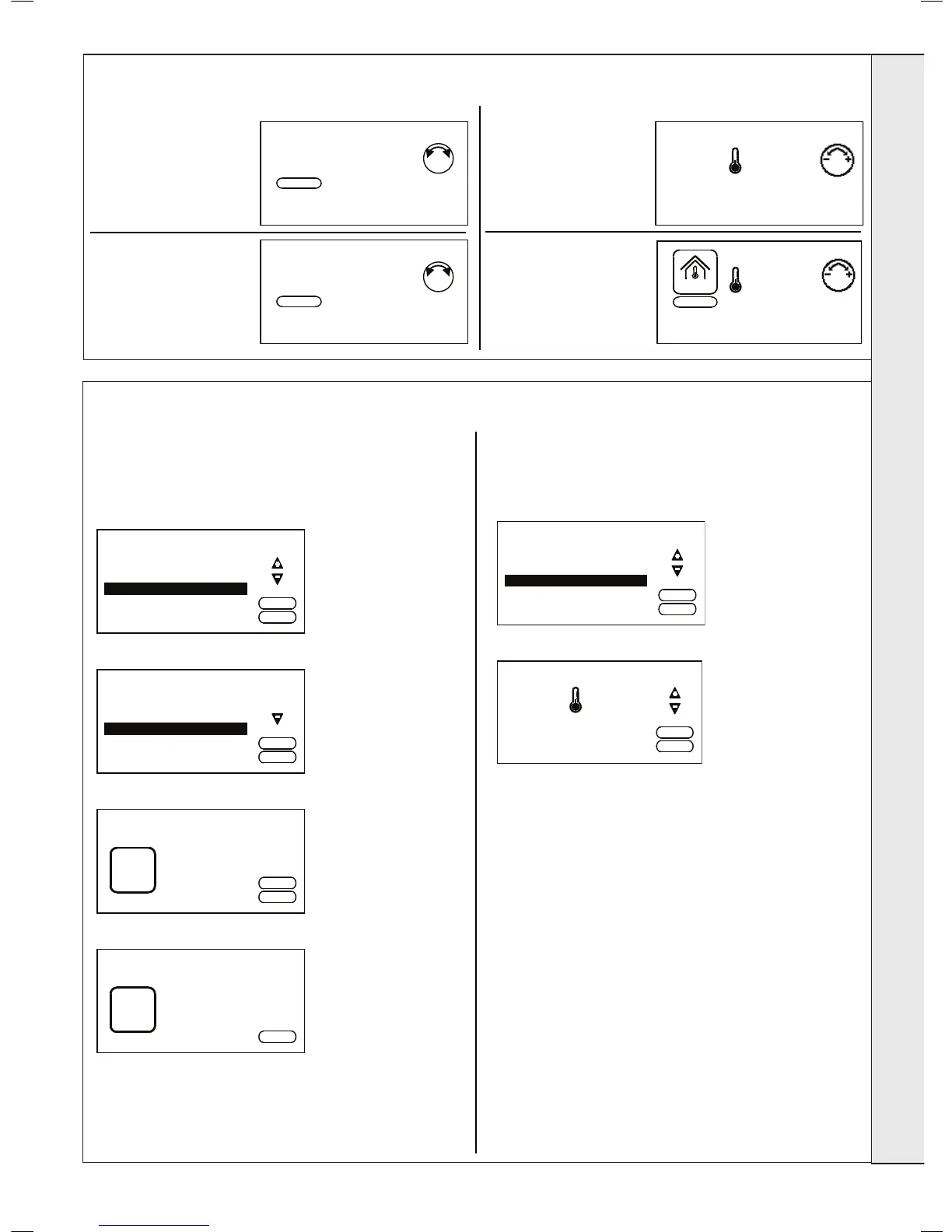

36 CHANGING SETTINGS
Boiler Switched Off
OFF
OFF
ON
Boiler Switched Off
ON
OFF
ON
70
°C
Set Boiler Temperature
ON
20
°C
Select Room Temperature
37 MENU OPERATION
VENT SYSTEM
The Vent System feature aids removal of air from the heat
exchanger. The pump will be switched on for 50s and then off
for 10s. The feature lasts for 5 minutes.
Press ENTER and the following screen will be displayed
MENU
Vent System
Maximum Flow Temperature
Outside Sensor Slope
Fault Help
Exit
Enter
Press “+” and the following screen will be displayed.
MENU
Vent System
Maximum Flow Temperature
Outside Sensor Slope
Exit
Enter
Press ENTER and the following screen will be displayed.
Vent System
Pump will be pulsed
On 60s, Off 10s
Diverter Valve
alternates CH/DHW
OFF
Exit
Enter
Press ENTER and the following screen will be displayed.
Vent System
Pump pulsed
On 60s, Off 10s
Diverter Valve
alternates CH/DHW
ON
Exit
The feature will end automatically after 5 minutes, to end
manually press EXIT.
MAXIMUM FLOW TEMPERATURE
To limit the maximum boiler temperature that can be set from
the Boiler Temperature knob press ENTER and the following
screen will be displayed (note that this could prevent adequate
room temperature being achieved in winter).
MENU
Vent System
Maximum Flow Temperature
Outside Sensor Slope
Fault Help
Exit
Enter
Press ENTER and the following screen will be displayed.
Set Maximum Flow Temperature
°C
70
Exit
Enter
Press “+” and “-“ until the desired temperature is displayed and
then ENTER followed by EXIT to return to normal operation.
