IDEAL Vogue S15

48
SERVICING
vogue system boiler - Installation and Servicing
53 REPLACEMENT OF COMPONENTS

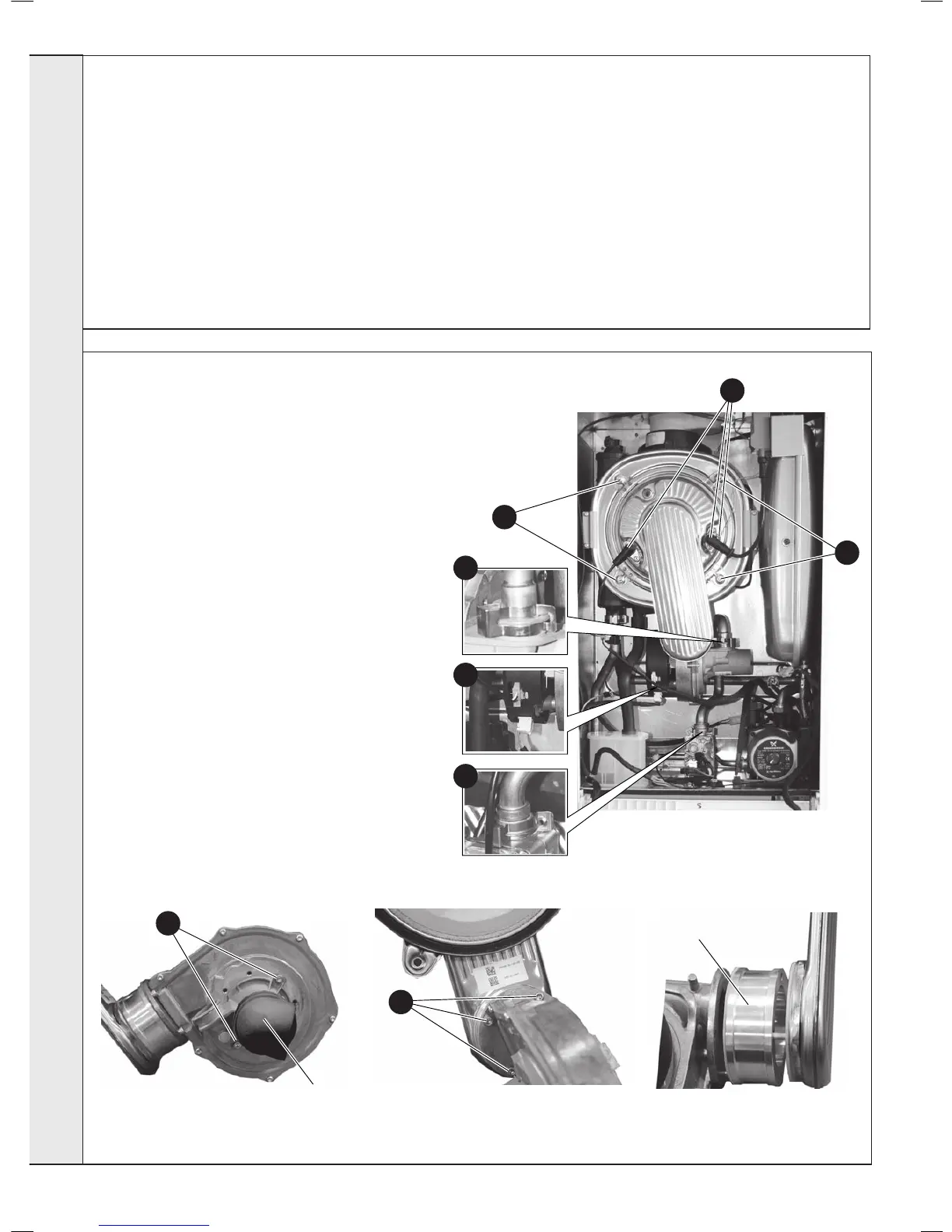

54 FAN REPLACEMENT
1. Refer to Frames 45 & 46.
2. Refer to Frame 53.
3. Remove the ignition, detection and earth leads.
4. Remove the 2 clips securing the gas inlet pipe and
remove the pipe.
5. Remove the fan leads.
6. Remove the 4 securing nuts retaining the burner/fan
assembly.
7. Remove the assembly from the heat exchanger.
8. To remove the venturi release the 2 securing screws.
9. To remove the fan release the 3 screws securing the
fan to the burner.
10. Replace the fan and ret the venturi checking the
sealing gasket is undamaged or replace as necessary,
and secure with the 2 screws
*Note a noise damper is tted to the venturi inlet on s32
models only
*Note a mounting spacer is tted to the fan outlet on
s32 models only
11. Check the operation of the boiler. Refer to Frames 32-
35.
When replacing ANY component
1. Isolate the electrical supply
2. Isolate water connections
3. Turn off the gas supply
4. Remove the front panel
5. Swing the control panel down into the service position
After replacing ANY component check operation of the boiler,
3
4
4
6
6
8
Noise Damper
Fitted only to s32
model
Mounting Spacer
Fitted only to s32
model
9
including gas tightness, gas rate and combustion
test.
IMPORTANT. when work is complete, the front
panel must be correctly retted - ensuring that a
good seal is made.
THE BOILER MUST NOT BE OPERATED
WITHOUT THE FRONT PANEL FITTED.
5
SERVICINGSERVICING
