SERVICING
vogue system boiler - Installation and Servicing
51

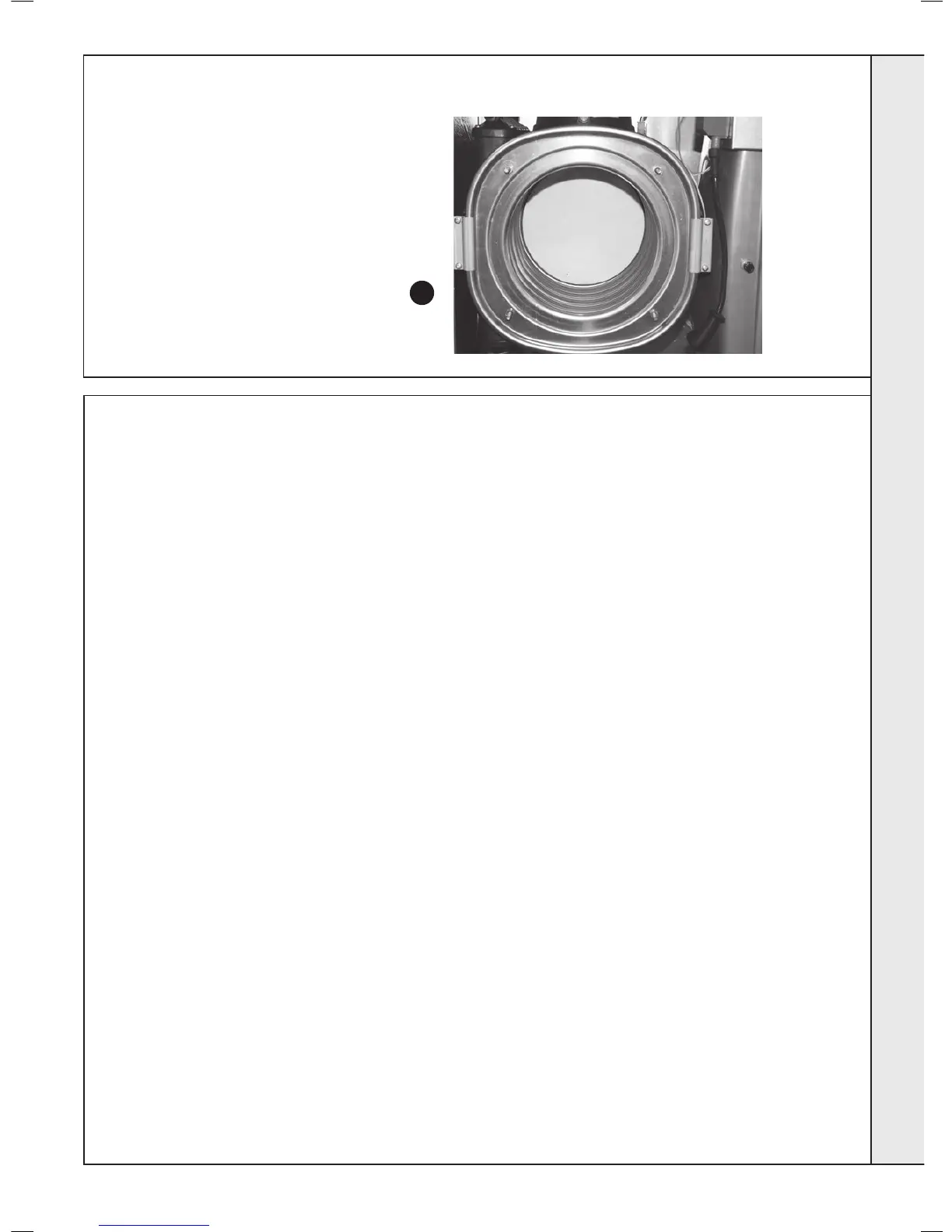

CLEANING THE HEAT EXCHANGER
52
RE-ASSEMBLY
1. 1. Remove Fan and Venturi Assembly, Refer to
Frame 47.
2. Once the front of the heat exchanger is open,
the heat exchanger may be cleaned with a
hand brush and vacuum cleaner to remove any
debris.
2
1. Reassemble the boiler in the following order:
2. Ensure the condensate trap is engaged in the base of the
boiler and connected to the outlet with the pipe from the heat
exchanger connected.
3. Ret the fan to the burner assembly. Refer to Frame 47.
4. Ret the venturi to the fan and burner assembly. Refer to Frame
47.
5. Ret the burner/fan/venturi assembly into the heat exchanger
and secure. Refer to Frame 47.
6. Ret the gas pipe/injector assembly and secure with the 2 clips.
Refer to Frame 47.
7. Reconnect the ignition/detection/earth/fan leads
8. Swing the control panel back into its working position. Refer to
Frame 46.
9. Ret the front panel ensuring that a good seal is made. Refer to
Frame 45.
10. Turn on the gas supply at the gas service cock. Refer to Frame
32.
11. Reconnect the electrical supply.
12. Check the operation of the boiler.
SERVICING
