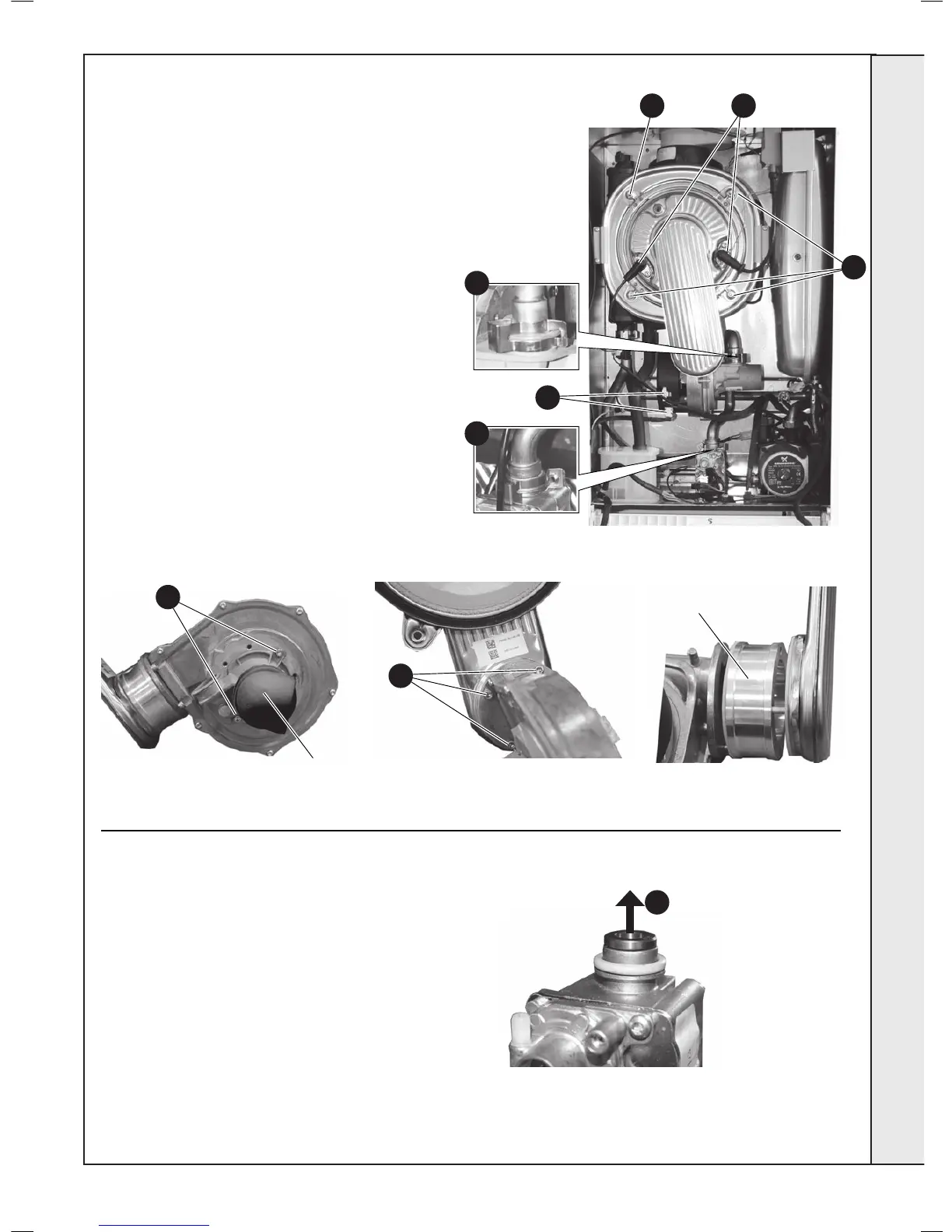

47 FAN AND VENTURI ASSEMBLY REMOVAL AND CLEANING
1. Refer to Frame 449 & 45.
2. Remove the ignition, detection and earth leads.
3. Remove the 2 clips securing the gas inlet pipe
and remove the pipe.
4. Remove the fan leads.
5. Remove the 4 securing nuts retaining the burner/
fan assembly.
6. Remove the assembly from the heat exchanger.
7. To remove the venturi release the 2 securing
screws to gain access for cleaning.
8. When replacing check the sealing gasket is
undamaged or replace as necessary, and secure
with the 2 screws.
*Note a noise damper is tted to the venturi inlet
on s32 models only.
9. To remove the fan, rst remove the venturi as
above and release the 3 screws securing the fan
to the burner. (Note a mounting spacer is tted to
the fan outlet on the s32 model only)
10. Remove the fan from the burner assembly. When
replacing check the sealing gasket is undamaged
or replace as necessary, and secure with the 3
screws.
2
3
3
4
7
Noise Damper
Fitted on s32 models only
Mounting Spacer
Fitted on s32
models only
9
5
5
48 REMOVAL OF INJECTOR
1. Refer to Frames 45 & 46.
2. Refer to Frame 53.
3. Remove the 2 clips securing the gas inlet pipe and
remove the pipe (as point 3 above).
4. Carefully ease the injector out of the gas valve.
5. Examine or clean as necessary
6. Re-t in reverse order ensuring the sealing o ring is in
good condition or replace if necessary.
7. Ret the gas pipe ensuring the seals are in good
condition and correctly located & secure with clips.
