IDTECK iTDC EIO8 - TCP;IP Serial and Optional Settings

15
※ iTDC Quick Installation Guide
Mar.11.2010
Column Name
Setting Value
Speed
9600
DataBit
8
Parity
None
Stop Bit
1
Flow
CTS/RTS

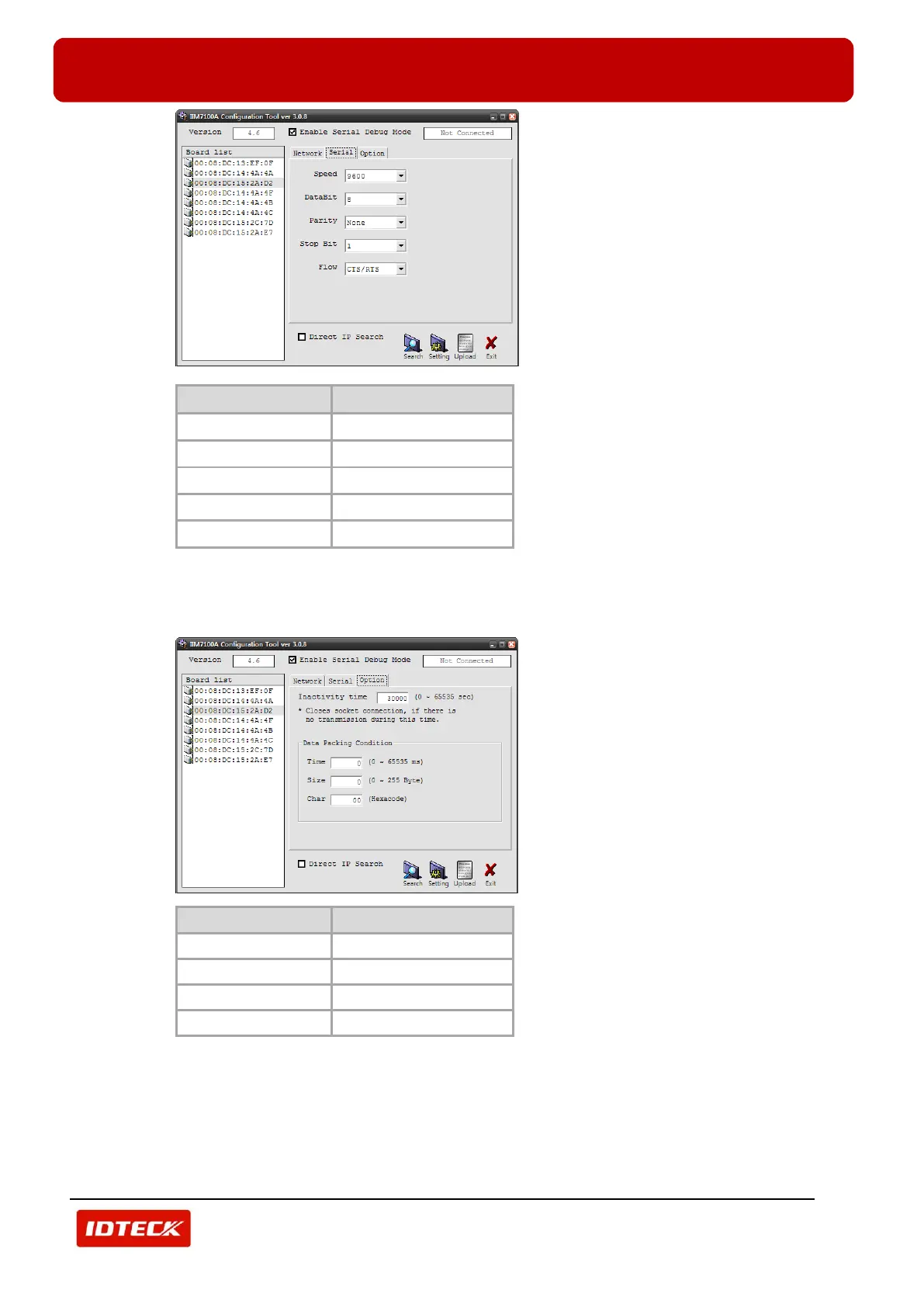

7) Select ‘Option’ tab.
Select option values (‘Inactivity Time’, ‘Time’, ‘Size’ and ‘Char’ ) of selected TCP/IP module.
Select ‘30000’ for ‘Inactivity Time’, ‘0’ for ‘Time’, ‘0’ for ‘Size’, ‘00’ for ‘Char’. Refer to table below.
Column Name
Setting Value
Inactivity Time
30000
Time
0
Size
0
Char
00
8) If all setting process is completed, click ‘Setting’ to apply network information to TCP/IP module.
After setting is completed, ‘Complete Setting’ message is displayed. Click ‘OK’ and finish setting
process.
