※ iTDC Quick Installation Guide
Mar.11.2010
1.3 LAYOUT TO CONTROL 4 DOORS

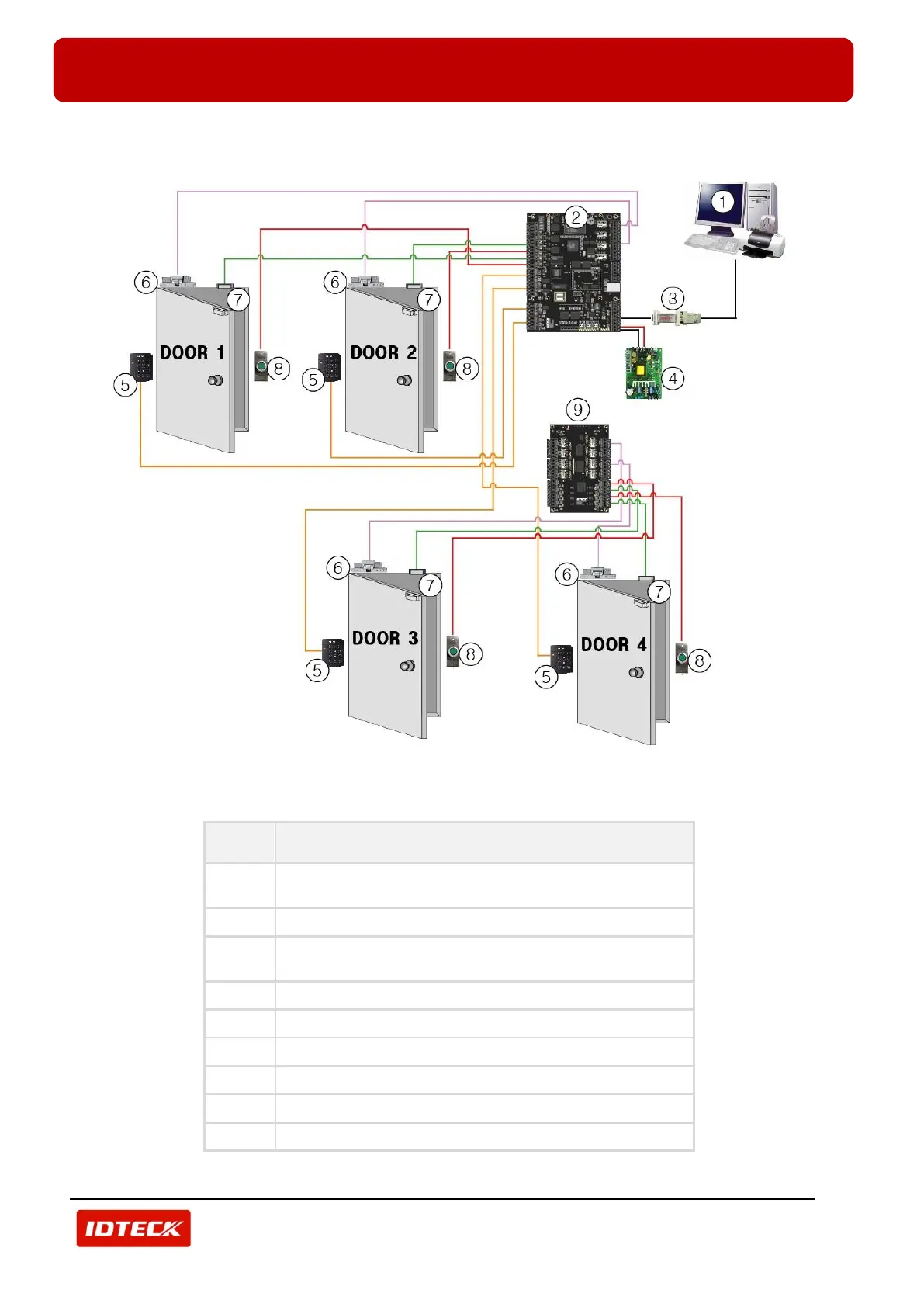

The figure below is iTDC/iTDC-SR installation layout to control 4 doors. (Attach EIO88)
(Figure: iTDC/iTDC-SR Installation Layout to Control 4 Doors)
No
Code
①
PC for installing application software, STARWATCH
iTDC PRO I, II, STARWATCH STANDARD
②
iTDC or iTDC-SR
③
RS232/RS422 Converter
or TCP/IP Module (IIM7100A)
④
Power
⑤
Reader
⑥
Door Lock
⑦
Door Contact
⑧
Exit Button
⑨
EIO88
