2 - TECHNICAL INFORMATION KID 70
GB
2 - Pag. 3 / 16

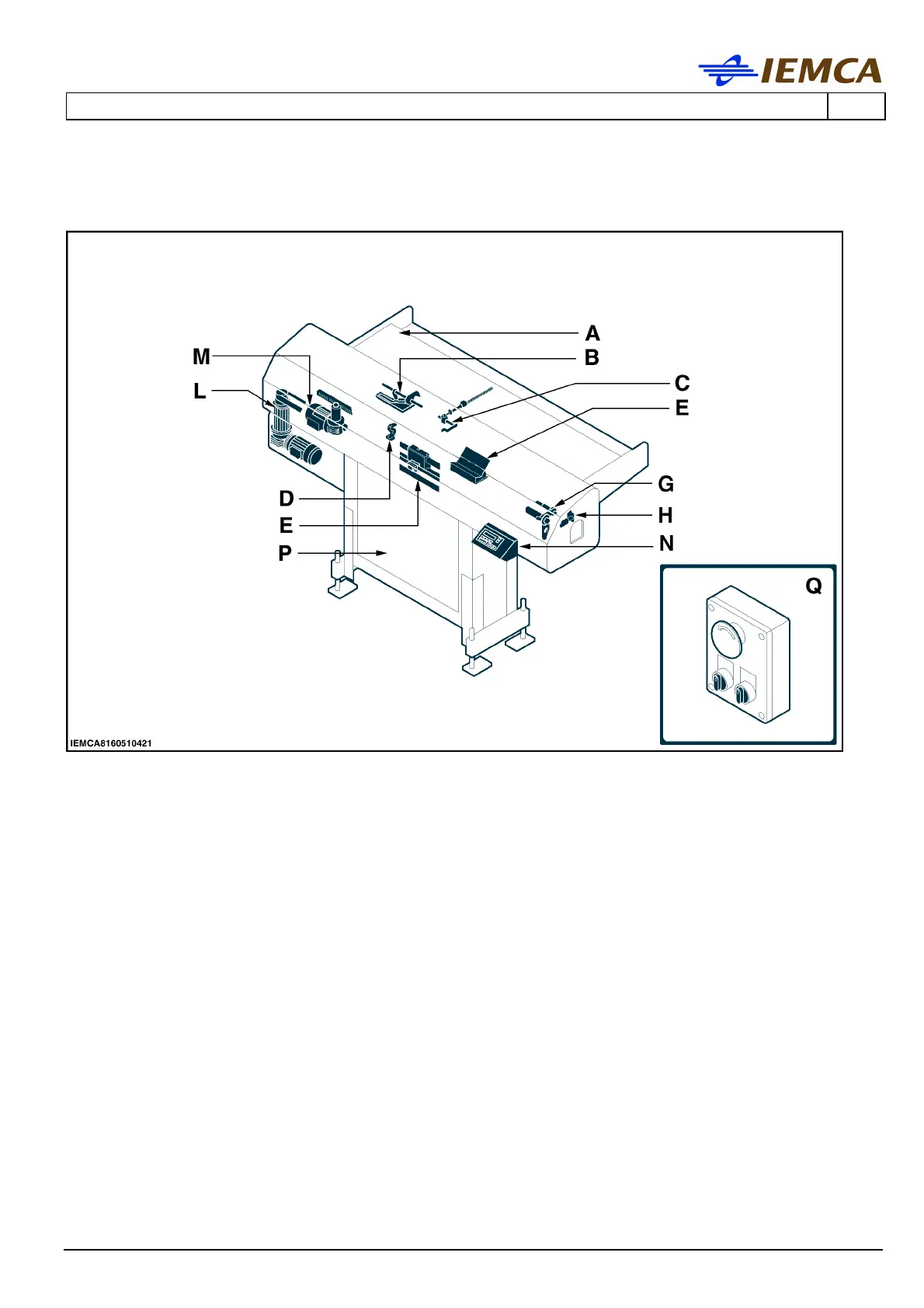

2.1.1 MAIN COMPONENTS
A Magazine; it contains bars to be loaded.
B Bar selecting device; it takes the first bar out of the magazine and lays on the "bar drop
control device".
C Bar limit stop device; it regulated correctly the position of the first bar inside the magazine,
before it is lifted by the bar selecting device.
D Bar drop control unit; this device lays the bar onto the guide channel.
E Guide channel; this device drives the bar and introduces it correctly into the lathe.
F Truck; this device introduces the bar into the lathe.
G Bar pusher; this device pushes the bar inside the lathe until it has been completely
machined.
L Bar feeding motor; thanks to a toothed belt, motions are transmitted to the truck and to the
bar pusher.
M Cam drive unit; it starts the cams of bar selecting and bar drop control devices as well as
the bar limit stop cams.
N Side keyboard; thanks to this keyboard it is possible to set up programming and to start bar
feeder working phases.
P Electric cabinet; it contains the electric control panel.
Q Remote control; this device allows the operator to control operations remotely in manual
mode.
